HU30R-QRPTQ (1977)
Toyota Dyna
Production
Aug 1977
-
Aug 1979
Engine
H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8408)TW1

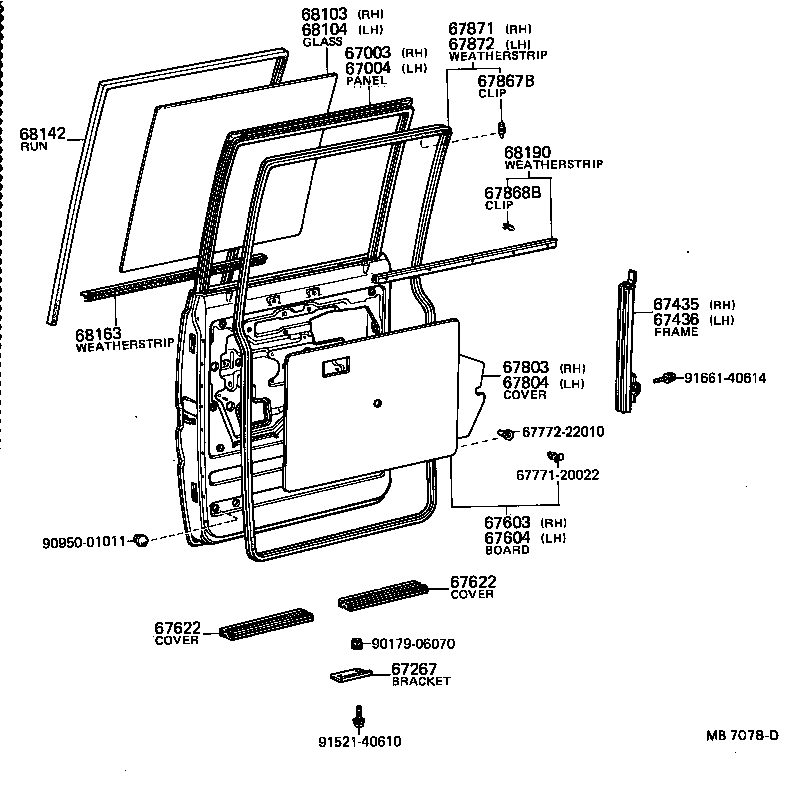

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-95400 |
BU32,HU30,RU20,30..TW1 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-95400 |
BU32,HU30,RU20,30..TW1 |
1 | ||
| 67267 - BRACKET, DOOR INSIDE PANEL, LOWER | ||||
| 67311-95A00 |
BU32,HU30,RU20,30..TW1 |
2 | ||
| 67435 - FRAME, REAR DOOR WINDOW LOWER, RH | ||||
| 67403-95A00 |
BU32,HU30,RU20,30..TW1 |
1 | ||
| 67436 - FRAME, REAR DOOR WINDOW, LOWER LH | ||||
| 67404-95A00 |
BU32,HU30,RU20,30..TW1 |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-95400 |
HU30,RU20,30..TW1 |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-95400 |
HU30,RU20,30..TW1 |
1 | ||
| 67622 - COVER, REAR DOOR INSIDE PANEL LOWER HOLE | ||||
| 67835-95A00 |
BU32,HU30,RU20,30..TW1 |
4 | ||
| 67622 - COVER, REAR DOOR INSIDE PANEL LOWER HOLE | ||||
| 67835-95A00 |
BU32,HU30,RU20,30..TW1 |
4 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67832-95A00 |
BU32,HU30,RU20,30..TW1 |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67832-95A00 |
BU32,HU30,RU20,30..TW1 |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-95401 |
BU32,HU30,RU20,30..TW1 WHITE |
54 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-08071 |
BU32,HU30,RU20,30..TW1 |
6 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67863-95402 |
BU32,HU30,RU20,30..TW1 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67864-95402 |
BU32,HU30,RU20,30..TW1 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-95400 |
BU32,HU30,RU20,30..TW1 *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68113-95400 |
BU32,HU30,RU20,30..TW1 *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-95A00 |
BU32,HU30,RU20,30..TW1 |
2 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68180-95400 |
BU32,HU30,RU20,30..TW1 |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-95400 |
BU32,HU30,RU20,30..TW1 |
2 | ||
| Common parts | ||||
| 67771-20022 | ||||
| 67772-22010 | ||||
| 90179-06070 | ||||
| 90950-01011 | ||||
| 91521-40610 | ||||
| 91661-40614 | ||||
