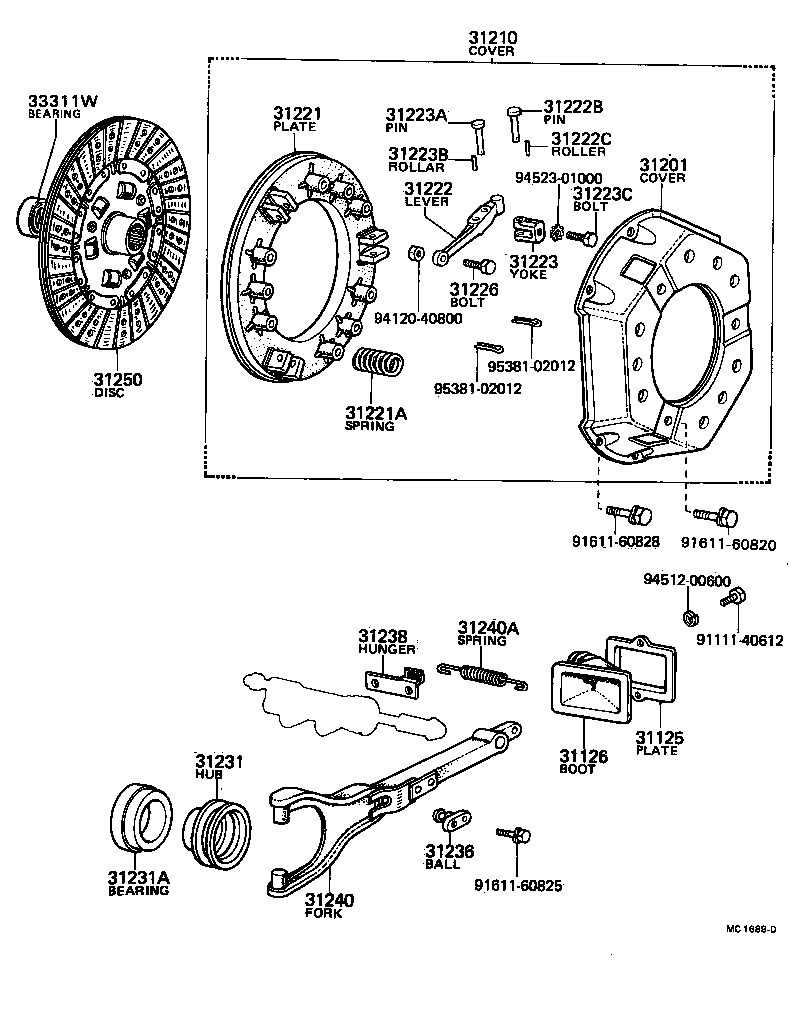

HU30L-QRDT (1977)
Toyota Dyna
(7708-8104)HU30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31125 - PLATE, RELEASE FORK BOOT | ||||
| 31125-36020 |
HU30 |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20050 |
BU2#,3#,40,RU2#,30 |
1 | ||
| 31126-55020 |
HU30 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39095 |
BU2#,30 |
1 | ||
| 31201-39085 |
BU2#,30 |
1 | ||
| 31201-39075 |
RU2#,30 |
1 | ||
| 31201-39096 |
BU2#,30 |
1 | ||
| 31201-39097 |
BU2#,30 |
1 | ||
| 31201-39076 |
RU2#,30 |
1 | ||
| 31201-61010 |
HU30 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-36080 |
RU2#,30 |
1 | ||
| 31210-36081 |
RU2#,30 |
1 | ||
| 31210-36072 |
BU2#,30 |
1 | ||
| 31210-36071 |
BU2#,30 |
1 | ||
| 31210-36041 |
HU30 |
1 | ||
| 31210-36060 |
BU2#,30 |
1 | ||
| 31210-36070 |
BU2#,30 |
1 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39075 |
BU2#,30 |
1 | ||
| 31221-36041 |
HU30 |
1 | ||
| 31221-39065 |
RU2#,30 |
1 | ||
| 31221-39085 |
BU2#,30 |
1 | ||
| 31221A - SPRING, COMPRESSION(FOR CLUTCH) | ||||
| 90501-50047 |
HU30 |
9 | ||
| 31222 - LEVER, CLUTCH PRESSURE | ||||
| 31222-55020 |
HU30 |
3 | ||
| 31222B - PIN, W/HOLE(FOR CLUTCH PRESSURE LEVER) | ||||
| 90240-08011 |
HU30 |
3 | ||
| 31222C - ROLLER OR BEARING, CLUTCH PRESSURE PLATE PIN | ||||
| 90361-02057 |
HU30 |
45 | ||
| 31223 - YOKE, CLUTCH RELEASE LEVER | ||||
| 31223-55040 |
HU30 |
3 | ||
| 31223A - PIN(FOR CLUTCH PRESSURE LEVER) | ||||
| 90249-06003 |
HU30 |
3 | ||
| 31223B - ROLLER, CLUTCH PRESSURE LEVER | ||||
| 90361-06020 |
HU30 |
3 | ||
| 31223C - BOLT, HEXAGON(FOR CLUTCH RELEASE LEVER YOKE) | ||||
| 90101-10077 |
HU30 |
3 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90106-08005 |
HU30 |
3 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-36060 |
BU2#,30 |
1 | ||
| 31231-30060 |
RU2#,30 |
1 | ||
| 31231-36061 |
BU2#,30 |
1 | ||
| 31231-30061 |
RU2#,30 |
1 | ||
| 31231-65010 |
HU30 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40008 |
RU2#,30 |
1 | ||
| 90363-40001 |
RU2#,30 |
1 | ||
| 90363-40001 |
RU2#,30 |
1 | ||
| 90363-52018 |
HU30 |
1 | ||
| 90363-45001 |
BU2#,3# |
1 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-55010 |
HU30 |
1 | ||
| 31236-30030 |
BU2#,30,RU2#,30 |
1 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-60041 |
HU30 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-36030 |
BU2#,30 |
1 | ||
| 31204-55020 |
HU30 |
1 | ||
| 31204-20020 |
RU2#,30 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16004 |
BU2#,3#,40,JU20,RU2#,30 |
1 | ||
| 90506-16475 |
HU30,40,50,WU40,50 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-36130 |
RU2#,30 |
1 | ||
| 31250-36111 |
BU2#,30 |
1 | ||
| 31250-36112 |
BU2#,30 |
1 | ||
| 31250-36110 |
BU2#,30 |
1 | ||
| 31250-36120 |
HU30 |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97143-06201 |
BU2#,30,JU20,RU2#,30 6201 VV C3 |
1 | ||
| 97143-06201 |
BU2#,30 6201 VV C3 |
1 | ||
| 97120-06202 |
HU30 6202 ZZ |
1 | ||
| Common parts | ||||
| 91111-40612 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60828 | ||||
| 94120-40800 | ||||
| 94512-00600 | ||||
| 94523-01000 | ||||
| 95381-02012 | ||||
(7708- )BU2#,3#,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20050 |
BU2#,3#,40,RU2#,30 |
1 | ||
| 31126-55020 |
HU30 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39095 |
BU2#,30 |
1 | ||
| 31201-39085 |
BU2#,30 |
1 | ||
| 31201-39075 |
RU2#,30 |
1 | ||
| 31201-39096 |
BU2#,30 |
1 | ||
| 31201-39097 |
BU2#,30 |
1 | ||
| 31201-39076 |
RU2#,30 |
1 | ||
| 31201-61010 |
HU30 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-36081 |
RU2#,30 |
1 | ||
| 31210-36072 |
BU2#,30 |
1 | ||
| 31210-36071 |
BU2#,30 |
1 | ||
| 31210-36041 |
HU30 |
1 | ||
| 31210-36060 |
BU2#,30 |
1 | ||
| 31210-36080 |
RU2#,30 |
1 | ||
| 31210-36070 |
BU2#,30 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
JU20,RU2#,30 |
3 | ||
| 31216-36010 |
BU2#,3#,40 |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
JU20,RU2#,30 |
3 | ||
| 31216-36010 |
BU2#,3#,40 |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39075 |
BU2#,30 |
1 | ||
| 31221-36041 |
HU30 |
1 | ||
| 31221-39065 |
RU2#,30 |
1 | ||
| 31221-39085 |
BU2#,30 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-36060 |
BU2#,30 |
1 | ||
| 31231-30060 |
RU2#,30 |
1 | ||
| 31231-36061 |
BU2#,30 |
1 | ||
| 31231-30061 |
RU2#,30 |
1 | ||
| 31231-65010 |
HU30 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40008 |
RU2#,30 |
1 | ||
| 90363-40001 |
RU2#,30 |
1 | ||
| 90363-40001 |
RU2#,30 |
1 | ||
| 90363-52018 |
HU30 |
1 | ||
| 90363-45001 |
BU2#,3# |
1 | ||
| 31231B - RING, SNAP(FOR CLUTCH RELEASE HUB) | ||||
| 96152-00450 |
BU2#,30 |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30020 |
RU2#,30 |
2 | ||
| 31232-30010 |
BU2#,3#,40,JU20 |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-55010 |
HU30 |
1 | ||
| 31236-30030 |
BU2#,30,RU2#,30 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-36030 |
BU2#,30 |
1 | ||
| 31204-55020 |
HU30 |
1 | ||
| 31204-20020 |
RU2#,30 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16004 |
BU2#,3#,40,JU20,RU2#,30 |
1 | ||
| 90506-16475 |
HU30,40,50,WU40,50 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-36130 |
RU2#,30 |
1 | ||
| 31250-36111 |
BU2#,30 |
1 | ||
| 31250-36112 |
BU2#,30 |
1 | ||
| 31250-36110 |
BU2#,30 |
1 | ||
| 31250-36120 |
HU30 |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97143-06201 |
BU2#,30,JU20,RU2#,30 6201 VV C3 |
1 | ||
| 97143-06201 |
BU2#,30 6201 VV C3 |
1 | ||
| 97120-06202 |
HU30 6202 ZZ |
1 | ||
| Common parts | ||||
| 90109-08081 | ||||
| 90119-08134 | ||||
| 90170-08197 | ||||
| 90201-08567 | ||||
| 94511-00800 | ||||
(7708-8408)RU2#,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20050 |
BU2#,3#,40,RU2#,30 |
1 | ||
| 31126-55020 |
HU30 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39095 |
BU2#,30 |
1 | ||
| 31201-39085 |
BU2#,30 |
1 | ||
| 31201-39075 |
RU2#,30 |
1 | ||
| 31201-39096 |
BU2#,30 |
1 | ||
| 31201-39097 |
BU2#,30 |
1 | ||
| 31201-39076 |
RU2#,30 |
1 | ||
| 31201-61010 |
HU30 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-36080 |
RU2#,30 |
1 | ||
| 31210-36081 |
RU2#,30 |
1 | ||
| 31210-36072 |
BU2#,30 |
1 | ||
| 31210-36071 |
BU2#,30 |
1 | ||
| 31210-36041 |
HU30 |
1 | ||
| 31210-36060 |
BU2#,30 |
1 | ||
| 31210-36070 |
BU2#,30 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
JU20,RU2#,30 |
3 | ||
| 31216-36010 |
BU2#,3#,40 |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
JU20,RU2#,30 |
3 | ||
| 31216-36010 |
BU2#,3#,40 |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39075 |
BU2#,30 |
1 | ||
| 31221-36041 |
HU30 |
1 | ||
| 31221-39065 |
RU2#,30 |
1 | ||
| 31221-39085 |
BU2#,30 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-36060 |
BU2#,30 |
1 | ||
| 31231-30060 |
RU2#,30 |
1 | ||
| 31231-36061 |
BU2#,30 |
1 | ||
| 31231-30061 |
RU2#,30 |
1 | ||
| 31231-65010 |
HU30 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40008 |
RU2#,30 |
1 | ||
| 90363-40001 |
RU2#,30 |
1 | ||
| 90363-40001 |
RU2#,30 |
1 | ||
| 90363-52018 |
HU30 |
1 | ||
| 90363-45001 |
BU2#,3# |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30020 |
RU2#,30 |
2 | ||
| 31232-30010 |
BU2#,3#,40,JU20 |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-55010 |
HU30 |
1 | ||
| 31236-30030 |
BU2#,30,RU2#,30 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-36030 |
BU2#,30 |
1 | ||
| 31204-55020 |
HU30 |
1 | ||
| 31204-20020 |
RU2#,30 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16004 |
BU2#,3#,40,JU20,RU2#,30 |
1 | ||
| 90506-16475 |
HU30,40,50,WU40,50 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-36130 |
RU2#,30 |
1 | ||
| 31250-36111 |
BU2#,30 |
1 | ||
| 31250-36112 |
BU2#,30 |
1 | ||
| 31250-36110 |
BU2#,30 |
1 | ||
| 31250-36120 |
HU30 |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97143-06201 |
BU2#,30,JU20,RU2#,30 6201 VV C3 |
1 | ||
| 97143-06201 |
BU2#,30 6201 VV C3 |
1 | ||
| 97120-06202 |
HU30 6202 ZZ |
1 | ||
| Common parts | ||||
| 90101-08350 | ||||
| 90159-60139 | ||||
| 90170-08197 | ||||
| 91611-60816 | ||||
| 94512-00800 | ||||
