HU30L-MRDT3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1981
Engine H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU20,30..T3..WT ; (7708- )BU23,25,31,32,36,HU30,RU2#,30..WT

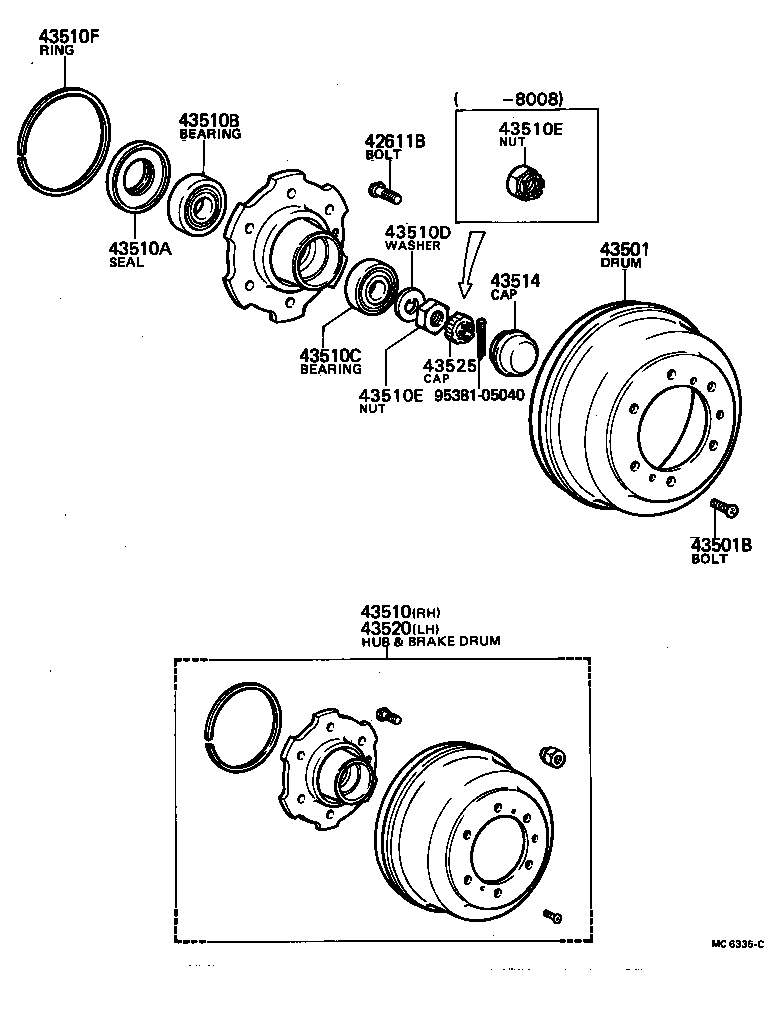

Click highlighted areas on diagram

diagram 42611B 43501 43510 43510A 43510B 43510C 43510D 43510E 43510E 43514 43520 43525 9017020005 9411571600 9538105040
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02040

BU2#,30,HU30,RU2#,30..WT

LH

 6
90942-02039

BU2#,30,HU30,RU2#,30..WT

RH

 6
43501 - DRUM SUB-ASSY, FRONT BRAKE
43512-36030

BU2#,30,HU30,RU2#,30..WT

 2
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-36060

BU2#,30,HU30,RU2#,30..WT

 1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

BU2#,3#,HU30,JU20,RU2#,30

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

BU2#,3#,HU30,JU20,RU2#,30

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

BU2#,3#,HU30,JU20,RU2#,30

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

BU2#,3#,HU30,JU20,RU2#,30

 2
43510E - NUT (FOR STEERING KNUCKLE)
90171-26001

BU2#,30,HU30,JU20,RU2#,30

 2
43510E - NUT (FOR STEERING KNUCKLE)
90171-26001

BU2#,30,HU30,JU20,RU2#,30

 2
43514 - CAP, FRONT HUB GREASE
43514-36030

BU2#,3#,HU30,JU20,RU2#,30

 2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520-36060

BU2#,30,HU30,RU2#,30..WT

 1
Common parts
90170-20005
94115-71600
95381-05040

(7708- )BU20..BUS ; (7708- )BU20..T3..ST ;(7708- )JU20,RU20..ST ; (7708-

Click highlighted areas on diagram

diagram 42611B 43501 43501B 43510 43510A 43510B 43510C 43510D 43510E 43510E 43510F 43514 43520 43525 9538105040
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02040

BU2#,30,HU30,RU2#,30..WT

LH

 6
90942-02039

BU2#,30,HU30,RU2#,30..WT

RH

 6
43501 - DRUM SUB-ASSY, FRONT BRAKE
43512-36030

BU2#,30,HU30,RU2#,30..WT

 2
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-36060

BU2#,30,HU30,RU2#,30..WT

 1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

BU2#,3#,HU30,JU20,RU2#,30

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

BU2#,3#,HU30,JU20,RU2#,30

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

BU2#,3#,HU30,JU20,RU2#,30

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

BU2#,3#,HU30,JU20,RU2#,30

 2
43510E - NUT (FOR STEERING KNUCKLE)
90171-26001

BU2#,30,HU30,JU20,RU2#,30

 2
43510E - NUT (FOR STEERING KNUCKLE)
90171-26001

BU2#,30,HU30,JU20,RU2#,30

 2
43514 - CAP, FRONT HUB GREASE
43514-36030

BU2#,3#,HU30,JU20,RU2#,30

 2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520-36060

BU2#,30,HU30,RU2#,30..WT

 1
Common parts
95381-05040
