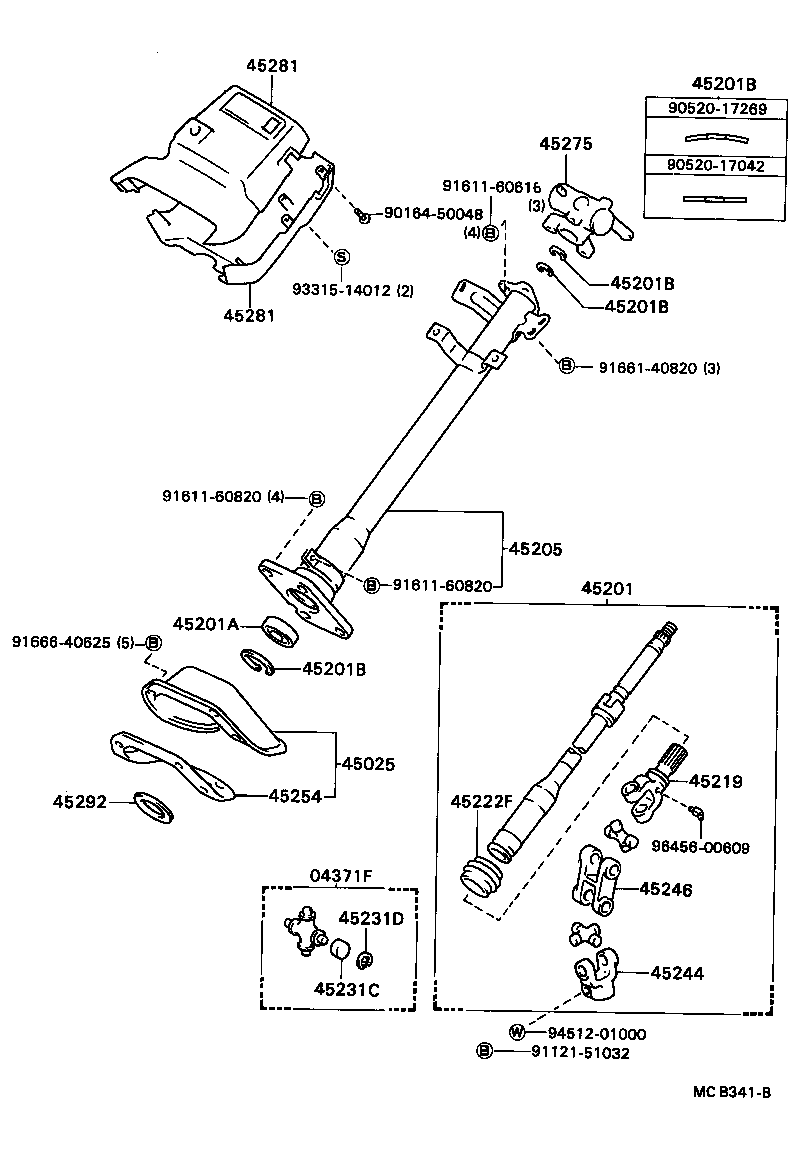

BU85R-MDDHTQ3 (1984)
Toyota Dyna
(8409- )BU75,76,85,86
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
BU75,76,85,86 |
2 | ||
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-36130 |
BU75,76,85,86..RHD..(CBU,IV3) W/POWER TAKE-OFF |
1 | ||
| 45025-36110 |
BU75,76,85,86..RHD |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-36020 |
BU75,76,85,86 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-35003 |
BU75,76,85,86 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-36150 |
BU75,76,85,86..RHD |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-36011 |
BU75,76,85,86 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-36011 |
BU75,76,85,86 |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
BU75,76,85,86 |
8 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22011 |
BU75,76,85,86 T=1.2 |
8 | ||
| 90521-22013 |
BU75,76,85,86 T=1.30 |
8 | ||
| 90521-22012 |
BU75,76,85,86 T=1.25 |
8 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
BU75,76,85,86 |
1 | ||
| 45246 - YOKE, STEERING INTERMEDIATE | ||||
| 45246-36050 |
BU75,76,85,86 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-36070 |
BU75,76,85,86..RHD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36160 |
BU6#,7#,8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3670003 |
BU75,76,85,86..RHD UPR,SHADOW GRAY |
1 | ||
| 45287-3620003 |
BU75,76,85,86..RHD LWR,SHADOW GRAY |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3670003 |
BU75,76,85,86..RHD UPR,SHADOW GRAY |
1 | ||
| 45287-3620003 |
BU75,76,85,86..RHD LWR,SHADOW GRAY |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-36020 |
BU75,76,85,86 |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90520-17042 | ||||
| 90520-17269 | ||||
| 91121-51032 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91661-40820 | ||||
| 91666-40625 | ||||
| 93315-14012 | ||||
| 94512-01000 | ||||
| 96456-00609 | ||||

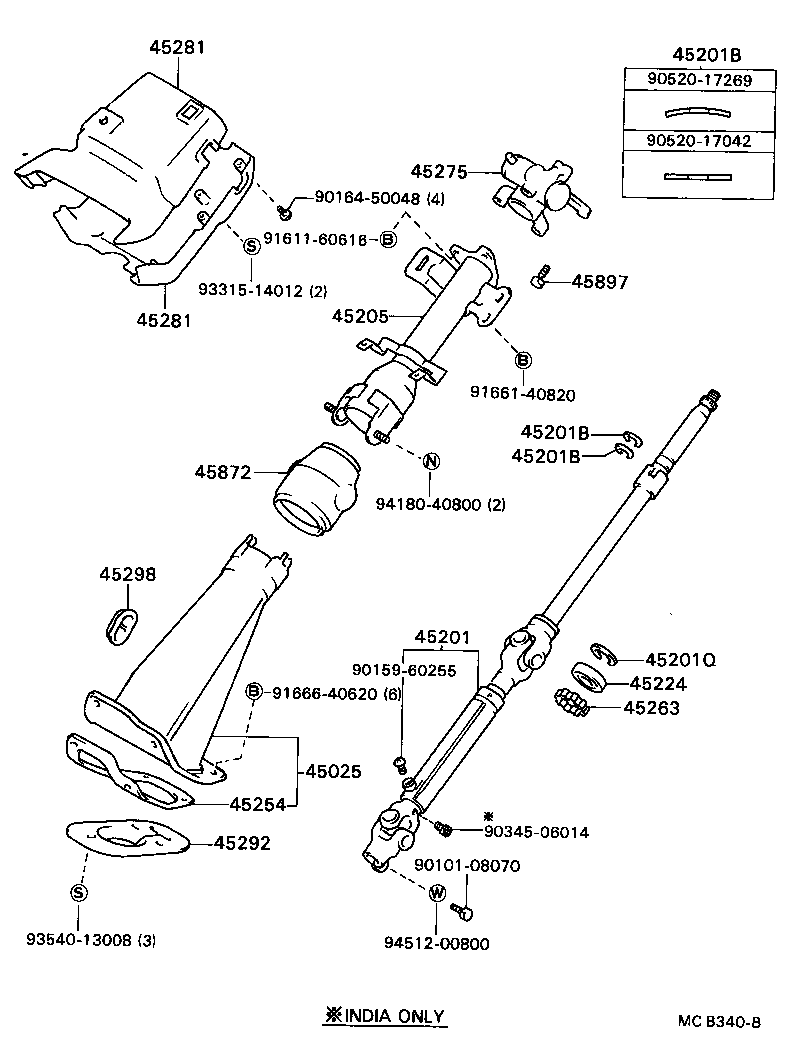

(8409- )YU6#,7#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-36130 |
BU75,76,85,86..RHD..(CBU,IV3) W/POWER TAKE-OFF |
1 | ||
| 45025-36110 |
BU75,76,85,86..RHD |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-36020 |
BU75,76,85,86 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-36150 |
BU75,76,85,86..RHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-36070 |
BU75,76,85,86..RHD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36160 |
BU6#,7#,8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3670003 |
BU75,76,85,86..RHD UPR,SHADOW GRAY |
1 | ||
| 45287-3620003 |
BU75,76,85,86..RHD LWR,SHADOW GRAY |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3670003 |
BU75,76,85,86..RHD UPR,SHADOW GRAY |
1 | ||
| 45287-3620003 |
BU75,76,85,86..RHD LWR,SHADOW GRAY |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-36020 |
BU75,76,85,86 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90159-60255 | ||||
| 90164-50048 | ||||
| 90345-06014 | ||||
| 90520-17042 | ||||
| 90520-17269 | ||||
| 91611-60616 | ||||
| 91661-40820 | ||||
| 91666-40620 | ||||
| 93315-14012 | ||||
| 93540-13008 | ||||
| 94180-40800 | ||||
| 94512-00800 | ||||
(8409- )RU75,85,WU9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
BU75,76,85,86 |
2 | ||
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-36130 |
BU75,76,85,86..RHD..(CBU,IV3) W/POWER TAKE-OFF |
1 | ||
| 45025-36110 |
BU75,76,85,86..RHD |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-36020 |
BU75,76,85,86 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-35003 |
BU75,76,85,86 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-59001 |
BU75,76,85,86 LWR BERING |
1 | ||
| 90520-17269 |
BU75,76,85,86 T=1.20,UPR BEARING,UPR |
1 | ||
| 90520-17042 |
BU75,76,85,86 T=1.20,UPR BEARING,LWR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-36150 |
BU75,76,85,86..RHD |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-36011 |
BU75,76,85,86 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-36011 |
BU75,76,85,86 |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
BU75,76,85,86 |
8 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22011 |
BU75,76,85,86 T=1.2 |
8 | ||
| 90521-22013 |
BU75,76,85,86 T=1.30 |
8 | ||
| 90521-22012 |
BU75,76,85,86 T=1.25 |
8 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
BU75,76,85,86 |
1 | ||
| 45246 - YOKE, STEERING INTERMEDIATE | ||||
| 45246-36050 |
BU75,76,85,86 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-36070 |
BU75,76,85,86..RHD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36160 |
BU6#,7#,8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3670003 |
BU75,76,85,86..RHD UPR,SHADOW GRAY |
1 | ||
| 45287-3620003 |
BU75,76,85,86..RHD LWR,SHADOW GRAY |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3670003 |
BU75,76,85,86..RHD UPR,SHADOW GRAY |
1 | ||
| 45287-3620003 |
BU75,76,85,86..RHD LWR,SHADOW GRAY |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-36020 |
BU75,76,85,86 |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90520-17042 | ||||
| 90520-17269 | ||||
| 91121-51032 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91661-40820 | ||||
| 91666-40625 | ||||
| 93315-14012 | ||||
| 94512-01000 | ||||
| 96456-00609 | ||||
