BU85R-MDDHT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU75,76,85..RHD

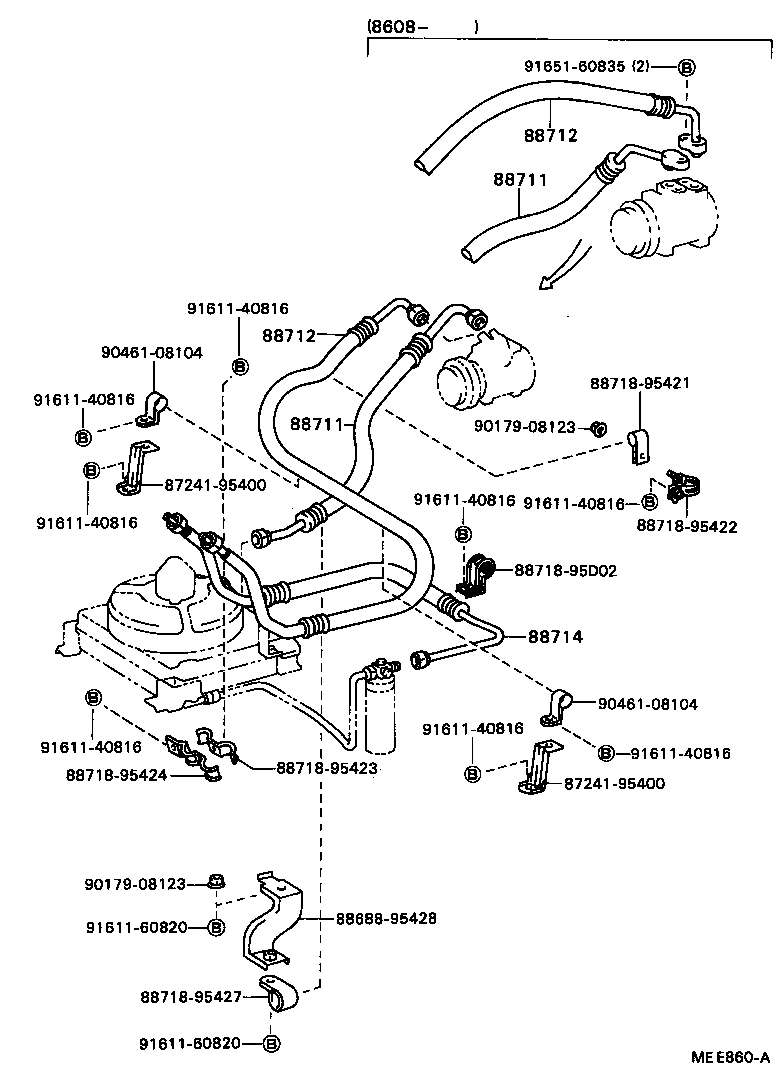

Click highlighted areas on diagram

diagram 8724195400 8724195400 8868895428 88711 88711 88712 88712 88714 8871895421 8871895422 8871895423 8871895424 8871895427 8871895D02 9017908123 9017908123 9046108104 9046108104 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161160820 9161160820 9165160835
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95410

BU75,76,85..ARL,GEN

 1
88711-95413

BU75,76,85..ARL,GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95410

BU75,76,85..ARL,GEN

 1
88711-95413

BU75,76,85..ARL,GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95412

BU75,76,85..RHD

 1
88712-95417

BU75,76,85..RHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95412

BU75,76,85..RHD

 1
88712-95417

BU75,76,85..RHD

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95409

BU75,76,85..RHD

 1
Common parts
87241-95400
88688-95428
88718-95421
88718-95422
88718-95423
88718-95424
88718-95427
88718-95D02
90179-08123
90461-08104
91611-40816
91611-60820
91651-60835

(8409- )BU75,76,85

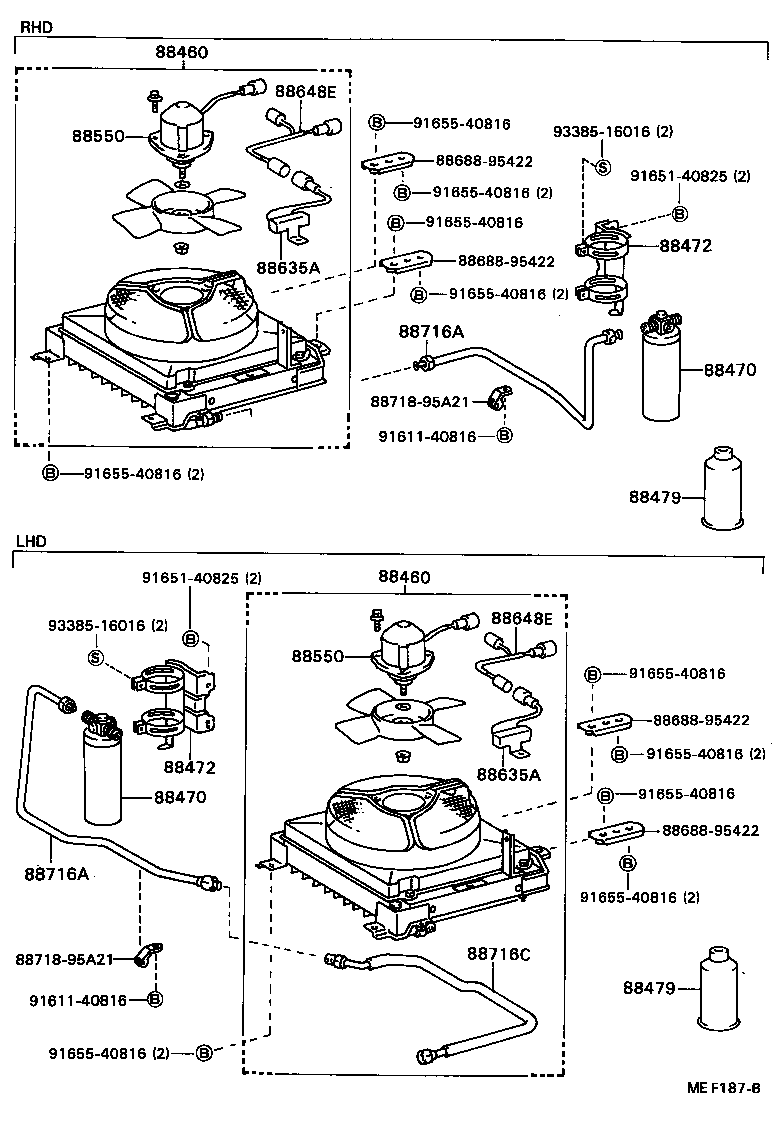

Click highlighted areas on diagram

diagram 88460 88460 88470 88470 88472 88472 88479 88479 88550 88550 88635A 88635A 88648E 88648E 8868895422 8868895422 8868895422 8868895422 88716A 88716A 88716C 8871895A21 8871895A21 9161140816 9161140816 9165140825 9165140825 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9338516016 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95408

BU75,76,85..RHD

 1
88460 - CONDENSER ASSY, COOLER
88460-95408

BU75,76,85..RHD

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401

BU75,76,85..ARL,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401

BU75,76,85..ARL,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95404

BU75,76,85..RHD

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95404

BU75,76,85..RHD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88648E - WIRING, COOLER
88648-95419

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88648E - WIRING, COOLER
88648-95419

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95407

BU75,76,85..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95407

BU75,76,85..RHD

 1
Common parts
88688-95422
88718-95A21
91611-40816
91651-40825
91655-40816
93385-16016

(8409- )YU6#,7#,8#

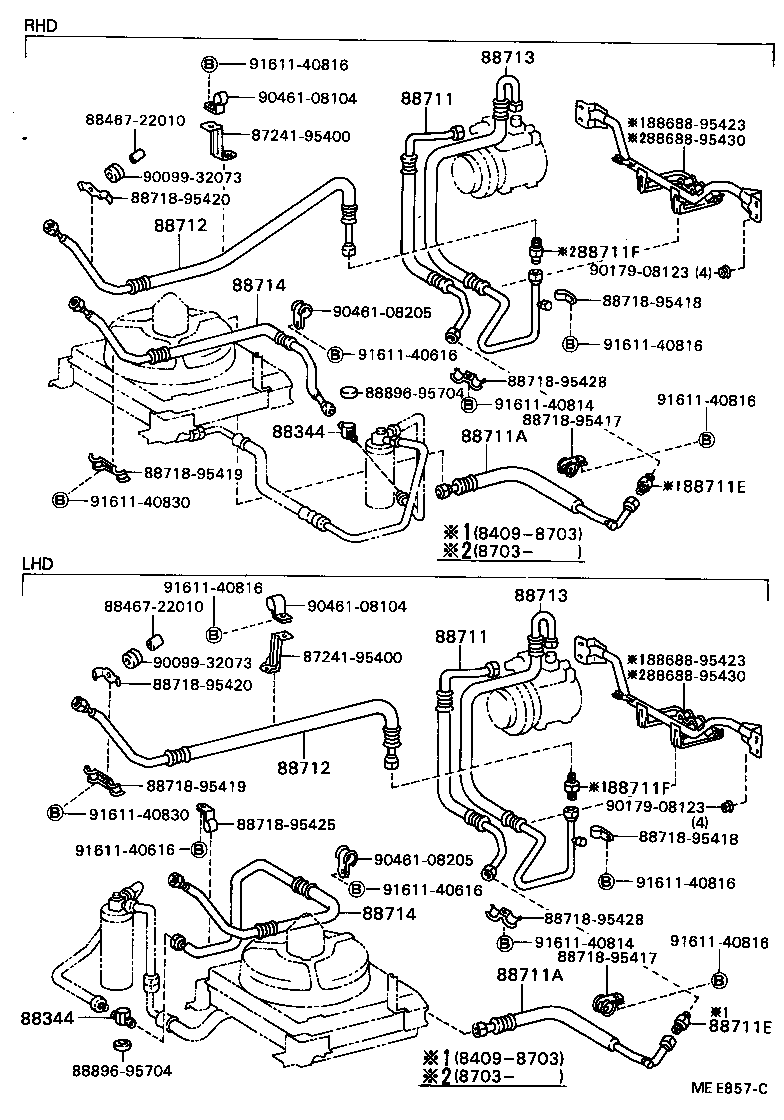

Click highlighted areas on diagram

diagram 8724195400 8724195400 88344 88344 8846722010 8846722010 8868895423 8868895423 8868895430 8868895430 88711 88711 88711A 88711A 88711E 88711E 88711F 88711F 88712 88712 88713 88713 88714 88714 8871895417 8871895417 8871895418 8871895418 8871895419 8871895419 8871895420 8871895420 8871895425 8871895428 8871895428 8889695704 8889695704 9009932073 9009932073 9017908123 9017908123 9046108104 9046108104 9046108205 9046108205 9161140616 9161140616 9161140616 9161140814 9161140814 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140830 9161140830
Part # Description Qty Price
Common parts
87241-95400
88467-22010
88688-95423
88688-95430
88718-95417
88718-95418
88718-95419
88718-95420
88718-95425
88718-95428
88896-95704
90099-32073
90179-08123
90461-08104
90461-08205
91611-40616
91611-40814
91611-40816
91611-40830

(8409- )YU6#,7#,8#

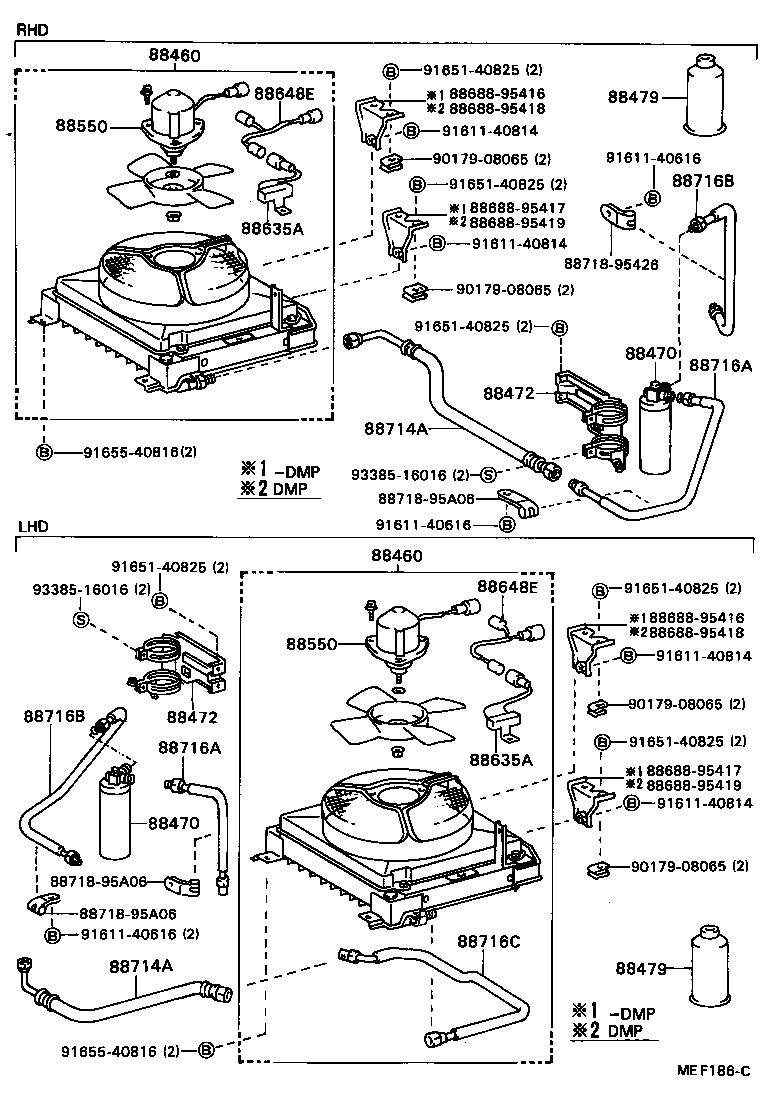

Click highlighted areas on diagram

diagram 88460 88460 88470 88470 88472 88472 88479 88479 88550 88550 88635A 88635A 88648E 88648E 8868895416 8868895416 8868895417 8868895417 8868895418 8868895418 8868895419 8868895419 88714A 88714A 88716A 88716A 88716B 88716B 88716C 8871895426 8871895A06 8871895A06 8871895A06 9017908065 9017908065 9017908065 9017908065 9161140616 9161140616 9161140616 9161140814 9161140814 9161140814 9161140814 9165140825 9165140825 9165140825 9165140825 9165140825 9165140825 9165540816 9165540816 9338516016 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95408

BU75,76,85..RHD

 1
88460 - CONDENSER ASSY, COOLER
88460-95408

BU75,76,85..RHD

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401

BU75,76,85..ARL,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401

BU75,76,85..ARL,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95404

BU75,76,85..RHD

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95404

BU75,76,85..RHD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88648E - WIRING, COOLER
88648-95419

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88648E - WIRING, COOLER
88648-95419

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95407

BU75,76,85..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95407

BU75,76,85..RHD

 1
Common parts
88688-95416
88688-95417
88688-95418
88688-95419
88718-95426
88718-95A06
90179-08065
91611-40616
91611-40814
91651-40825
91655-40816
93385-16016

(8409- )RU75,85,WU9#

Click highlighted areas on diagram

diagram 88460 88460 88470 88470 88472 88472 88479 88479 88550 88550 88635A 88635A 88648E 88648E 8868895422 8868895422 8868895422 8868895422 88716A 88716A 88716C 8871895A21 8871895A21 9161140816 9161140816 9165140825 9165140825 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9338516016 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95408

BU75,76,85..RHD

 1
88460 - CONDENSER ASSY, COOLER
88460-95408

BU75,76,85..RHD

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401

BU75,76,85..ARL,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401

BU75,76,85..ARL,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95404

BU75,76,85..RHD

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95404

BU75,76,85..RHD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88648E - WIRING, COOLER
88648-95419

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88648E - WIRING, COOLER
88648-95419

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95407

BU75,76,85..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95407

BU75,76,85..RHD

 1
Common parts
88688-95422
88718-95A21
91611-40816
91651-40825
91655-40816
93385-16016

(8409- )RU75,85..GEN

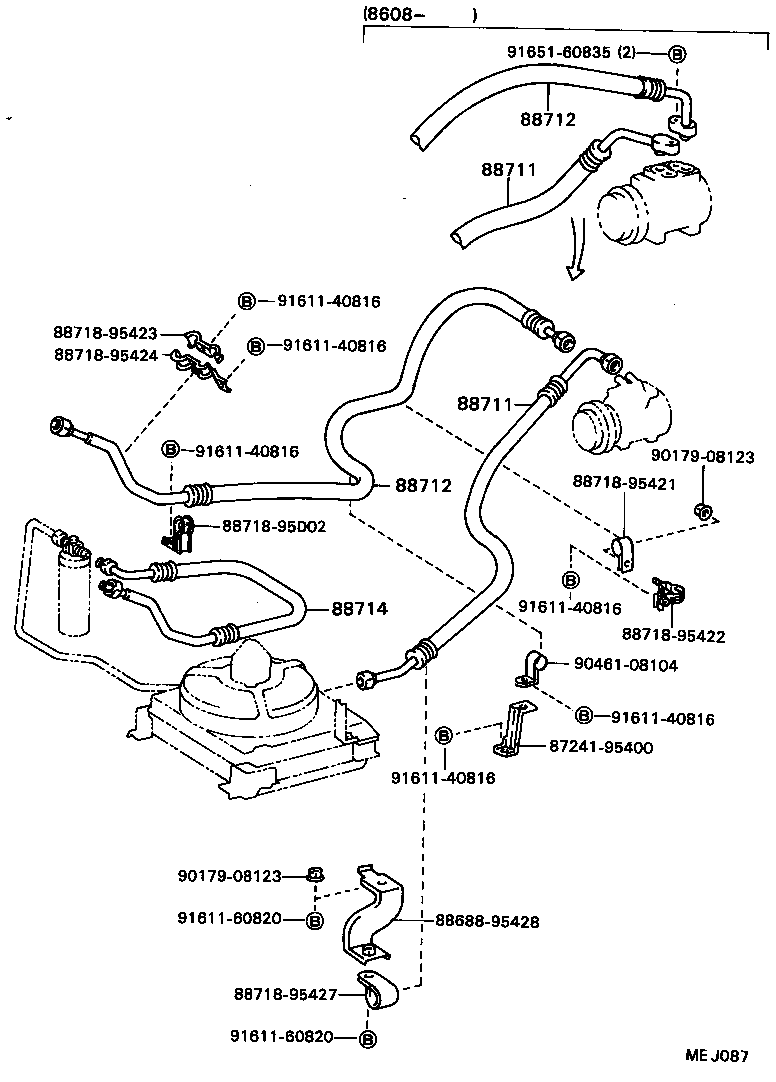

Click highlighted areas on diagram

diagram 8724195400 8868895428 88711 88711 88712 88712 88714 8871895421 8871895422 8871895423 8871895424 8871895427 8871895D02 9017908123 9017908123 9046108104 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161160820 9161160820 9165160835
Part # Description Qty Price
Common parts
87241-95400
88688-95428
88718-95421
88718-95422
88718-95423
88718-95424
88718-95427
88718-95D02
90179-08123
90461-08104
91611-40816
91611-60820
91651-60835
