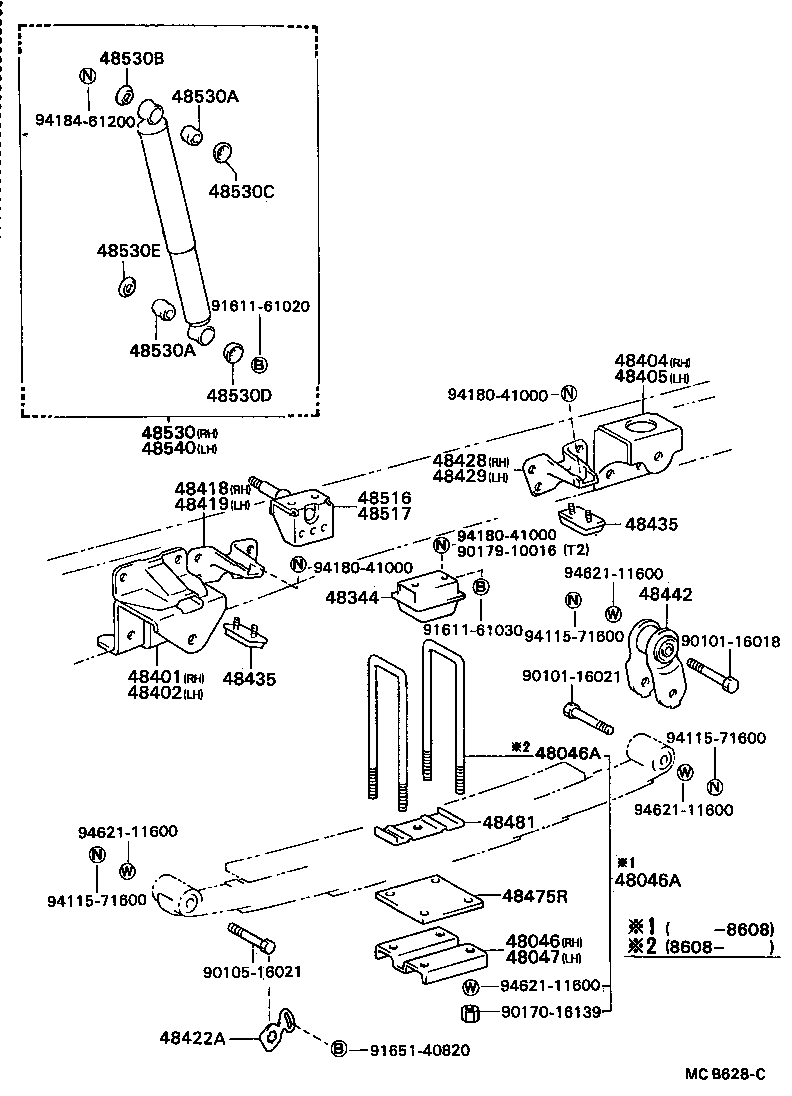

BU85R-MDDHT3 (1984)
Toyota Dyna
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )BU60..T2,T3 ; (8409- )BU61,62,75,76,8#..T2,T3,TW1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36110 |
BU80,81,85..ARL,EUR,GEN |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16240 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=305,L=305 |
2 | ||
| 90118-16236 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=300,L=300 |
4 | ||
| 90117-16018 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=300,L=300 |
4 | ||
| 90117-16025 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=305,L=305 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16240 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=305,L=305 |
2 | ||
| 90118-16236 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=300,L=300 |
4 | ||
| 90117-16018 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=300,L=300 |
4 | ||
| 90117-16025 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=305,L=305 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36110 |
BU85;BU80,81,82..GHD |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36200 |
BU85 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36210 |
BU85 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-36210 |
BU85 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-36190 |
BU85 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-36190 |
BU85 |
1 | ||
| 48418 - BRACKET, HELPER SPRING, FRONT RH | ||||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT..(CBU,IV3) |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT |
1 | ||
| 48418-36090 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 48419 - BRACKET, HELPER SPRING, FRONT LH | ||||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT |
1 | ||
| 48418-36090 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT..(CBU,IV3) |
1 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BU60..TS..WT;BU61,62,75,76,8#..WT |
2 | ||
| 48428 - BRACKET, HELPER SPRING, REAR RH | ||||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT..(CBU,IV3) |
1 | ||
| 48418-36090 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT |
1 | ||
| 48429 - BRACKET, HELPER SPRING, REAR LH | ||||
| 48418-36090 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT..(CBU,IV3) |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU60..TS..WT;BU61,62,75,76,8#..WT |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU60..TS..WT;BU61,62,75,76,8#..WT |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36021 |
BU6#,7#,8# |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36090 |
BU80..T3..GEN;BU63,65,81,85..ARL,EUR,GEN W/12IN DIFF |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36050 |
BU80,81..GHD;BU75,76,82,85 |
2 | ||
| 48481-36050 |
BU85;BU80,81,82..GHD |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36040 |
BU85;BU80,81,82..GHD |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36040 |
BU85;BU80,81,82..GHD |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39735 |
BU85;BU80,81,82..GHD |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BU6#,7#,8# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BU6#,7#,8# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BU80,81..GHD;BU63,65,82,85 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,75,76,8#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BU85;BU80,81,82..GHD |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,7#,8# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39735 |
BU85;BU80,82..GHD |
1 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90101-16021 | ||||
| 90105-16021 | ||||
| 90170-16139 | ||||
| 90179-10016 | ||||
| 91611-61020 | ||||
| 91611-61030 | ||||
| 91651-40820 | ||||
| 94115-71600 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU75,76,85,86 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48201-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48202-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48203-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48214-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48215-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36690 |
BU85..GEN MAIN 5+HELPER 7-LEAF,13-LEAF SPRING,MAIN LEAF=5 |
1 | ||
| 48210-3B060 |
BU85,86..CBU,IV3 MAIN 7+HELPER 6-LEAF,13-LEAF SPRING,MAIN LEAF=7 |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU85..GEN..(IV1,IV3) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48218-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48217-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48204-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48222-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48223-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48222-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48224-3B060 |
BU85,86..CBU,IV3 13-LEAF SPRING,MAIN LEAF=7 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85..GEN 13-LEAF SPRING,MAIN LEAF=5 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )RU75,85,YU60,62,8#..T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36110 |
BU80,81,85..ARL,EUR,GEN |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16240 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=305,L=305 |
2 | ||
| 90118-16236 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=300,L=300 |
4 | ||
| 90117-16018 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=300,L=300 |
4 | ||
| 90117-16025 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=305,L=305 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16240 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=305,L=305 |
2 | ||
| 90118-16236 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=300,L=300 |
4 | ||
| 90117-16018 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=300,L=300 |
4 | ||
| 90117-16025 |
BU80,81,85..(T3,TW1)..(ARL,EUR,GEN) L=305,L=305 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36110 |
BU85;BU80,81,82..GHD |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36200 |
BU85 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36210 |
BU85 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-36210 |
BU85 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-36190 |
BU85 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-36190 |
BU85 |
1 | ||
| 48418 - BRACKET, HELPER SPRING, FRONT RH | ||||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT..(CBU,IV3) |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT |
1 | ||
| 48418-36090 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 48419 - BRACKET, HELPER SPRING, FRONT LH | ||||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT |
1 | ||
| 48418-36090 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT..(CBU,IV3) |
1 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BU60..TS..WT;BU61,62,75,76,8#..WT |
2 | ||
| 48428 - BRACKET, HELPER SPRING, REAR RH | ||||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT..(CBU,IV3) |
1 | ||
| 48418-36090 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT |
1 | ||
| 48429 - BRACKET, HELPER SPRING, REAR LH | ||||
| 48418-36090 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT |
1 | ||
| 48418-36080 |
BU60..TS..WT;BU61,62,75,76,80,81,82,85..(T2,T3)..WT..(CBU,IV3) |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU60..TS..WT;BU61,62,75,76,8#..WT |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU60..TS..WT;BU61,62,75,76,8#..WT |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36021 |
BU6#,7#,8# |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36090 |
BU80..T3..GEN;BU63,65,81,85..ARL,EUR,GEN W/12IN DIFF |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36050 |
BU80,81..GHD;BU75,76,82,85 |
2 | ||
| 48481-36050 |
BU85;BU80,81,82..GHD |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36040 |
BU85;BU80,81,82..GHD |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36040 |
BU85;BU80,81,82..GHD |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39735 |
BU85;BU80,81,82..GHD |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BU6#,7#,8# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BU6#,7#,8# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BU80,81..GHD;BU63,65,82,85 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,75,76,8#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BU85;BU80,81,82..GHD |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,7#,8# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39735 |
BU85;BU80,82..GHD |
1 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90101-16021 | ||||
| 90105-16021 | ||||
| 90170-16139 | ||||
| 90179-10016 | ||||
| 91611-61020 | ||||
| 91611-61030 | ||||
| 91651-40820 | ||||
| 94115-71600 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
