BU85R-MDDHT1 (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
13B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )11B,13B

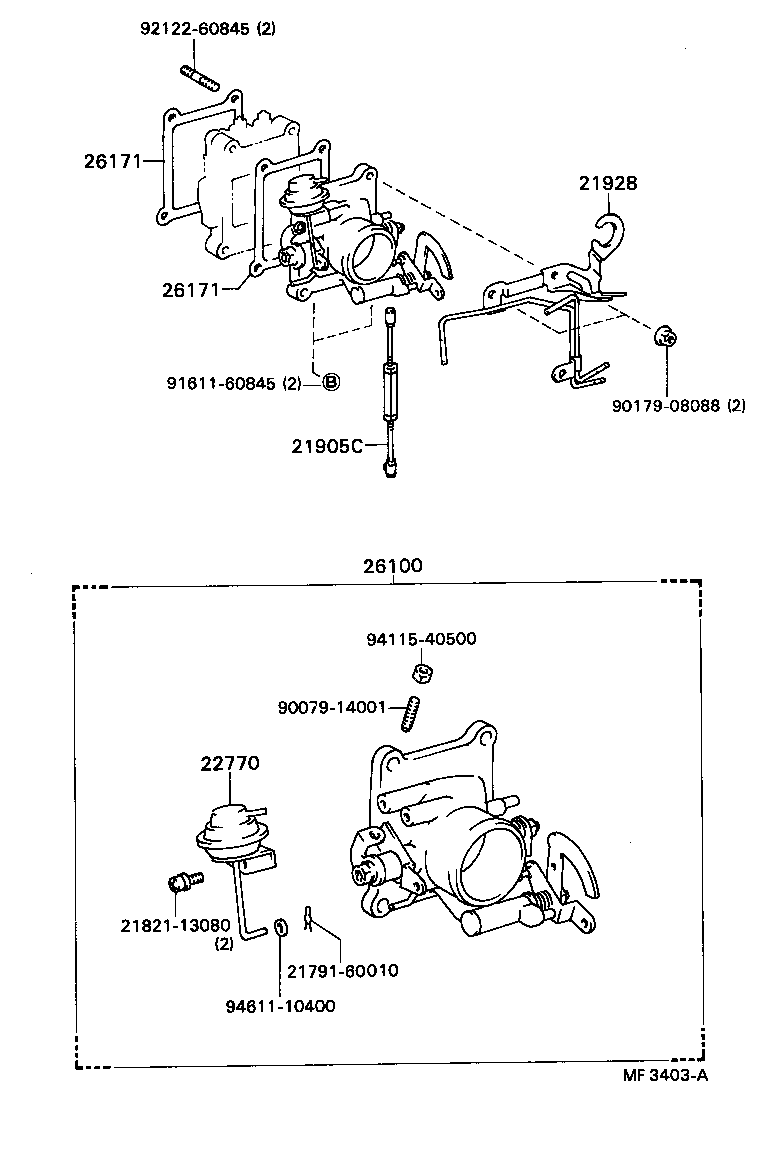

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21905C - ROD, ACCELERATOR CONNECTING(FOR VENTURI) | ||||
| 21905-56050 |
11B,13B..BU61,62,65,76,81,82,85,86 |
1 | ||
| 21928 - SUPPORT, THROTTLE WIRE | ||||
| 21928-58011 |
11B,13B..BU61,62,65,76,81,82,85,86 |
1 | ||
| 21928-58010 |
11B,13B..BU61,62,76,81,82,85 |
1 | ||
| 22770 - ACTUATOR, IDEL UP | ||||
| 26133-56130 |
11B,13B..BU61,62,65,76,81,82,85,86 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-56130 |
11B,13B..BU61,62,76,81,82,85 |
1 | ||
| 26100-56131 |
11B,13B..BU61,62,65,76,81,82,85,86 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-56040 |
11B,13B..BU61,62,65,76,81,82,85,86 |
2 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-56040 |
11B,13B..BU61,62,65,76,81,82,85,86 |
2 | ||
| Common parts | ||||
| 21791-60010 | ||||
| 21821-13080 | ||||
| 90079-14001 | ||||
| 90179-08088 | ||||
| 91611-60845 | ||||
| 92122-60845 | ||||
| 94115-40500 | ||||
| 94611-10400 | ||||
(8409- )B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21928 - SUPPORT, THROTTLE WIRE | ||||
| 21928-58011 |
11B,13B..BU61,62,65,76,81,82,85,86 |
1 | ||
| 21928-58010 |
11B,13B..BU61,62,76,81,82,85 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-56130 |
11B,13B..BU61,62,76,81,82,85 |
1 | ||
| 26100-56131 |
11B,13B..BU61,62,65,76,81,82,85,86 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-56040 |
11B,13B..BU61,62,65,76,81,82,85,86 |
2 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 91611-60625 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
