BU85R-MDDHT1 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

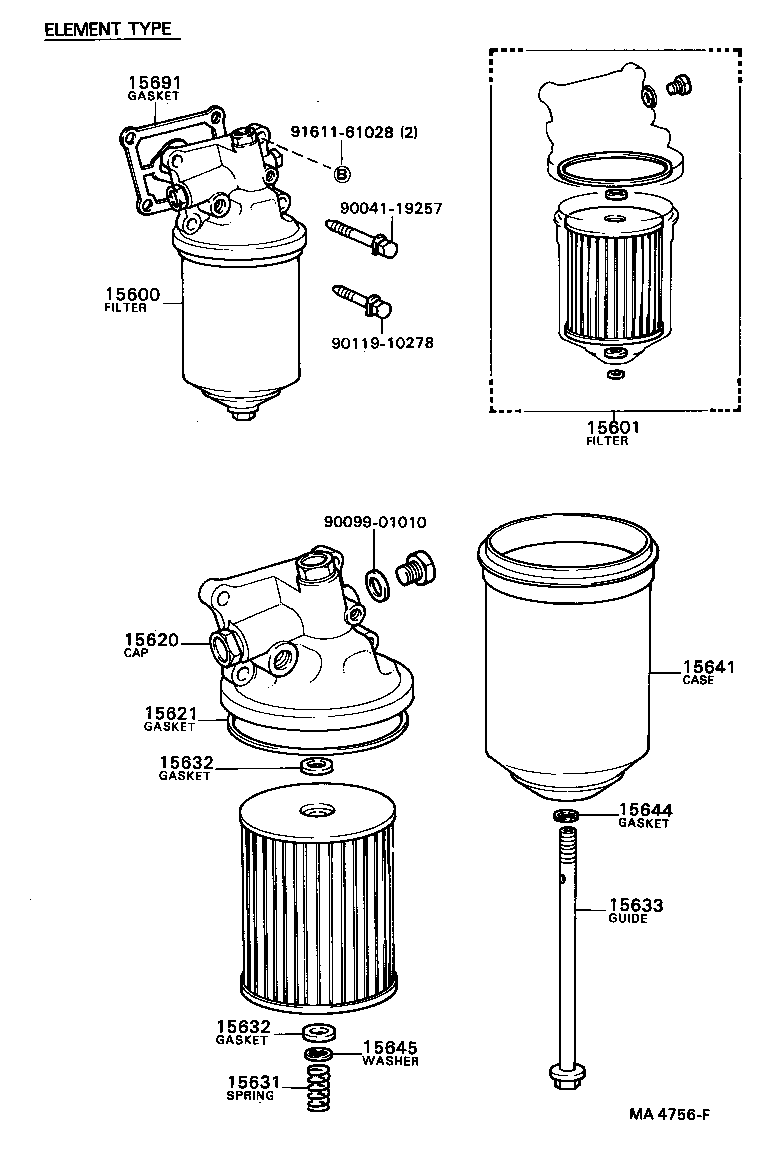

Click highlighted areas on diagram

diagram 15600 15601 15620 15621 15631 15632 15632 15633 15641 15644 15645 15691 9004119257 9009901010 9011910278 9161161028
Part # Description Qty Price
15600 - FILTER ASSY, OIL
15600-56060

13B..BU85..GEN

ELEMENT TYPE

 1
15601 - FILTER SUB-ASSY, OIL
04152-46011

13B..BU85..GEN

ELEMENT TYPE

 1
15600-41010

B,11B,13B..BU6#,7#,8#

 1
15620 - CAP ASSY, OIL FILTER
15620-56060

13B..BU85..GEN

ELEMENT TYPE

 1
15621 - GASKET, OIL FILTER BODY
15621-60030

13B..BU85..GEN

ELEMENT TYPE

 1
15631 - SPRING, OIL FILTER ELEMENT SUPPORT
15631-21010

13B..BU85..GEN

ELEMENT TYPE

 1
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

13B..BU85..GEN

ELEMENT TYPE

 2
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

13B..BU85..GEN

ELEMENT TYPE

 2
15633 - GUIDE, OIL FILTER CARTRIDGE
15633-47040

13B..BU85..GEN

ELEMENT TYPE

 1
15641 - CASE, OIL FILTER
15641-48010

13B..BU85..GEN

ELEMENT TYPE

 1
15644 - GASKET, OIL FILTER CARTRIDGE GUIDE
15644-60010

13B..BU85..GEN

ELEMENT TYPE

 1
15645 - WASHER, OIL FILTER CARTRIDGE GUIDE
90099-01093

13B..BU85..GEN

ELEMENT TYPE

 1
15691 - GASKET, OIL FILTER
15691-56030

B,11B,13B..BU6#,7#,8#

 1
Common parts
90041-19257
90099-01010
90119-10278
91611-61028

(8409- )

Click highlighted areas on diagram

diagram 15601 15609 15691 9004119257 9011910278 9161161028
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
04152-46011

13B..BU85..GEN

ELEMENT TYPE

 1
15600-41010

B,11B,13B..BU6#,7#,8#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-56040

B,11B,13B..BU6#,7#,8#

 1
15691 - GASKET, OIL FILTER
15691-56030

B,11B,13B..BU6#,7#,8#

 1
Common parts
90041-19257
90119-10278
91611-61028
