BU85L-MDDHT3 (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
13B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )

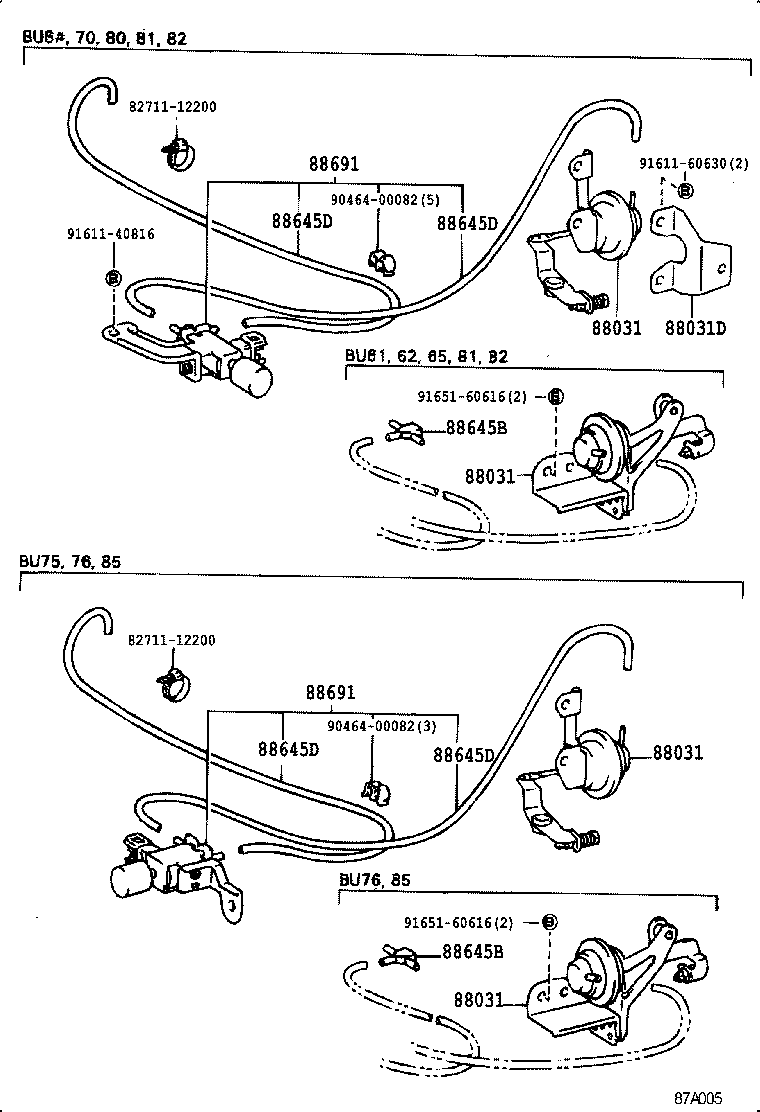

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-36041 |
BU65..CBU;BU61,62,76,81,82,85..ARL,GEN,GHD,SA |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-36041 |
BU65..CBU;BU61,62,76,81,82,85..ARL,GEN,GHD,SA |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-36041 |
BU65..CBU;BU61,62,76,81,82,85..ARL,GEN,GHD,SA |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-36041 |
BU65..CBU;BU61,62,76,81,82,85..ARL,GEN,GHD,SA |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04005 |
BU76,85..GEN |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04005 |
BU76,85..GEN |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10060 |
BU76,85..GEN *H,L=510,MARK=#0 |
1 | ||
| 95411-19995 |
BU76,85..GEN *H,L=800,MARK=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10060 |
BU76,85..GEN *H,L=510,MARK=#0 |
1 | ||
| 95411-19995 |
BU76,85..GEN *H,L=800,MARK=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10060 |
BU76,85..GEN *H,L=510,MARK=#0 |
1 | ||
| 95411-19995 |
BU76,85..GEN *H,L=800,MARK=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10060 |
BU76,85..GEN *H,L=510,MARK=#0 |
1 | ||
| 95411-19995 |
BU76,85..GEN *H,L=800,MARK=#* |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-95429 |
BU85..LHD..GEN CHINA SPEC(24V) |
1 | ||
| 88690-95415 |
BU76,85..GEN |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-95429 |
BU85..LHD..GEN CHINA SPEC(24V) |
1 | ||
| 88690-95415 |
BU76,85..GEN |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90464-00082 | ||||
| 91611-40816 | ||||
| 91611-60630 | ||||
| 91651-60616 | ||||
(8409- )

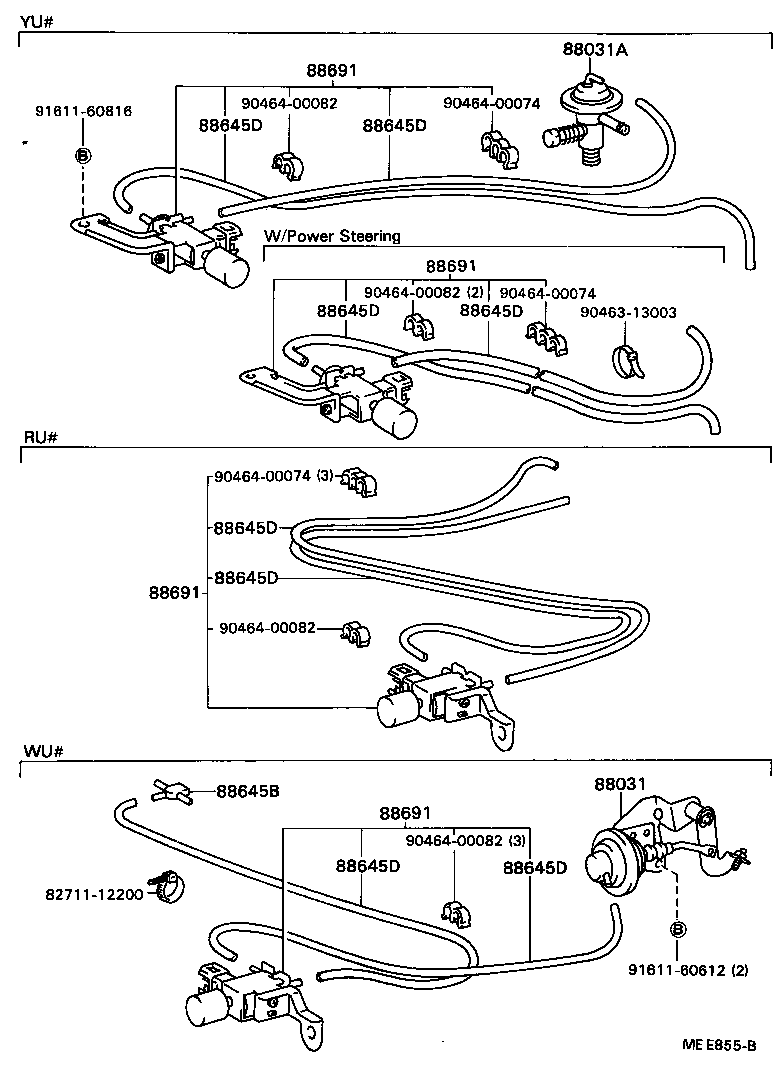

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90464-00082 | ||||
| 91611-40816 | ||||
| 91611-60630 | ||||
| 91651-60616 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90463-13003 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
