BU85L-MDDHT3 (1984)
Toyota Dyna
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95404 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| 87104-95405 |
BU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN CHINA OR ALGERIA SPEC,HEAVY DUTY |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-95403 |
BU60,61,62,7#,80,81,85..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 87105-16020 |
BU60,61,62,65,7#,80,81,85..LHD W/HEATER |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95407 |
BU60..LHD..TW1;BU60,80,85..LHD..WT HEAVY DUTY |
1 | ||
| 87107-95406 |
BU6#,7#,8#..ARL,GEN,GHD,SA STD DUTY |
1 | ||

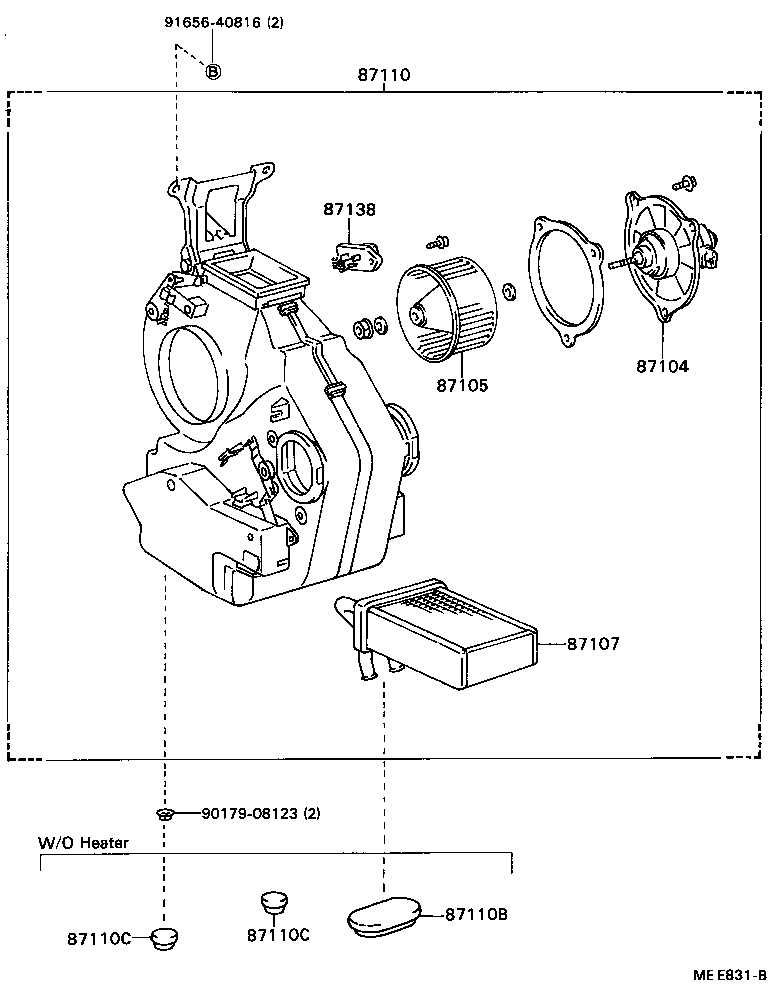

| 87110 - HEATER ASSY | ||||
| 87110-95441 |
BU85..LHD..GEN STD DUTY,CHINA SPEC |
1 | ||
| 87110-95443 |
BU85..LHD..GEN HEAVY DUTY,CHINA SPEC |
1 | ||
| 87110-95440 |
BU75,76,85..LHD..GEN |
1 | ||
| 87110B - PLUG, HOLE (FOR HEATER PIPE HOLE) | ||||
| 90950-01047 |
BU6#,7#,8#..EUR,GEN,GHD |
1 | ||
| 87110C - PLUG, HOLE (FOR HEATER INSTALLATION HOLE) | ||||
| 90950-01006 |
BU6#,7#,8#..EUR,GEN,GHD |
2 | ||
| 87110C - PLUG, HOLE (FOR HEATER INSTALLATION HOLE) | ||||
| 90950-01006 |
BU6#,7#,8#..EUR,GEN,GHD |
2 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95408 |
BU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN CHINA OR ALGERIA SPEC |
1 | ||
| 87138-95409 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91656-40816 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06070 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95404 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| 87104-95405 |
BU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN CHINA OR ALGERIA SPEC,HEAVY DUTY |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-95403 |
BU60,61,62,7#,80,81,85..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 87105-16020 |
BU60,61,62,65,7#,80,81,85..LHD W/HEATER |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95408 |
BU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN CHINA OR ALGERIA SPEC |
1 | ||
| 87138-95409 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||

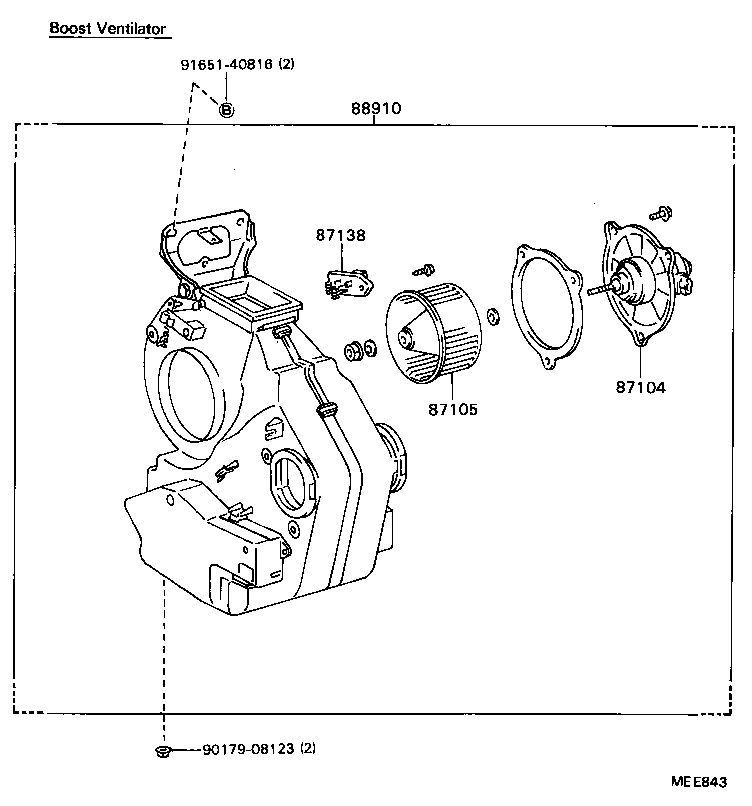

| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-95404 |
BU75,76,85..LHD..GEN |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91651-40816 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95404 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| 87104-95405 |
BU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN CHINA OR ALGERIA SPEC,HEAVY DUTY |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-95403 |
BU60,61,62,7#,80,81,85..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 87105-16020 |
BU60,61,62,65,7#,80,81,85..LHD W/HEATER |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95407 |
BU60..LHD..TW1;BU60,80,85..LHD..WT HEAVY DUTY |
1 | ||
| 87107-95406 |
BU6#,7#,8#..ARL,GEN,GHD,SA STD DUTY |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-95441 |
BU85..LHD..GEN STD DUTY,CHINA SPEC |
1 | ||
| 87110-95443 |
BU85..LHD..GEN HEAVY DUTY,CHINA SPEC |
1 | ||
| 87110-95440 |
BU75,76,85..LHD..GEN |
1 | ||
| 87110B - PLUG, HOLE (FOR HEATER PIPE HOLE) | ||||
| 90950-01047 |
BU6#,7#,8#..EUR,GEN,GHD |
1 | ||
| 87110C - PLUG, HOLE (FOR HEATER INSTALLATION HOLE) | ||||
| 90950-01006 |
BU6#,7#,8#..EUR,GEN,GHD |
2 | ||
| 87110C - PLUG, HOLE (FOR HEATER INSTALLATION HOLE) | ||||
| 90950-01006 |
BU6#,7#,8#..EUR,GEN,GHD |
2 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95408 |
BU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN CHINA OR ALGERIA SPEC |
1 | ||
| 87138-95409 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91656-40816 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06070 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95404 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| 87104-95405 |
BU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN CHINA OR ALGERIA SPEC,HEAVY DUTY |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-95403 |
BU60,61,62,7#,80,81,85..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 87105-16020 |
BU60,61,62,65,7#,80,81,85..LHD W/HEATER |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95408 |
BU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN CHINA OR ALGERIA SPEC |
1 | ||
| 87138-95409 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-95404 |
BU75,76,85..LHD..GEN |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91651-40816 | ||||
