BU85L-MDDHT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )B,11B,13B..BU75,76,85,86

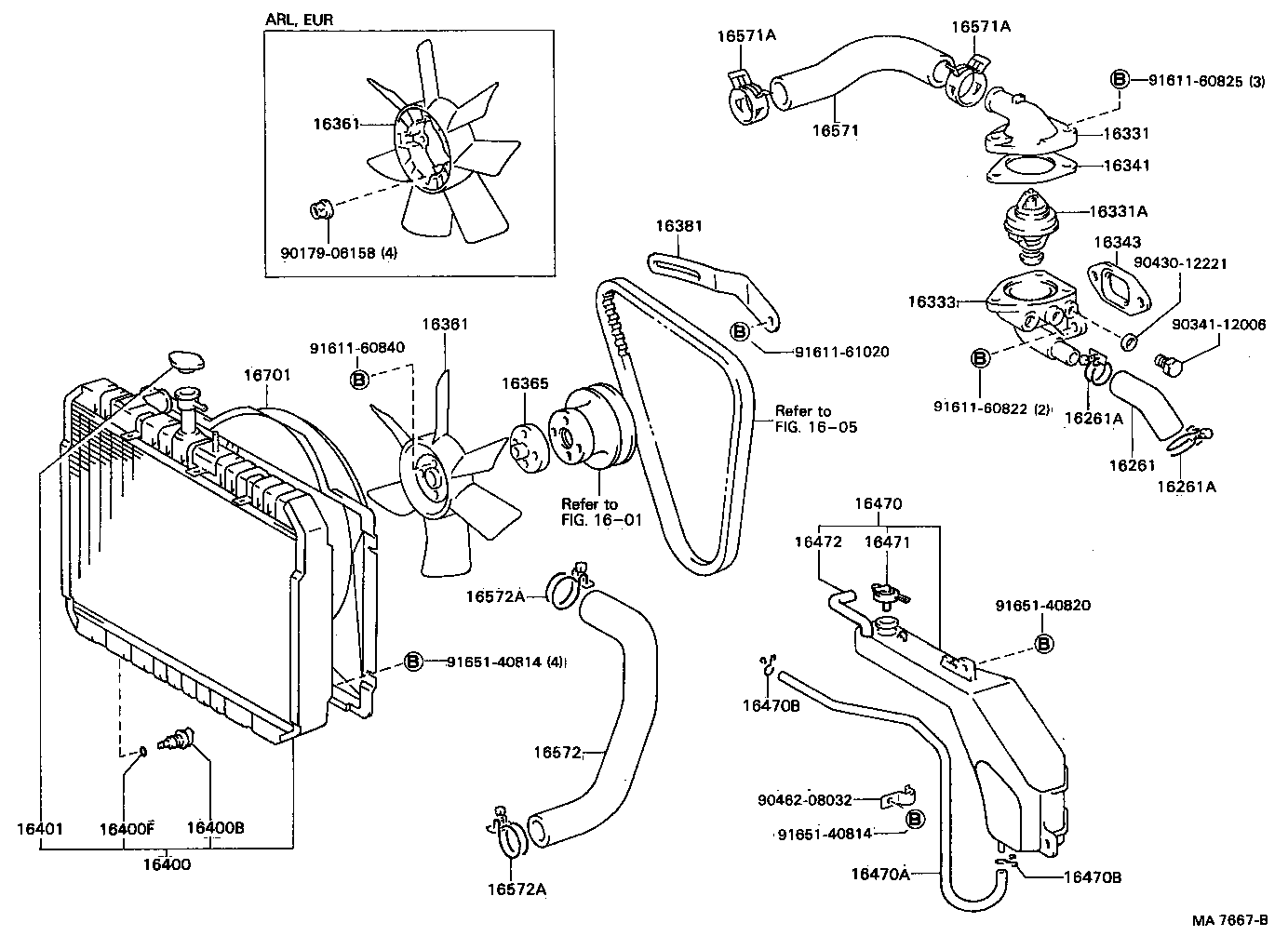

Click highlighted areas on diagram

diagram 1601 1605 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361 16365 16381 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16701 9017906158 9034112006 9043012221 9046208032 9161160822 9161160825 9161160840 9161161020 9165140814 9165140814 9165140820
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-56012

B,11B,13B..BU6#,7#,8#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-67103

B,11B,13B..BU6#,7#,8#

 2
90044-60053

B,11B,13B..BU6#,7#,8#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-67103

B,11B,13B..BU6#,7#,8#

 2
90044-60053

B,11B,13B..BU6#,7#,8#

 2
16331 - OUTLET, WATER
16331-56020

B,11B,13B..BU75,76,85,86

 1
16331A - THERMOSTAT
90916-03066

B,11B,13B..BU6#,7#,8#..ARL,GEN,GHD,SA

*WAX 82-95,*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16333-56060

B,11B,13B..BU6#,7#,8#

 1
16341 - GASKET, WATER OUTLET
16341-56020

B,11B,13B..BU6#,7#,8#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-56020

B,11B,13B..BU6#,7#,8#

 1
16361 - FAN
16361-56030

11B,13B..BU76,85,86..GEN

 1
16361 - FAN
16361-56030

11B,13B..BU76,85,86..GEN

 1
16365 - SPACER, FAN
16365-56020

B,11B,13B..BU61,62,65,75,85..GEN..(CBU,IV3)

 1
16365-56020

B,11B,13B..BU61,62,65,75,85..GEN

 1
16365-56021

B,11B,13B..BU61,62,65,75,85..GEN..(CBU,IV3)

 1
16381 - BAR, FAN BELT ADJUSTING
16381-56030

B,11B,13B..BU6#,7#,8#

 1
16400 - RADIATOR ASSY
16400-58110

11B,13B..BU76,85,86..ARL,GEN

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24051

B,11B,13B..BU75,76,85,86

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24051

B,11B,13B..BU6#,7#,8#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

B,11B,13B..BU75,76,85,86

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58020

B,11B,13B..BU75,76,85,86

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12143

B,11B,13B..BU75,76,85,86

L=620

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B,11B,13B..BU6#,7#,8#

 6
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B,11B,13B..BU6#,7#,8#

 6
16471 - CAP SUB-ASSY, RESERVE TANK
16405-56070

B,11B,13B..BU75,76,85,86

 1
16472 - HOSE, BREATHER
16472-58010

B,11B,13B..BU75,76,85,86

 1
16571 - HOSE, RADIATOR, INLET
16571-58030

B,11B,13B..BU75,76,85,86

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

B,11B,13B..BU6#,7#,8#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

B,11B,13B..BU6#,7#,8#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-58030

B,11B,13B..BU75,76,85,86

 1
16572-58031

B,11B,13B..BU75,76,85,86

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

B,11B,13B..BU75,76,85,86

RADIATOR SIDE

 1
96111-10570

B,11B,13B..BU75,76,85,86

WATER PUMP SIDE

 1
96111-10560

B,11B,13B..BU75,76,85,86

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

B,11B,13B..BU75,76,85,86

RADIATOR SIDE

 1
96111-10570

B,11B,13B..BU75,76,85,86

WATER PUMP SIDE

 1
96111-10560

B,11B,13B..BU75,76,85,86

WATER PUMP SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16701-58040

B..BU75..EUR;11B,13B..BU76,85,86

 1
Common parts
90179-06158
90341-12006
90430-12221
90462-08032
91611-60822
91611-60825
91611-60840
91611-61020
91651-40814
91651-40820
