BU85L-MDDHT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

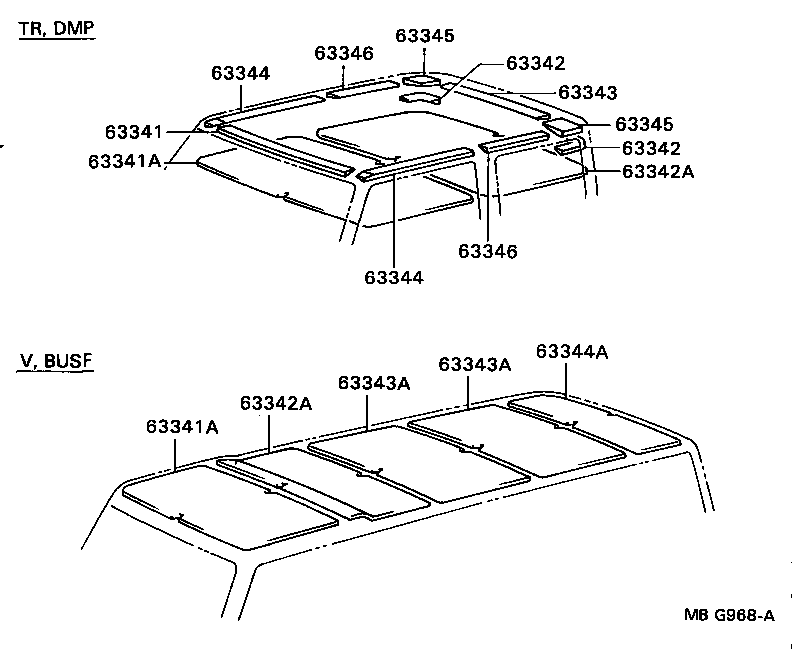

Click highlighted areas on diagram

diagram 63341 63341A 63341A 63342 63342 63342A 63342A 63343 63343A 63343A 63344 63344 63344A 63345 63345 63346 63346
Part # Description Qty Price
63341 - PAD, ROOF SILENCER, NO.1
63342-95403

BU75,76,85,86..CBU,IV3

 1
63341A - SILENCER, ROOF, NO.1
63341-9541203

BU75,76,85..T3..(CBU,IV3)

W/ROOF VENTILATOR,GRAY,GRAY

 1
63341-9541103

BU75,76,85..T3..(CBU,IV3)

GRAY,GRAY

 1
63341A - SILENCER, ROOF, NO.1
63341-9541203

BU75,76,85..T3..(CBU,IV3)

W/ROOF VENTILATOR,GRAY,GRAY

 1
63341-9541103

BU75,76,85..T3..(CBU,IV3)

GRAY,GRAY

 1
63342 - PAD, ROOF SILENCER, NO.2
63344-95401

BU75,76,85,86..CBU,IV3

LH

 1
63343-95400

BU75,76,85,86..CBU,IV3

RH

 1
63342 - PAD, ROOF SILENCER, NO.2
63344-95401

BU75,76,85,86..CBU,IV3

LH

 1
63343-95400

BU75,76,85,86..CBU,IV3

RH

 1
63343 - PAD, ROOF SILENCER, NO.3
63345-95400

BU75,76,85..T3..(CBU,IV3)

 1
63344 - PAD, ROOF SILENCER, NO.4
63347-95400

BU75,76,85..T3..(CBU,IV3)

RH

 1
63348-95400

BU75,76,85..T3..(CBU,IV3)

LH

 1
63344 - PAD, ROOF SILENCER, NO.4
63347-95400

BU75,76,85..T3..(CBU,IV3)

RH

 1
63348-95400

BU75,76,85..T3..(CBU,IV3)

LH

 1

(8409- )

Click highlighted areas on diagram

diagram 63341 63341A 63341A 63342 63342 63342A 63342A 63343 63343A 63343A 63344 63344 63344A 63345 63345 63346 63346
Part # Description Qty Price
63341 - PAD, ROOF SILENCER, NO.1
63342-95403

BU75,76,85,86..CBU,IV3

 1
63341A - SILENCER, ROOF, NO.1
63341-9541203

BU75,76,85..T3..(CBU,IV3)

W/ROOF VENTILATOR,GRAY,GRAY

 1
63341-9541103

BU75,76,85..T3..(CBU,IV3)

GRAY,GRAY

 1
63341A - SILENCER, ROOF, NO.1
63341-9541203

BU75,76,85..T3..(CBU,IV3)

W/ROOF VENTILATOR,GRAY,GRAY

 1
63341-9541103

BU75,76,85..T3..(CBU,IV3)

GRAY,GRAY

 1
63342 - PAD, ROOF SILENCER, NO.2
63344-95401

BU75,76,85,86..CBU,IV3

LH

 1
63343-95400

BU75,76,85,86..CBU,IV3

RH

 1
63342 - PAD, ROOF SILENCER, NO.2
63344-95401

BU75,76,85,86..CBU,IV3

LH

 1
63343-95400

BU75,76,85,86..CBU,IV3

RH

 1
63343 - PAD, ROOF SILENCER, NO.3
63345-95400

BU75,76,85..T3..(CBU,IV3)

 1
63344 - PAD, ROOF SILENCER, NO.4
63347-95400

BU75,76,85..T3..(CBU,IV3)

RH

 1
63348-95400

BU75,76,85..T3..(CBU,IV3)

LH

 1
63344 - PAD, ROOF SILENCER, NO.4
63347-95400

BU75,76,85..T3..(CBU,IV3)

RH

 1
63348-95400

BU75,76,85..T3..(CBU,IV3)

LH

 1
