BU85L-MDDHT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

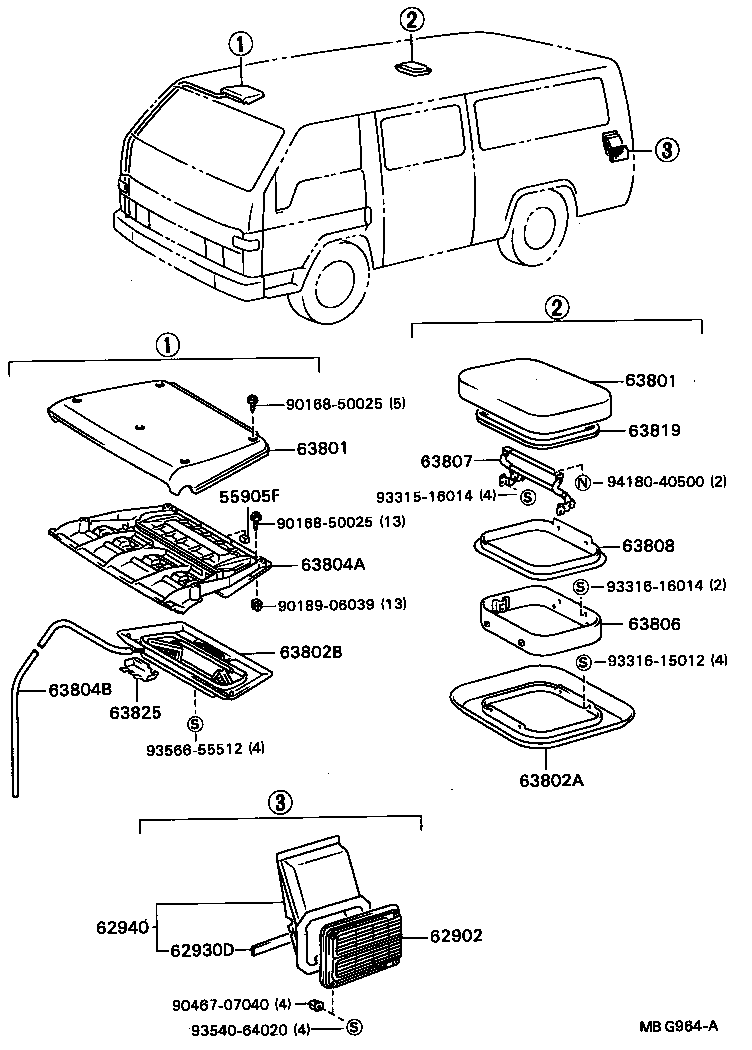

Click highlighted areas on diagram

diagram 55905F 62902 62930D 62940 63801 63801 63802A 63802B 63804A 63804B 63806 63807 63808 63819 63825 9016850025 9016850025 9018906039 9046707040 9331516014 9331615012 9331616014 9354064020 9356655512 9418040500
Part # Description Qty Price
55905F - KNOB SUB-ASSY, CONTROL
55905-10110

BU6#,7#,8#..(BUS,DMP,TR)..(CBU,IV3)

 1
55905-10110

BU60,61,62,63,7#,8#..CBU,IV3

 1
63801 - COVER SUB-ASSY, ROOF VENTILATOR, FRONT
63801-95400

BU6#,75,76,8#..CBU,IV3

 1
63801-95401

BU60,61,62,63,7#,8#..CBU,IV3

 1
63801 - COVER SUB-ASSY, ROOF VENTILATOR, FRONT
63801-95400

BU6#,75,76,8#..CBU,IV3

 1
63801-95401

BU60,61,62,63,7#,8#..CBU,IV3

 1
63802B - COVER SUB-ASSY, ROOF VENTILATOR, INNER
63802-9540003

BU6#,7#,8#..(BUS,DMP,TR)..(CBU,IV3)

GRAY,GRAY

 1
63802-9540003

BU60,61,62,63,7#,8#..CBU,IV3

GRAY,GRAY

 1
63804A - HOUSING SUB-ASSY, ROOF VENTILATOR
63804-95400

BU60,61,62,63,7#,8#..CBU,IV3

 1
63804-95400

BU6#,7#,8#..(BUS,DMP,TR)..(CBU,IV3)

 1
63804B - HOSE, DRAIN(FOR ROOF VENTILATOR)
88539-95402

BU6#,7#,8#..(BUS,DMP,TR)..(CBU,IV3)

 1
88539-95402

BU60,61,62,63,7#,8#..CBU,IV3

 1
63825 - COVER, ROOF VENTILATOR DRAIN HOSE
63825-95400

BU75,76,85,86..CBU,IV3

 1
Common parts
90168-50025
90189-06039
90467-07040
93315-16014
93316-15012
93316-16014
93540-64020
93566-55512
94180-40500

(8409- )

Click highlighted areas on diagram

diagram 55905F 62902 62930D 62940 63801 63801 63802A 63802B 63804A 63804B 63806 63807 63808 63819 63825 9016850025 9016850025 9018906039 9046707040 9331516014 9331615012 9331616014 9354064020 9356655512 9418040500
Part # Description Qty Price
55905F - KNOB SUB-ASSY, CONTROL
55905-10110

BU6#,7#,8#..(BUS,DMP,TR)..(CBU,IV3)

 1
55905-10110

BU60,61,62,63,7#,8#..CBU,IV3

 1
63801 - COVER SUB-ASSY, ROOF VENTILATOR, FRONT
63801-95400

BU6#,75,76,8#..CBU,IV3

 1
63801-95401

BU60,61,62,63,7#,8#..CBU,IV3

 1
63801 - COVER SUB-ASSY, ROOF VENTILATOR, FRONT
63801-95400

BU6#,75,76,8#..CBU,IV3

 1
63801-95401

BU60,61,62,63,7#,8#..CBU,IV3

 1
63802B - COVER SUB-ASSY, ROOF VENTILATOR, INNER
63802-9540003

BU6#,7#,8#..(BUS,DMP,TR)..(CBU,IV3)

GRAY,GRAY

 1
63802-9540003

BU60,61,62,63,7#,8#..CBU,IV3

GRAY,GRAY

 1
63804A - HOUSING SUB-ASSY, ROOF VENTILATOR
63804-95400

BU60,61,62,63,7#,8#..CBU,IV3

 1
63804-95400

BU6#,7#,8#..(BUS,DMP,TR)..(CBU,IV3)

 1
63804B - HOSE, DRAIN(FOR ROOF VENTILATOR)
88539-95402

BU6#,7#,8#..(BUS,DMP,TR)..(CBU,IV3)

 1
88539-95402

BU60,61,62,63,7#,8#..CBU,IV3

 1
63825 - COVER, ROOF VENTILATOR DRAIN HOSE
63825-95400

BU75,76,85,86..CBU,IV3

 1
Common parts
90168-50025
90189-06039
90467-07040
93315-16014
93316-15012
93316-16014
93540-64020
93566-55512
94180-40500
