BU85L-MDDHT (1984)
Toyota Dyna

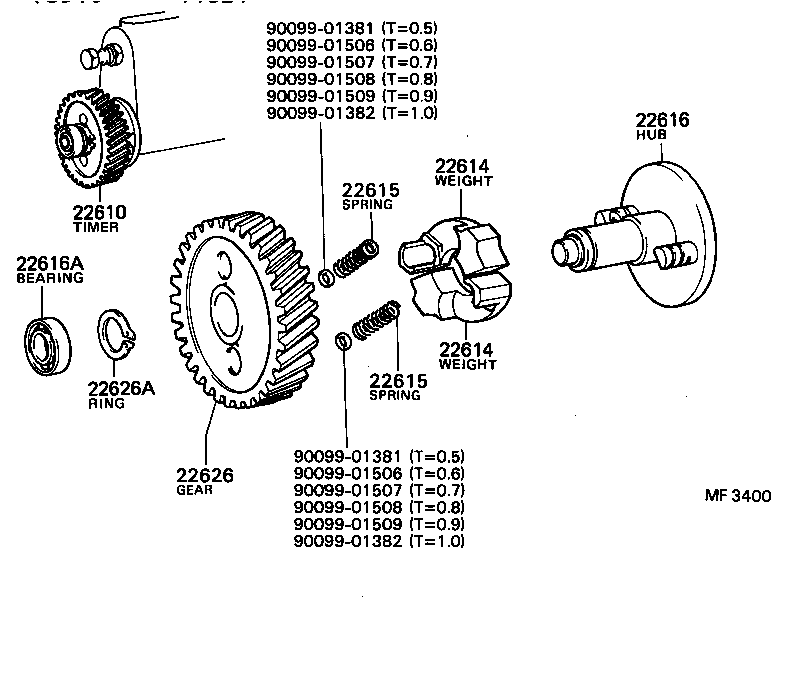

(8409- )11B,13B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22610 - TIMER ASSY, AUTOMATIC | ||||
| 22610-58030 |
13B..BU85..GEN W/HAC |
1 | ||
| 22610-58020 |
13B..BU62,82,85 |
1 | ||
| 22610-58031 |
13B..BU85..GEN W/HAC |
1 | ||
| 22614 - WEIGHT, TIMER | ||||
| 22614-58031 |
13B..BU85..GEN W/HAC |
2 | ||
| 22614-58030 |
13B..BU85..GEN W/HAC |
2 | ||
| 22614-58020 |
13B..BU62,82,85 |
2 | ||
| 22614 - WEIGHT, TIMER | ||||
| 22614-58031 |
13B..BU85..GEN W/HAC |
2 | ||
| 22614-58030 |
13B..BU85..GEN W/HAC |
2 | ||
| 22614-58020 |
13B..BU62,82,85 |
2 | ||
| 22615 - SPRING, TIMER | ||||
| 22615-58031 |
13B..BU85..GEN W/HAC |
2 | ||
| 22615-58030 |
13B..BU85..GEN W/HAC |
2 | ||
| 22615-58020 |
11B,13B..BU61,62,65,76,81,82,85,86..ARL,EUR,GEN,GHD |
2 | ||
| 22615 - SPRING, TIMER | ||||
| 22615-58031 |
13B..BU85..GEN W/HAC |
2 | ||
| 22615-58030 |
13B..BU85..GEN W/HAC |
2 | ||
| 22615-58020 |
11B,13B..BU61,62,65,76,81,82,85,86..ARL,EUR,GEN,GHD |
2 | ||
| 22616 - HUB, TIMER | ||||
| 22616-58020 |
11B,13B..BU61,62,65,76,81,82,85,86..ARL,EUR,GEN,GHD |
1 | ||
| 22616-58030 |
13B..BU85..GEN W/HAC |
2 | ||
| 22616A - BEARING(FOR TIMER HUB) | ||||
| 90099-10018 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 22626 - GEAR, DRIVE | ||||
| 22626-58020 |
11B,13B..BU61,62,65,76,81,82,85,86 |
1 | ||
| 22626A - RING, CLAMP(FOR DRIVE GEAR) | ||||
| 90096-90001 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| Common parts | ||||
| 90099-01381 | ||||
| 90099-01382 | ||||
| 90099-01506 | ||||
| 90099-01507 | ||||
| 90099-01508 | ||||
| 90099-01509 | ||||

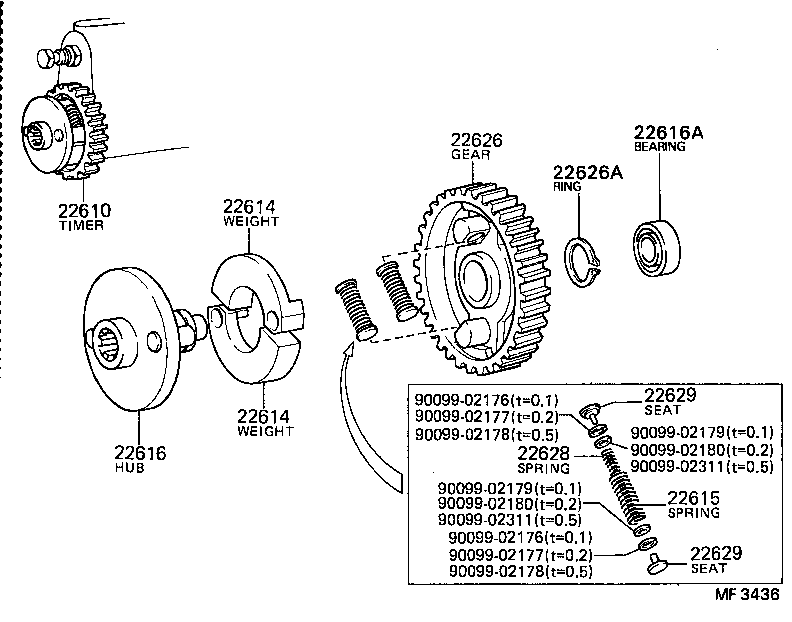

(8409- )B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22610 - TIMER ASSY, AUTOMATIC | ||||
| 22610-58030 |
13B..BU85..GEN W/HAC |
1 | ||
| 22610-58020 |
13B..BU62,82,85 |
1 | ||
| 22610-58031 |
13B..BU85..GEN W/HAC |
1 | ||
| 22614 - WEIGHT, TIMER | ||||
| 22614-58031 |
13B..BU85..GEN W/HAC |
2 | ||
| 22614-58030 |
13B..BU85..GEN W/HAC |
2 | ||
| 22614-58020 |
13B..BU62,82,85 |
2 | ||
| 22614 - WEIGHT, TIMER | ||||
| 22614-58031 |
13B..BU85..GEN W/HAC |
2 | ||
| 22614-58030 |
13B..BU85..GEN W/HAC |
2 | ||
| 22614-58020 |
13B..BU62,82,85 |
2 | ||
| 22615 - SPRING, TIMER | ||||
| 22615-58031 |
13B..BU85..GEN W/HAC |
2 | ||
| 22615-58030 |
13B..BU85..GEN W/HAC |
2 | ||
| 22615-58020 |
11B,13B..BU61,62,65,76,81,82,85,86..ARL,EUR,GEN,GHD |
2 | ||
| 22616 - HUB, TIMER | ||||
| 22616-58020 |
11B,13B..BU61,62,65,76,81,82,85,86..ARL,EUR,GEN,GHD |
1 | ||
| 22616-58030 |
13B..BU85..GEN W/HAC |
2 | ||
| 22616A - BEARING(FOR TIMER HUB) | ||||
| 90099-10018 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 22626 - GEAR, DRIVE | ||||
| 22626-58020 |
11B,13B..BU61,62,65,76,81,82,85,86 |
1 | ||
| 22626A - RING, CLAMP(FOR DRIVE GEAR) | ||||
| 90096-90001 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| Common parts | ||||
| 90099-02176 | ||||
| 90099-02177 | ||||
| 90099-02178 | ||||
| 90099-02179 | ||||
| 90099-02180 | ||||
| 90099-02311 | ||||
