Toyota Dyna BU80 RADIATOR GRILLE

BU80R-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

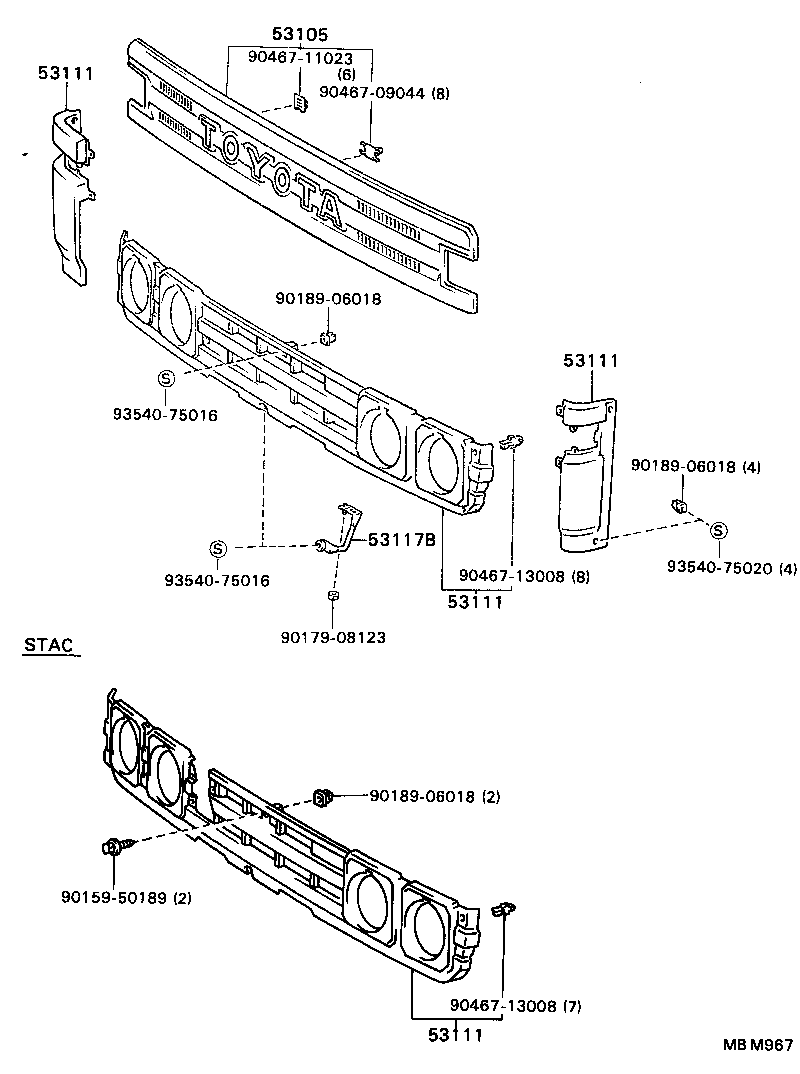

Click highlighted areas on diagram

Part #	Description	Period	Qty
53105 - STAY, RADIATOR GRILLE, CENTER
53105-95400	BU6#,70,80,81,82	09/1984 - 08/1987	1
53111 - GRILLE, RADIATOR
53113-95403	BU6#,7#,8# LH	09/1984 - 08/1987	1
53111-95416	BU6#,70,80,81,82 CTR	08/1985 - 08/1987	1
53111-95412	BU6#,70,80,81,82 CTR	09/1984 - 08/1985	1
53112-95401	BU6#,7#,8# RH	09/1984 - 08/1987	1
53111 - GRILLE, RADIATOR
53113-95403	BU6#,7#,8# LH	09/1984 - 08/1987	1
53111-95416	BU6#,70,80,81,82 CTR	08/1985 - 08/1987	1
53111-95412	BU6#,70,80,81,82 CTR	09/1984 - 08/1985	1
53112-95401	BU6#,7#,8# RH	09/1984 - 08/1987	1
53111 - GRILLE, RADIATOR
53113-95403	BU6#,7#,8# LH	09/1984 - 08/1987	1
53111-95416	BU6#,70,80,81,82 CTR	08/1985 - 08/1987	1
53111-95412	BU6#,70,80,81,82 CTR	09/1984 - 08/1985	1
53112-95401	BU6#,7#,8# RH	09/1984 - 08/1987	1
53111 - GRILLE, RADIATOR
53113-95403	BU6#,7#,8# LH	09/1984 - 08/1987	1
53111-95416	BU6#,70,80,81,82 CTR	08/1985 - 08/1987	1
53111-95412	BU6#,70,80,81,82 CTR	09/1984 - 08/1985	1
53112-95401	BU6#,7#,8# RH	09/1984 - 08/1987	1
53117B - BRACKET, RADIATOR GRILLE, LOWER
53117-95400	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
Common parts
90159-50189
90179-08123
90189-06018
90467-09044
90467-11023
90467-13008
93540-75016
93540-75020

Click highlighted areas on diagram

Part #	Description	Period	Qty
53105 - STAY, RADIATOR GRILLE, CENTER
53105-95400	BU6#,70,80,81,82	09/1984 - 08/1987	1
53111 - GRILLE, RADIATOR
53113-95403	BU6#,7#,8# LH	09/1984 - 08/1987	1
53111-95416	BU6#,70,80,81,82 CTR	08/1985 - 08/1987	1
53111-95412	BU6#,70,80,81,82 CTR	09/1984 - 08/1985	1
53112-95401	BU6#,7#,8# RH	09/1984 - 08/1987	1
53111 - GRILLE, RADIATOR
53113-95403	BU6#,7#,8# LH	09/1984 - 08/1987	1
53111-95416	BU6#,70,80,81,82 CTR	08/1985 - 08/1987	1
53111-95412	BU6#,70,80,81,82 CTR	09/1984 - 08/1985	1
53112-95401	BU6#,7#,8# RH	09/1984 - 08/1987	1
53111 - GRILLE, RADIATOR
53113-95403	BU6#,7#,8# LH	09/1984 - 08/1987	1
53111-95416	BU6#,70,80,81,82 CTR	08/1985 - 08/1987	1
53111-95412	BU6#,70,80,81,82 CTR	09/1984 - 08/1985	1
53112-95401	BU6#,7#,8# RH	09/1984 - 08/1987	1
53111 - GRILLE, RADIATOR
53113-95403	BU6#,7#,8# LH	09/1984 - 08/1987	1
53111-95416	BU6#,70,80,81,82 CTR	08/1985 - 08/1987	1
53111-95412	BU6#,70,80,81,82 CTR	09/1984 - 08/1985	1
53112-95401	BU6#,7#,8# RH	09/1984 - 08/1987	1
53117B - BRACKET, RADIATOR GRILLE, LOWER
53117-95400	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
Common parts
90159-50189
90179-08123
90189-06018
90467-09044
90467-11023
90467-13008
93540-75016
93540-75020
