BU70LV-MD (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU70,86 ; (8409- )BU60,85..TW1

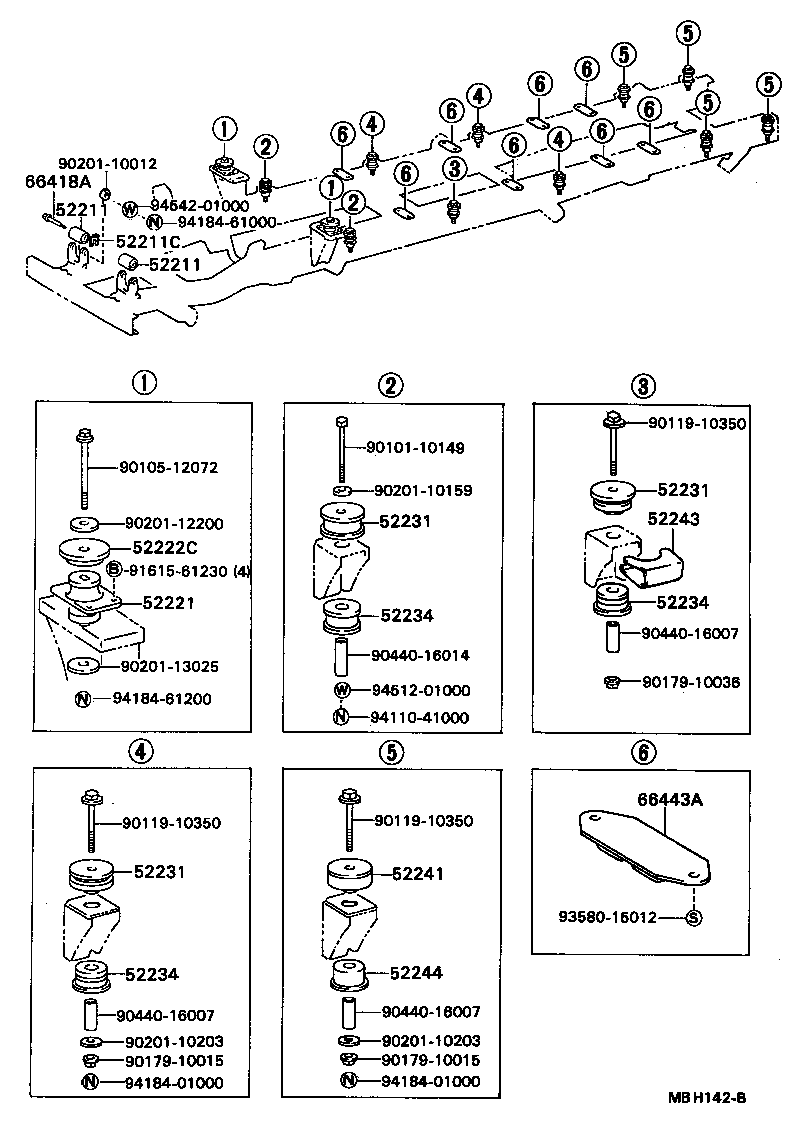

Click highlighted areas on diagram

diagram 52211 52211 52211C 52221 52222C 52231 52231 52231 52234 52234 52234 52241 52243 52244 66418A 66443A 9010110149 9010512072 9011910350 9011910350 9011910350 9017910015 9017910015 9017910036 9020110012 9020110159 9020110203 9020110203 9020112200 9020113025 9044016007 9044016007 9044016007 9044016014 9161561230 9358015012 9411041000 9418401000 9418401000 9418461000 9418461200 9451201000 9454201000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-36040

BU6#,70,80,81,82

 2
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-36040

BU6#,70,80,81,82

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-36020

BU6#,7#,8#

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-36050

BU6#,7#,8#

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52203-36060

BU70

 4
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52203-36060

BU70

 4
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52203-36060

BU70

 4
52234 - CUSHION, BODY MOUNT, NO.3 LOWER
52204-36020

BU70

 4
52234 - CUSHION, BODY MOUNT, NO.3 LOWER
52204-36020

BU70

 4
52234 - CUSHION, BODY MOUNT, NO.3 LOWER
52204-36020

BU70

 4
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52203-35050

BU70

 4
52243 - SUPPORT, CAB MOUNTING CUSHION
52243-92600

BU70

 1
52244 - CUSHION, BODY MOUNT, NO.4 LOWER
52204-35050

BU70

 4
66418A - BOLT, MOUNTING
90109-10076

BU6#,7#,8#

 2
66443A - CUSHION, REAR FLOOR SPACER
66443-92601

BU70

 8
Common parts
90101-10149
90105-12072
90119-10350
90179-10015
90179-10036
90201-10012
90201-10159
90201-10203
90201-12200
90201-13025
90440-16007
90440-16014
91615-61230
93580-15012
94110-41000
94184-01000
94184-61000
94184-61200
94512-01000
94542-01000
