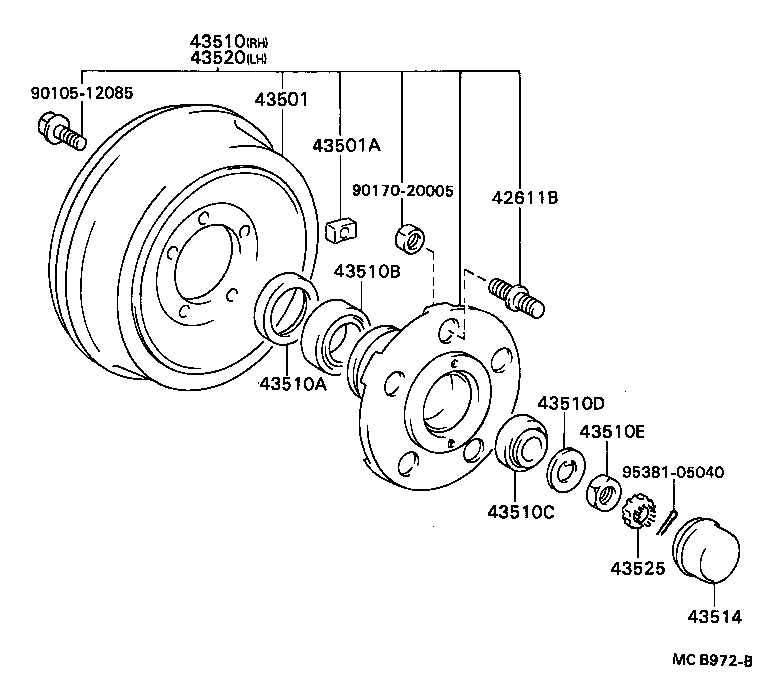

BU63RD-MDTQ (1984)
Toyota Dyna
(8409-8508)BU75,76..GEN ; (8409- )BU60,61..TS..WT ; (8508- )BU75,76,86 ; (851
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02045 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT RH |
5 | ||
| 90942-02046 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT LH |
5 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-68001 |
BU6#,7#,8# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-42045 |
BU6#,7#,8# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-28001 |
BU6#,7#,8# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-27001 |
BU6#,7#,8# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-26001 |
BU6#,7#,8# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-36030 |
BU6#,7#,8# |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-36010 |
BU6#,7#,8# |
2 | ||
| Common parts | ||||
| 90101-12070 | ||||
| 90170-20005 | ||||
| 90201-12007 | ||||
| 95381-05040 | ||||
(8409- )BU60,80..T3..WT ; (8409- )BU61,62,63,65,75,76,81,82,85,86..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02045 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT RH |
5 | ||
| 90942-02046 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT LH |
5 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43512-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01118 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 20G,20G |
1 | ||
| 90937-01121 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 50G,50G |
1 | ||
| 90937-01119 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 30G,30G |
1 | ||
| 90937-01120 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 40G,40G |
1 | ||
| 90937-01117 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 10G,10G |
1 | ||
| 90937-01122 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT 60G,60G |
1 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT..(CBU,IV3) |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-68001 |
BU6#,7#,8# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-42045 |
BU6#,7#,8# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-28001 |
BU6#,7#,8# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-27001 |
BU6#,7#,8# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-26001 |
BU6#,7#,8# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-36030 |
BU6#,7#,8# |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT..(CBU,IV3) |
1 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-36010 |
BU6#,7#,8# |
2 | ||
| Common parts | ||||
| 90105-12085 | ||||
| 90170-20005 | ||||
| 95381-05040 | ||||
