8718 - HEATING & AIR CONDITIONING - COOLER PIPING

BU63RD-MDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8409- )BU6#,80,81,82..RHD

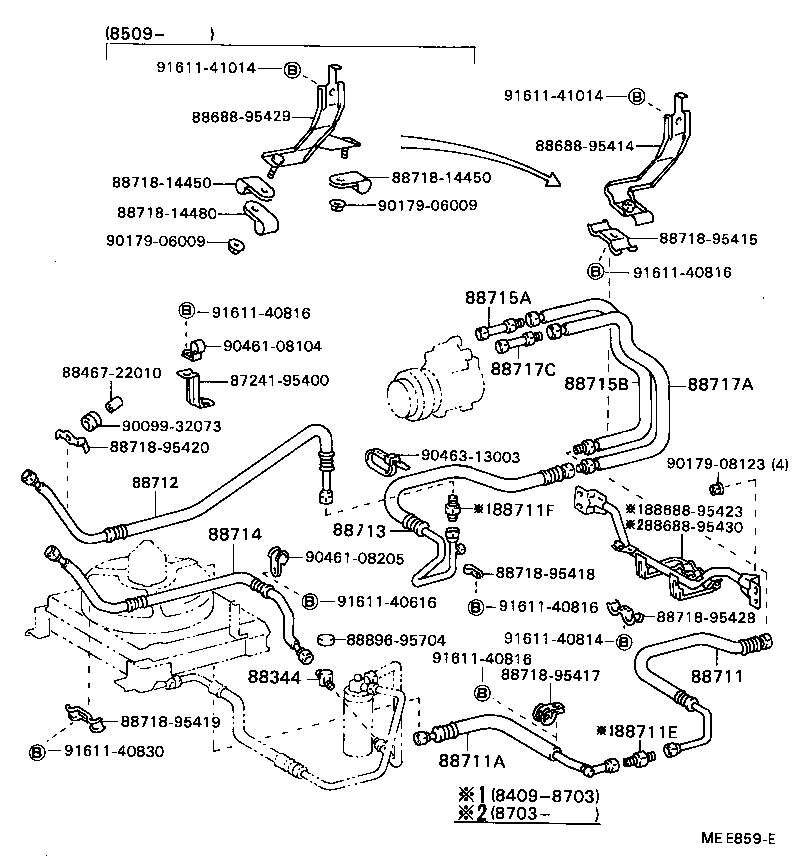

Click highlighted areas on diagram

Part #	Description	Period	Qty
88344 - GLASS SUB-ASSY, SIGHT
88407-95701	BU65..CBU;BU60,61,62,63,70,80,81,82	09/1984 - 08/1987	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95406	BU65..CBU;BU60,63,70,80	09/1984 - 08/1987	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95421	BU65..CBU;BU60,61,62,63,70,80,81,82	03/1987 - 08/1987	1
88711-95409	BU65..CBU;BU60,61,62,63,70,80,81,82	09/1984 - 03/1987	1
88711E - UNION, NO.1(FOR COOLER HOSE)
90404-19009	BU65..CBU;BU60,61,62,63,70,80,81,82	09/1984 - 03/1987	1
88711F - UNION, NO.2(FOR COOLER HOSE)
90404-22005	BU65..CBU;BU60,61,62,63,70,80,81,82	09/1984 - 03/1987	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95410	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-95408	BU60,63,65,70,80	09/1984 - 08/1987	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95407	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95403	BU65..CBU;BU60,61,62,63,70,80,81,82	09/1984 - 08/1987	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-95406	BU65..CBU;BU60,61,62,63,70,80,81,82	08/1985 - 08/1987	1
88715-95404	BU6#,70,80,81,82	09/1984 - 08/1985	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95402	BU65..CBU;BU60,61,62,63,70,80,81,82	09/1984 - 08/1987	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-95401	BU65..CBU;BU60,61,62,63,70,80,81,82	09/1984 - 08/1987	1
Common parts
87241-95400
88467-22010
88688-95414
88688-95423
88688-95429
88688-95430
88718-14450
88718-14480
88718-95415
88718-95417
88718-95418
88718-95419
88718-95420
88718-95428
88896-95704
90099-32073
90179-06009
90179-08123
90461-08104
90461-08205
90463-13003
91611-40616
91611-40814
91611-40816
91611-40830
91611-41014

(8409- )BU6#,70,80,81,82

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-95405	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
88460 - CONDENSER ASSY, COOLER
88460-95405	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400	BU65..CBU;BU60,61,62,63,70,80,81,82	09/1984 - 08/1987	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400	BU65..CBU;BU60,61,62,63,70,80,81,82	09/1984 - 08/1987	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95400	BU60,61,63,80,81..RHD	09/1984 - 08/1987	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95400	BU60,61,63,80,81..RHD	09/1984 - 08/1987	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA 400G	09/1984 - 08/1987	2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA 400G	09/1984 - 08/1987	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406	BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA	09/1984 - 08/1987	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406	BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA	09/1984 - 08/1987	1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410	BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA	09/1984 - 08/1987	1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410	BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA	09/1984 - 08/1987	1
88648E - WIRING, COOLER
88648-95419	BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA	09/1984 - 08/1987	1
88648E - WIRING, COOLER
88648-95419	BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA	09/1984 - 08/1987	1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95403	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95403	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95405	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95405	BU6#,80,81,82..RHD	09/1984 - 08/1987	1
Common parts
88688-95416
88688-95417
88688-95418
88688-95419
88718-95426
88718-95A06
90179-08065
91611-40616
91611-40814
91651-40825
91655-40816
93385-16016
