BU60R-MDP (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )

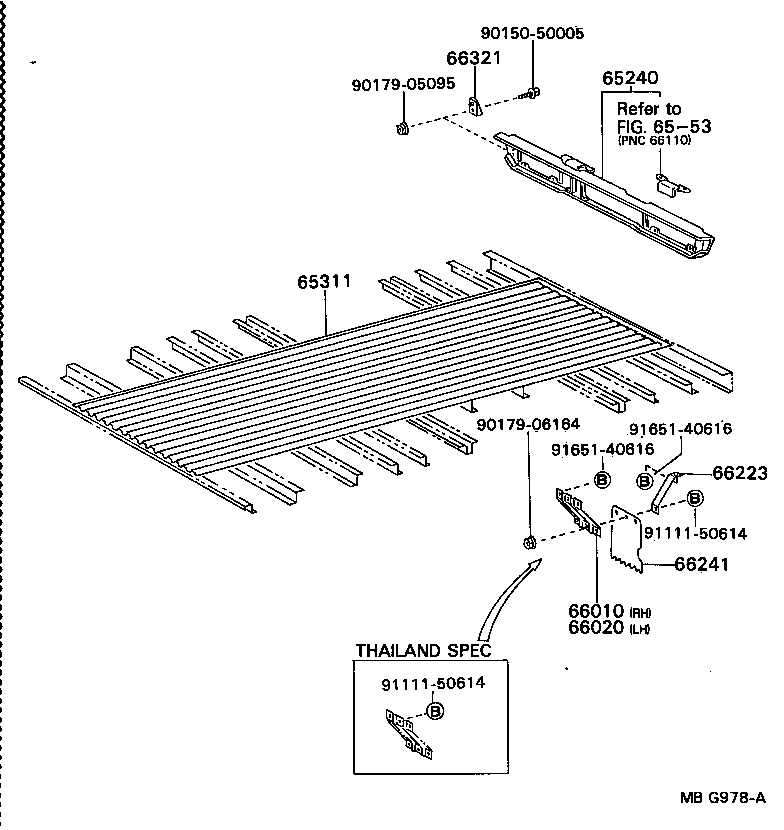

Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(8409- )BU60,61..T1,TW1
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL | ||||
| 65240-95418 |
BU60,61..T1,TW1 |
1 | ||
| 65311 - PANEL, FLOOR, CENTER | ||||
| 65311-95408 |
BU60..TW1 |
1 | ||
| 66010 - FENDER ASSY, REAR BODY, REAR RH | ||||
| 66225-95012 |
BU60,61..T1,TW1 |
1 | ||
| 66020 - FENDER ASSY, REAR BODY, REAR LH | ||||
| 66225-95012 |
BU60,61..T1,TW1 |
1 | ||
| 66223 - STAY, REAR FENDER REAR PLATE | ||||
| 66235-95401 |
BU60,61..T1,TW1 |
2 | ||
| 66241 - MUDGUARD, REAR | ||||
| 66241-95408 |
BU60,61..T1,TW1 RH |
1 | ||
| 66241-95600 |
BU60,61..T1,TW1 LH |
1 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-95406 |
BU60,61..T1,TW1 |
2 | ||
| Common parts | ||||
| 90150-50005 | ||||
| 90179-05095 | ||||
| 90179-06164 | ||||
| 91111-50614 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 6553 | ||||
