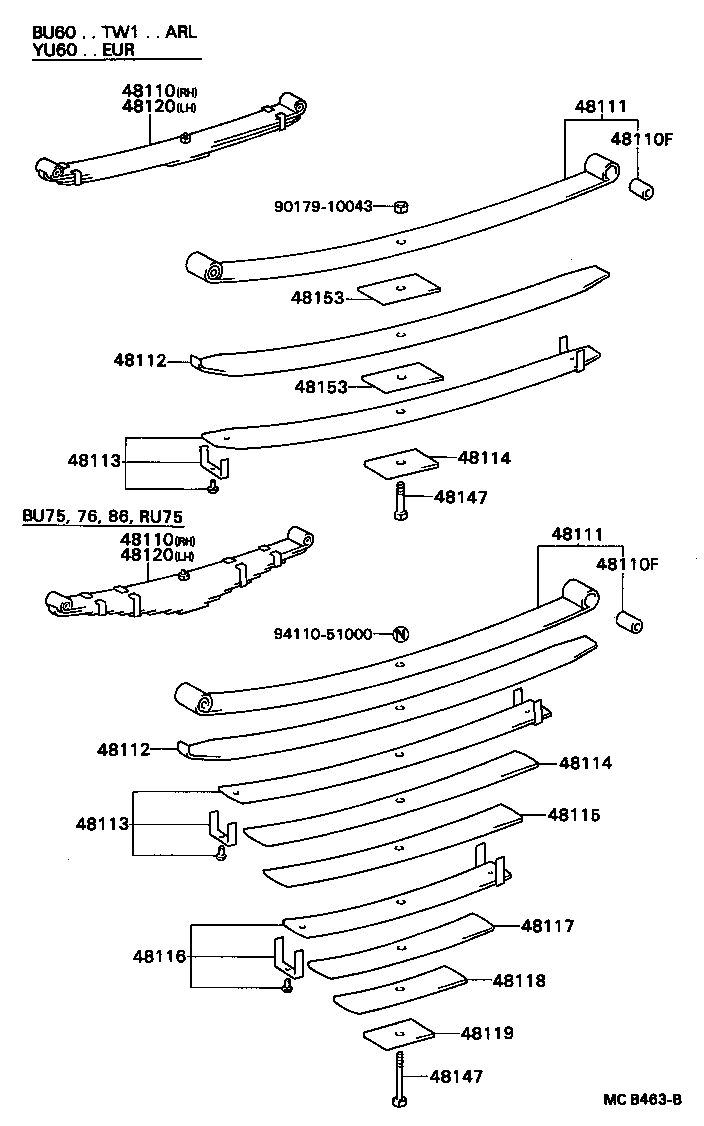

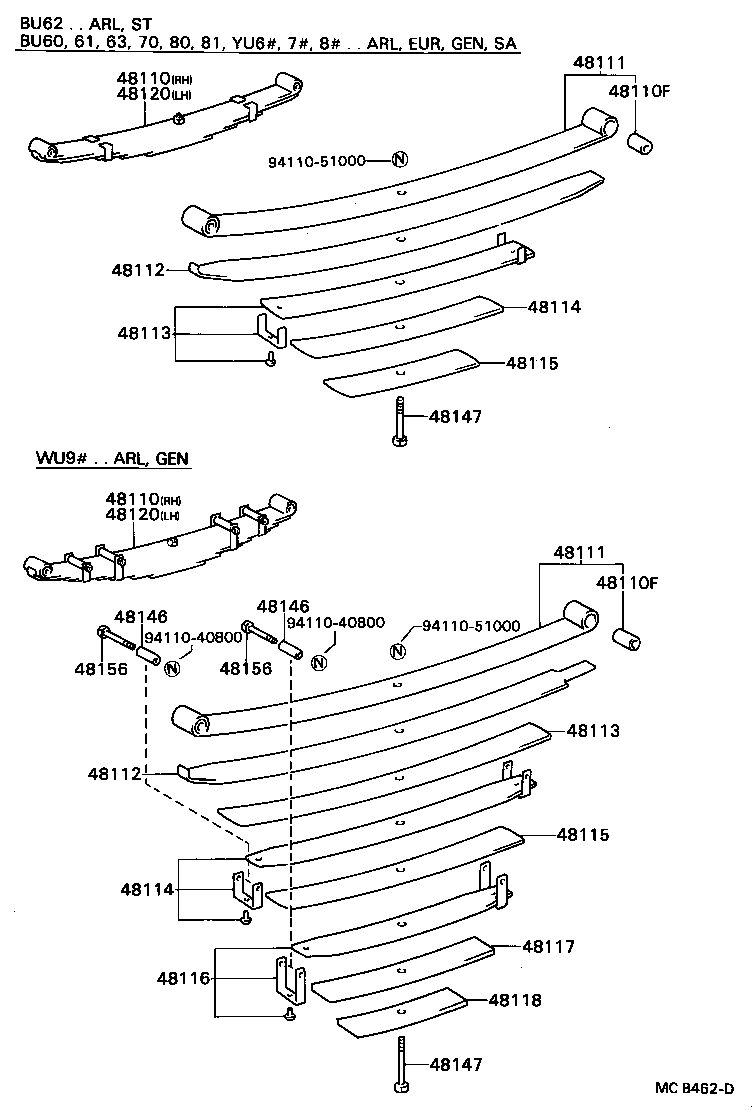

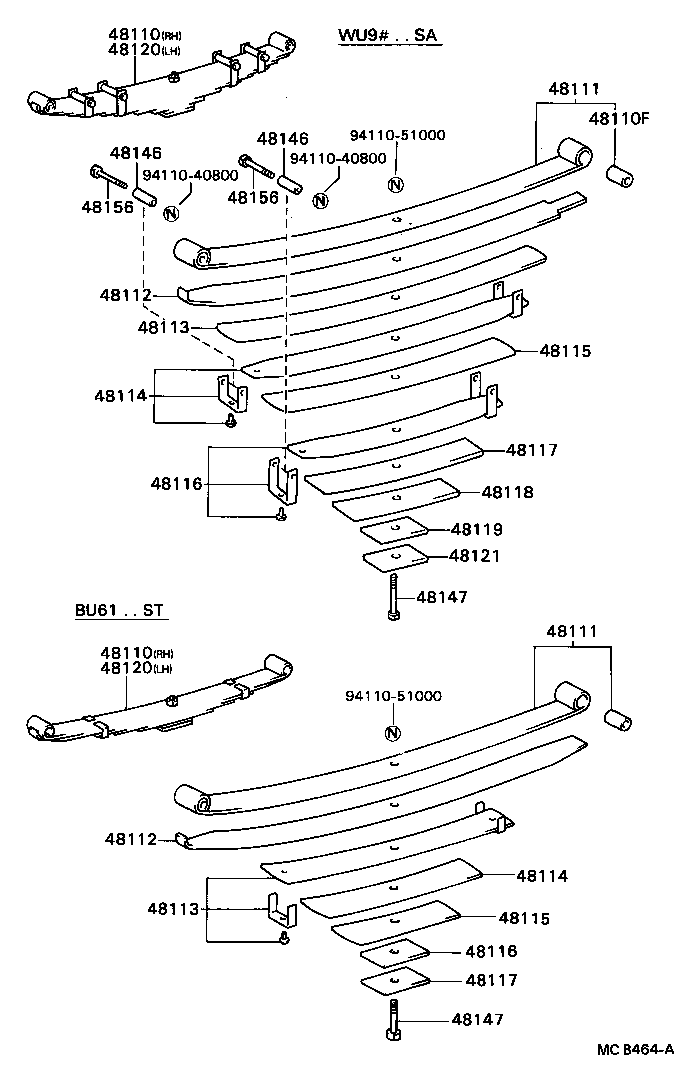

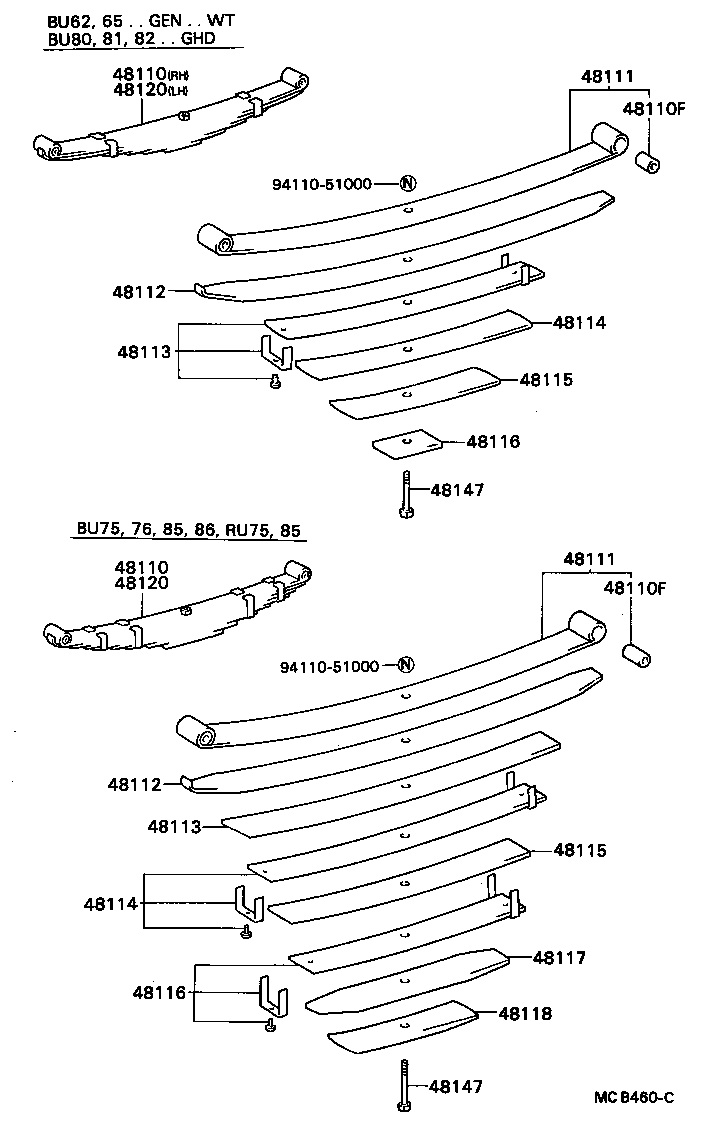

BU60R-MDBT (1984)
Toyota Dyna
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36590 |
BU60,61..RHD..TS..WT..GEN 5-LEAF,NO.1 LEAF T=10 |
1 | ||
| 48110-36600 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36590 |
BU60,61..RHD..TS..WT..GEN 5-LEAF,NO.1 LEAF T=10 |
1 | ||
| 48110-36600 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16003 |
BU6#,70,80,81,82 |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16003 |
BU6#,70,80,81,82 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48101-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48101-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48101-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48101-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48101-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48101-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48112-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48112-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48112-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48112-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48102-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48102-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48102-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48102-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48102-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48102-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48114-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48114-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48114-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48114-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48114-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48114-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48115-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48115-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48115-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48115-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48115-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48115-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36610 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36610 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36560 |
BU60,61,63,70,80,81..ARL,GEN,SA |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36560 |
BU60,61,63,70,80,81..ARL,GEN,SA |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36590 |
BU60,61..RHD..TS..WT..GEN 5-LEAF,NO.1 LEAF T=10 |
1 | ||
| 48110-36600 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36590 |
BU60,61..RHD..TS..WT..GEN 5-LEAF,NO.1 LEAF T=10 |
1 | ||
| 48110-36600 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16003 |
BU6#,70,80,81,82 |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16003 |
BU6#,70,80,81,82 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48101-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48101-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48101-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48101-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48101-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48101-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48112-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48112-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48112-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48112-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48102-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48102-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48102-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48102-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48102-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48102-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48114-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48114-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48114-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48114-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48114-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48114-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48115-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48115-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48115-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48115-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48115-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48115-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36610 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36610 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36560 |
BU60,61,63,70,80,81..ARL,GEN,SA |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36560 |
BU60,61,63,70,80,81..ARL,GEN,SA |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36590 |
BU60,61..RHD..TS..WT..GEN 5-LEAF,NO.1 LEAF T=10 |
1 | ||
| 48110-36600 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36590 |
BU60,61..RHD..TS..WT..GEN 5-LEAF,NO.1 LEAF T=10 |
1 | ||
| 48110-36600 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16003 |
BU6#,70,80,81,82 |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16003 |
BU6#,70,80,81,82 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48101-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48101-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48101-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48101-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48101-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48101-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48112-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48112-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48112-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48112-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48102-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48102-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48102-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48102-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48102-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48102-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48114-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48114-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48114-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48114-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48114-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48114-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48115-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48115-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48115-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36610 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36610 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36560 |
BU60,61,63,70,80,81..ARL,GEN,SA |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36560 |
BU60,61,63,70,80,81..ARL,GEN,SA |
2 | ||
| Common parts | ||||
| 90179-10043 | ||||
| 94110-51000 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36590 |
BU60,61..RHD..TS..WT..GEN 5-LEAF,NO.1 LEAF T=10 |
1 | ||
| 48110-36600 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36590 |
BU60,61..RHD..TS..WT..GEN 5-LEAF,NO.1 LEAF T=10 |
1 | ||
| 48110-36600 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16003 |
BU6#,70,80,81,82 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48101-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48101-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48101-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48101-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48101-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48101-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48112-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48112-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48112-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48112-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48112-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48102-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48102-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48102-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48102-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48102-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48102-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48114-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48114-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48114-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48114-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48114-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48114-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48115-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48115-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48115-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-36610 |
BU60,61..RHD..GEN NO.1 LEAF T=9,LH |
1 | ||
| 48115-36590 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,RH |
1 | ||
| 48115-36600 |
BU60,61..RHD..GEN NO.1 LEAF T=9,RH |
1 | ||
| 48115-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10,LH |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36610 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36610 |
BU60,61..RHD..GEN..(CBU,IV3) 5-LEAF SPRING,NO.1 LEAF T=9 |
1 | ||
| 48110-36740 |
BU60,61..RHD..TS..WT..GEN NO.1 LEAF T=10 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36560 |
BU60,61,63,70,80,81..ARL,GEN,SA |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36560 |
BU60,61,63,70,80,81..ARL,GEN,SA |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )BU6#,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36060 |
BU6#,70,80,81,82 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
BU6#,70,80,81,82 |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48192-35010 |
BU60,61,62,70 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-36080 |
BU6#,7#,8# |
2 | ||
| 48304-36150 |
BU6#,7#,8# |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-36040 |
BU60,61,62,70,80,81,82 |
1 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-36100 |
BU60,61,62,70,80,81,82 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48412-36100 |
BU60,61,62,70,80,81,82 |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48413-36030 |
BU60,61,62,70,80,81,82 |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48413-36030 |
BU60,61,62,70,80,81,82 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU6#,7#,8# |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-25060 |
BU6#,70,80,81,82 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-25060 |
BU6#,70,80,81,82 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90118-16213 |
BU60,61,63,70,80,81..(ARL,GEN,SA)..(CBU,IV3) L=95,L=95 |
4 | ||
| 90118-16214 |
BU6#,70,80,81 L=105,L=105 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-36150 |
BU60,61,63,70,80,81..(ARL,GEN,SA)..(CBU,IV3) |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,7#,8# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,7#,8# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU6#,7#,8# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,7#,8# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,7#,8# |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BU6#,7#,8# |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,7#,8# |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16004 |
BU6#,7#,8# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-36150 |
BU60,61,63,70,80,81..(ARL,GEN,SA)..(CBU,IV3) |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
BU6#,7#,8# |
2 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90119-10070 | ||||
| 90119-10429 | ||||
| 90170-10082 | ||||
| 90170-14006 | ||||
| 90170-16139 | ||||
| 90201-14005 | ||||
| 91121-71045 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91615-60825 | ||||
| 94110-41000 | ||||
| 94110-71600 | ||||
| 94115-41600 | ||||
| 94115-71600 | ||||
| 94120-41000 | ||||
| 94182-10800 | ||||
| 94184-01000 | ||||
| 94512-01600 | ||||
| 94621-11600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
