BU60R-MDBT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

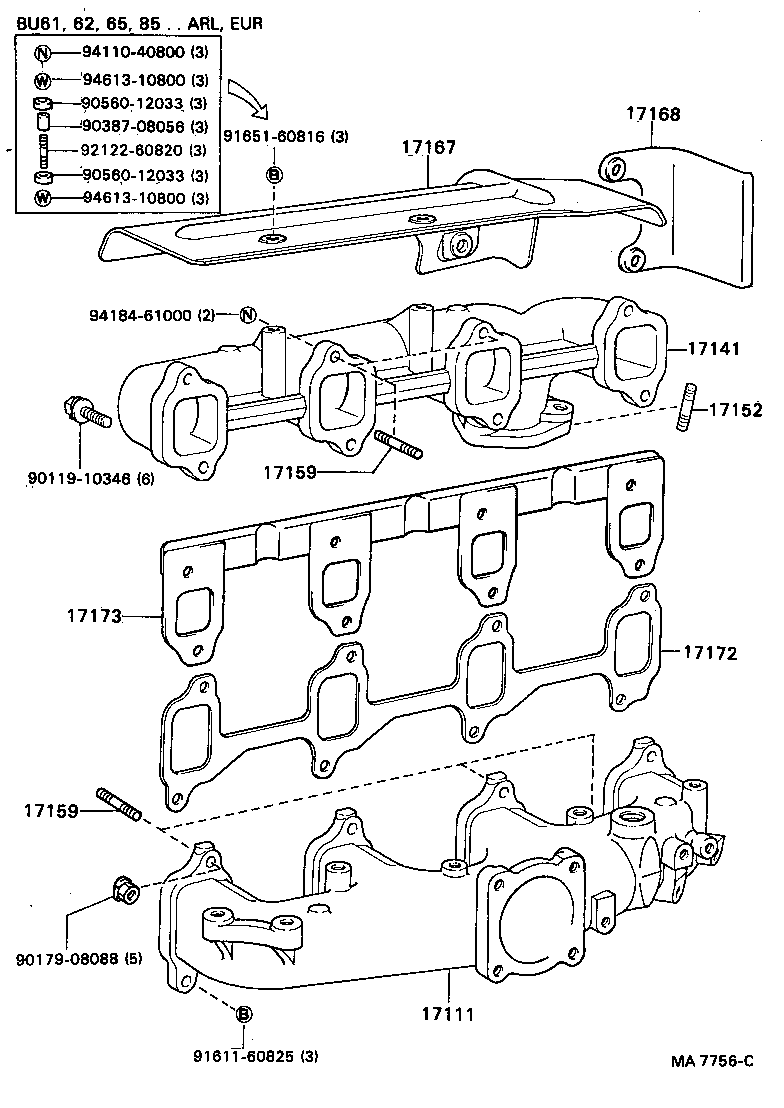

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17172 17173 9011910346 9017908088 9038708056 9056012033 9056012033 9161160825 9165160816 9212260820 9411040800 9418461000 9461310800 9461310800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-56150

B..BU60,63,70,75,80

 1
17141 - MANIFOLD, EXHAUST
17141-56050

B,11B,13B..BU6#,7#,8#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10056

B,11B,13B..BU6#,7#,8#

 3
90116-10087

B,11B,13B..BU6#,7#,8#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825

B,11B,13B..BU6#,7#,8#

INTAKE MANIFOLD

 5
90116-10098

B,11B,13B..BU6#,7#,8#

EXHAUST MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825

B,11B,13B..BU6#,7#,8#

INTAKE MANIFOLD

 5
90116-10098

B,11B,13B..BU6#,7#,8#

EXHAUST MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56022

B,11B,13B..BU60,63,7#,80,81,82,86

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-58030

B,11B,13B..BU6#,7#,8#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56022

B,11B,13B..BU6#,7#,8#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-58010

B,11B,13B..BU6#,7#,8#

 1
Common parts
90119-10346
90179-08088
90387-08056
90560-12033
91611-60825
91651-60816
92122-60820
94110-40800
94184-61000
94613-10800
