BU60R-MDB (1984)
Toyota Dyna
(8409- )

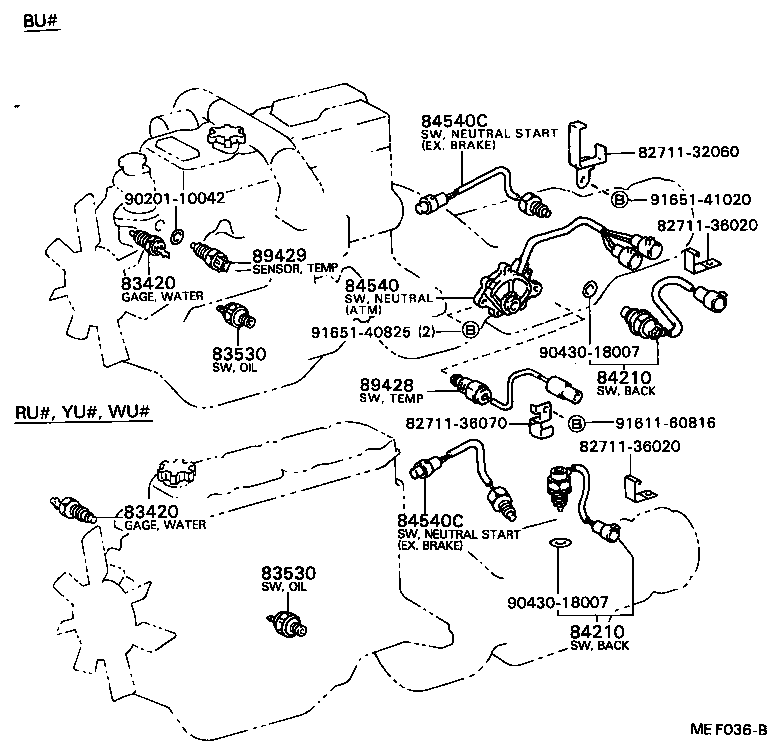

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BU6#,7#,8# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BU6#,7#,8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
BU6#,7#,8# |
1 | ||
| 83530-14010 |
BU6#,7#,8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
BU6#,7#,8# |
1 | ||
| 83530-14010 |
BU6#,7#,8# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
BU65..CBU;BU60,61,62,63,7#,8#..5F |
1 | ||
| 84210-36010 |
BU6#,7#,8# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
BU65..CBU;BU60,61,62,63,7#,8#..5F |
1 | ||
| 84210-36010 |
BU6#,7#,8# |
1 | ||
| Common parts | ||||
| 82711-32060 | ||||
| 82711-36020 | ||||
| 82711-36070 | ||||
| 90201-10042 | ||||
| 90430-18007 | ||||
| 91611-60816 | ||||
| 91651-40825 | ||||
| 91651-41020 | ||||

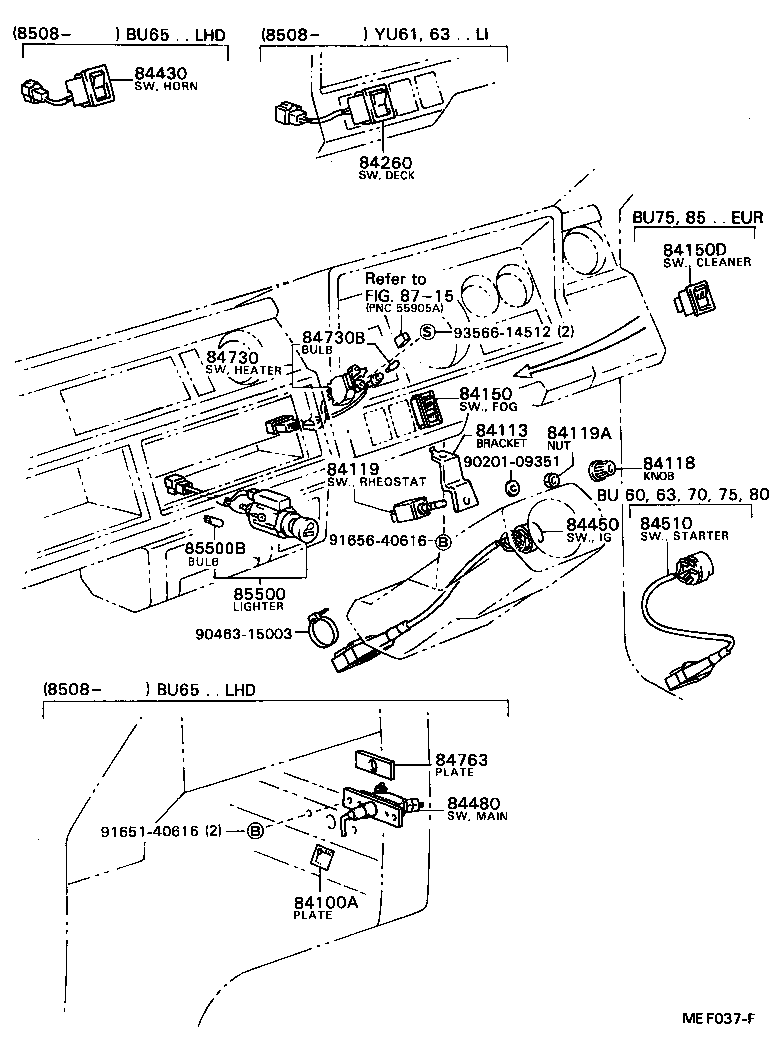

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-95400 |
BU85..GEN..(CBU,IV3);BU60,61,62,63,7#,80,81,82,86..GEN,GHD |
1 | ||
| 84510 - SWITCH ASSY, STARTER | ||||
| 84510-36100 |
BU60,63,70,75,80 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95404 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA 14V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95403 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA 14V 1.4W |
1 | ||
| Common parts | ||||
| 90201-09351 | ||||
| 90463-15003 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8715 | ||||

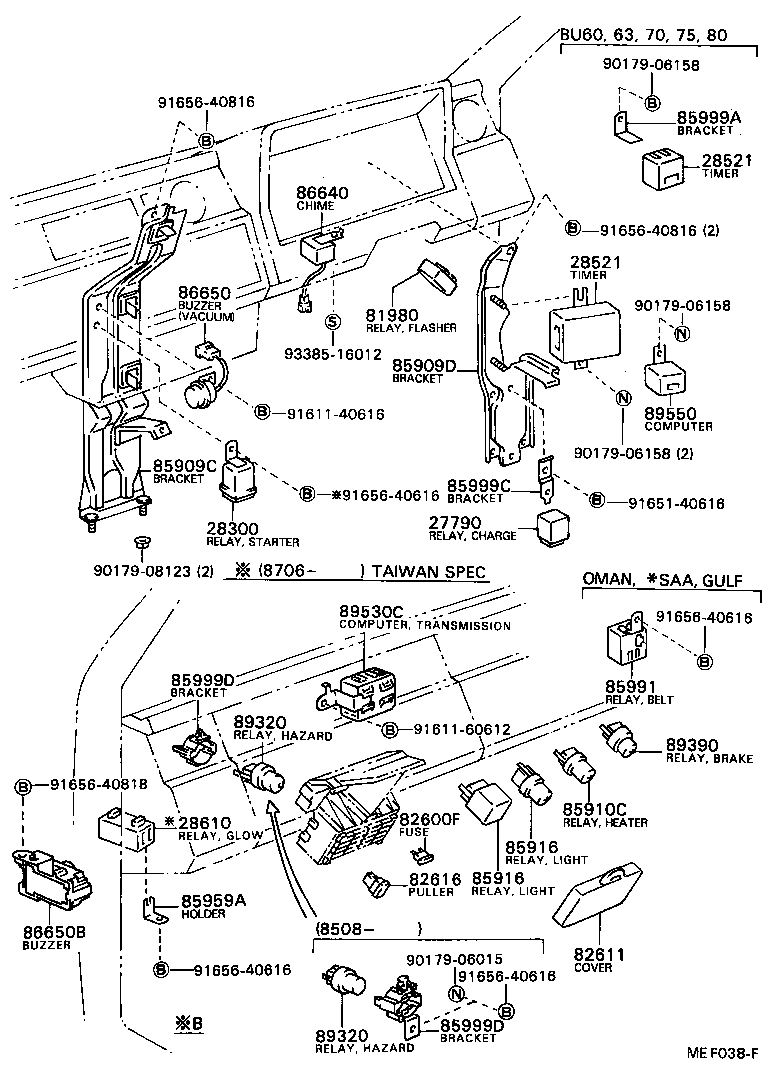

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
B,11B,13B..BU6#,7#,80,81,85,86..ARL,GEN,SA 12V |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54021 |
B..BU60,63,70,75,80..ARL,GEN,GHD 12V |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54021 |
B..BU60,63,70,75,80..ARL,GEN,GHD 12V |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
B..BU60,63,70,75,80..ARL,GEN,GHD 12V |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN |
1 | ||
| 81980-16010 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
BU6#,7#,8# 20A,YELLOW,20A |
2 | ||
| 90982-09003 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA 15A,15A |
8 | ||
| 90982-09005 |
BU6#,7#,8# 7.5A,7.5A |
13 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95401 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
BU6#,7#,8# |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95400 |
BU6#,80,81,82..RHD |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85907-95400 |
BU6#,75,76,8#..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA 12V |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA 12V,TAILLAMP |
1 | ||
| 90987-02006 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA 12V,HEADLAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA 12V,TAILLAMP |
1 | ||
| 90987-02006 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA 12V,HEADLAMP |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36010 |
BU60,63,70,75,80 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
BU60,63,70,75,80 |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-25030 |
BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA |
1 | ||
| Common parts | ||||
| 90179-06015 | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91611-40616 | ||||
| 91611-60612 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 91656-40818 | ||||
| 93385-16012 | ||||

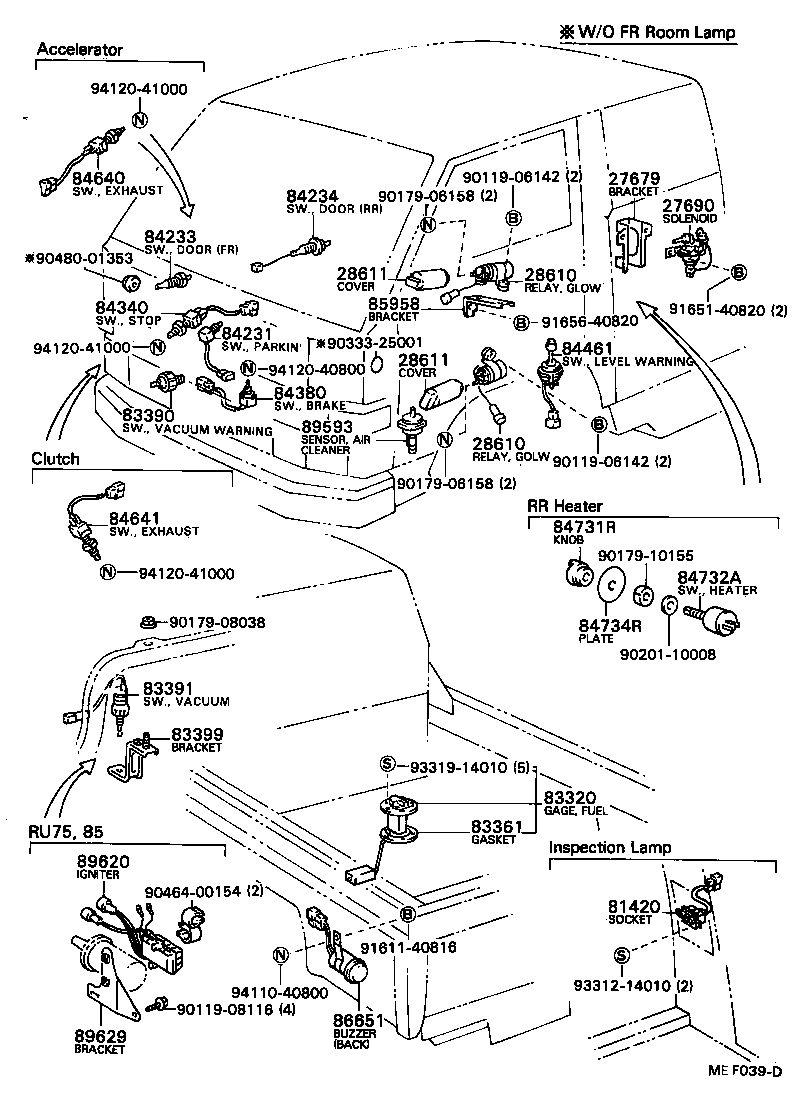

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
B..BU60,63,70,75,80..ARL,GEN,GHD 12V |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
B..BU60,63,70,75,80..ARL,GEN,GHD 12V |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39555 |
BU63,65;BU60,61,62,75,76,80,81,82,85..T3 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BU6#,7#,8# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-60010 |
BU6#,7#,8# |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84550-25010 |
BU6#,7#,8# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
BU6#,7#,8#..CBU,IV3 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
BU6#,7#,8# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-30040 |
BU6#,7#,8# |
1 | ||
| 84461-60020 |
BU6#,7#,8# |
1 | ||
| 86651 - BUZZER ASSY, BACK | ||||
| 86650-95409 |
BU6#,7#,8#..ARL,GEN,GHD 12V |
1 | ||
| 86650-95418 |
BU65..CBU;BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA 12V |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
BU6#,7#,8# |
1 | ||
| 89421-36020 |
BU6#,7#,8# |
1 | ||
| Common parts | ||||
| 90119-06142 | ||||
| 90119-08116 | ||||
| 90179-06158 | ||||
| 90179-08038 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90333-25001 | ||||
| 90464-00154 | ||||
| 90480-01353 | ||||
| 91611-40816 | ||||
| 91651-40820 | ||||
| 91656-40820 | ||||
| 93312-14010 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||

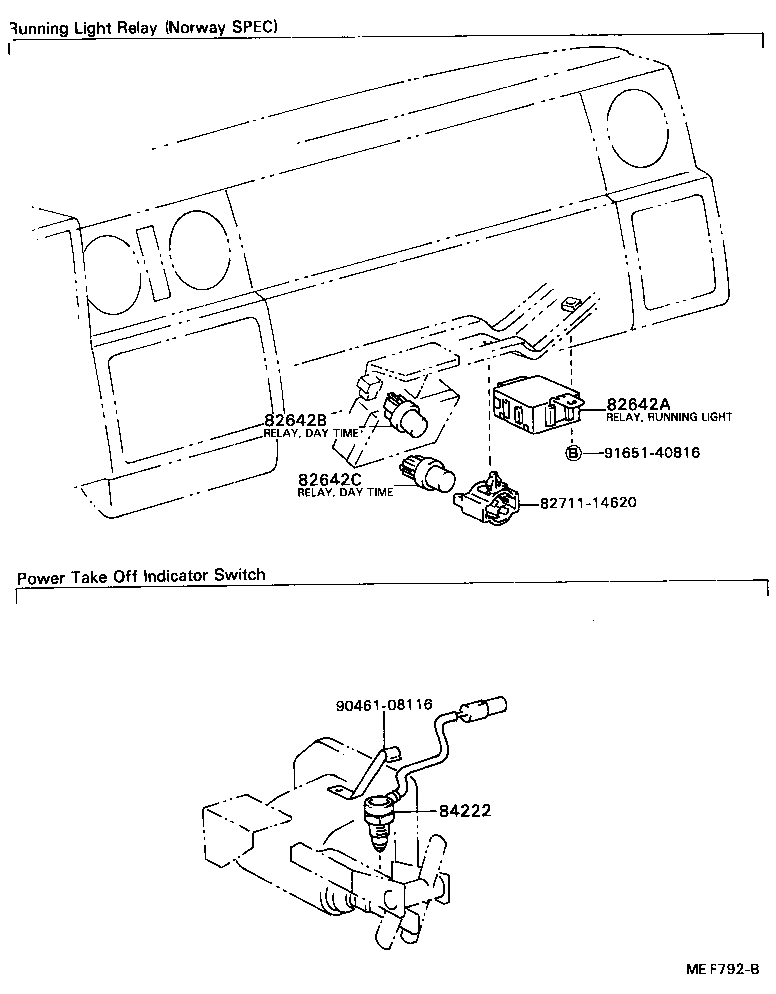

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14620 | ||||
| 90461-08116 | ||||
| 91651-40816 | ||||

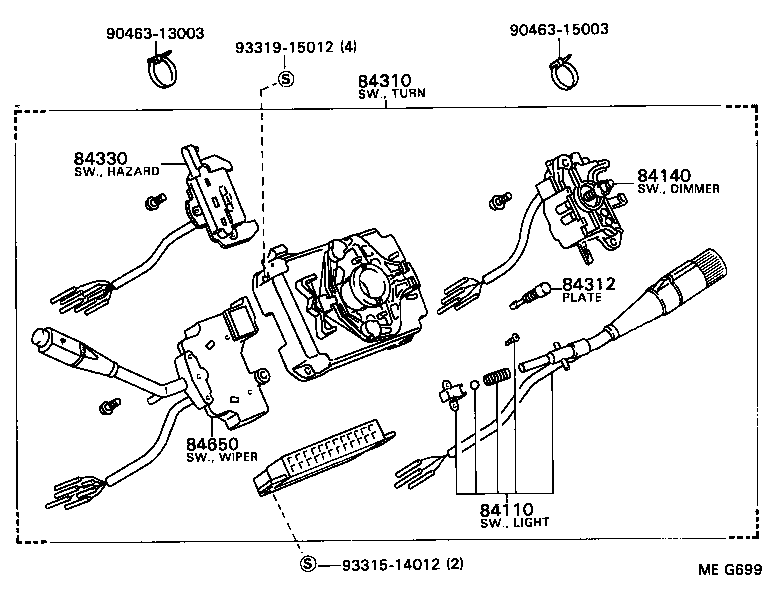

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39305 |
BU6#,75,76,8#..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-39145 |
BU6#,75,76,8#..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36270 |
BU6#,75,76,8#..RHD W/*EB |
1 | ||
| 84310-36310 |
BU6#,75,76,8#..RHD |
1 | ||
| 84310-36310 |
BU6#,75,76,8#..RHD..(ARL,GEN,GHD) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BU6#,7#,8# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39265 |
BU6#,75,76,8#..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39545 |
BU6#,75,76,8#..RHD..(ARL,GEN,GHD) |
1 | ||
| 84652-39545 |
BU6#,75,76,8#..RHD |
1 | ||
| 84652-39515 |
BU6#,75,76,8#..RHD W/*EB |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
