BU60R-MD (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

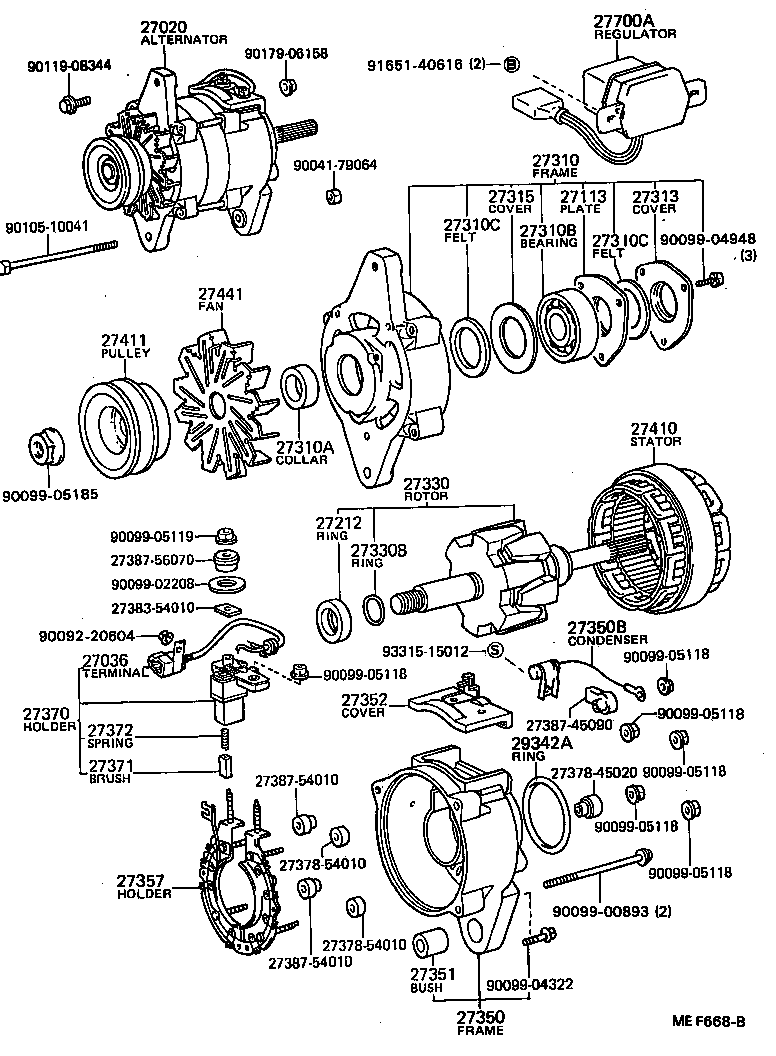

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 29342A 9004179064 9009080509 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9010510041 9011908344 9017906158 9165140616 9331915008
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56270

B,13B..BU6#,7#,80,85..ARL,GEN

12V 45A

 1
27020-56340

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A,12V 45A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-57060

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56140

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27310-56140

B,13B..BU6#,7#,8#

12V 45A,24V 20A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56340

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27330-54200

B,13B..BU6#,7#,80,85..ARL,GEN

12V 45A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56140

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52082

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27352 - COVER, FRAME BRUSH
27388-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-54190

B,13B..BU6#,7#,80,85..ARL,GEN

12V 45A

 1
27357-54190

B,11B,13B..BU6#,7#,8#

12V 45A,24V 25A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-57060

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-64090

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27411 - PULLEY, ALTERNATOR
27411-57060

B,13B..BU60,62,63,70,75,80,82,85

12V 45A,24V 20A,25A

 1
27441 - FAN, ALTERNATOR
27441-56090

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-56060

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
29342A - PACKING, VACUUM PUMP
90099-14055

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90090-80509
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90105-10041
90119-08344
90179-06158
91651-40616
93319-15008

(8409-8412)

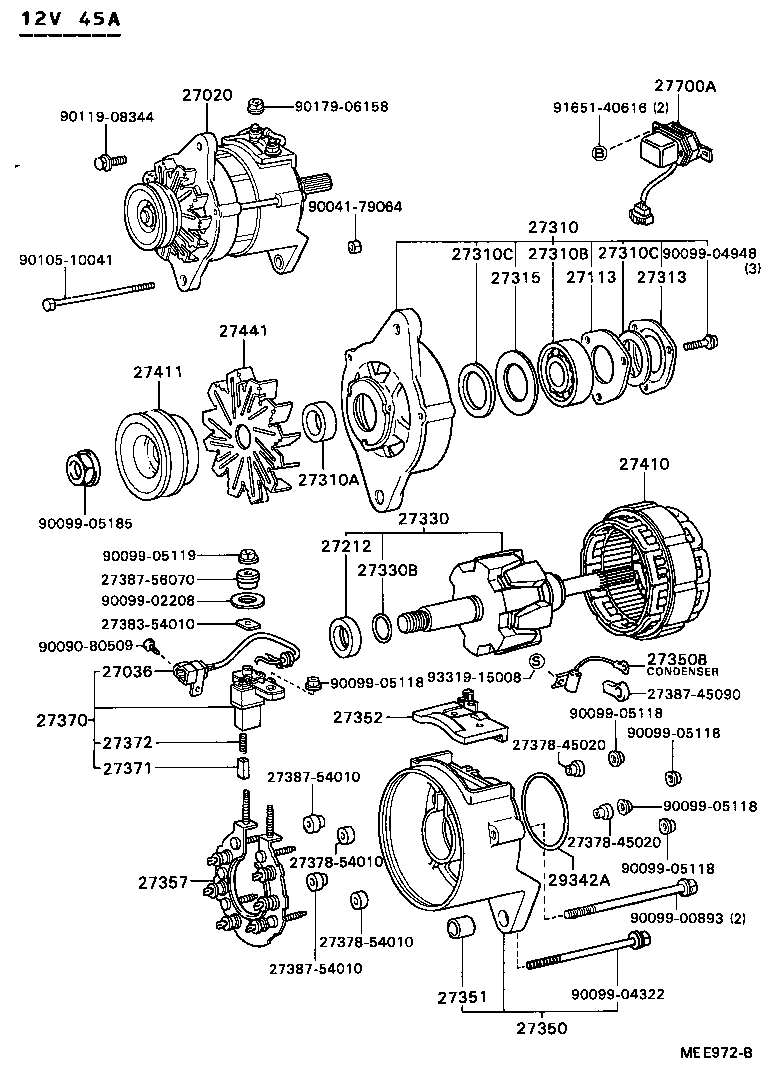

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27353 27356 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 29342A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9010510041 9011908344 9017906158 9165140616 9331515010 9331515012 9331915008
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56270

B,13B..BU6#,7#,80,85..ARL,GEN

12V 45A

 1
27020-56340

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A,12V 45A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-57060

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56140

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27310-56140

B,13B..BU6#,7#,8#

12V 45A,24V 20A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56340

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27330-54200

B,13B..BU6#,7#,80,85..ARL,GEN

12V 45A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56140

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52082

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27352 - COVER, FRAME BRUSH
27388-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-57060

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-64090

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27411 - PULLEY, ALTERNATOR
27411-57060

B,13B..BU60,62,63,70,75,80,82,85

12V 45A,24V 20A,25A

 1
27441 - FAN, ALTERNATOR
27441-56090

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-56060

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
29342A - PACKING, VACUUM PUMP
90099-14055

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90105-10041
90119-08344
90179-06158
91651-40616
93315-15010
93315-15012
93319-15008

(8412- )

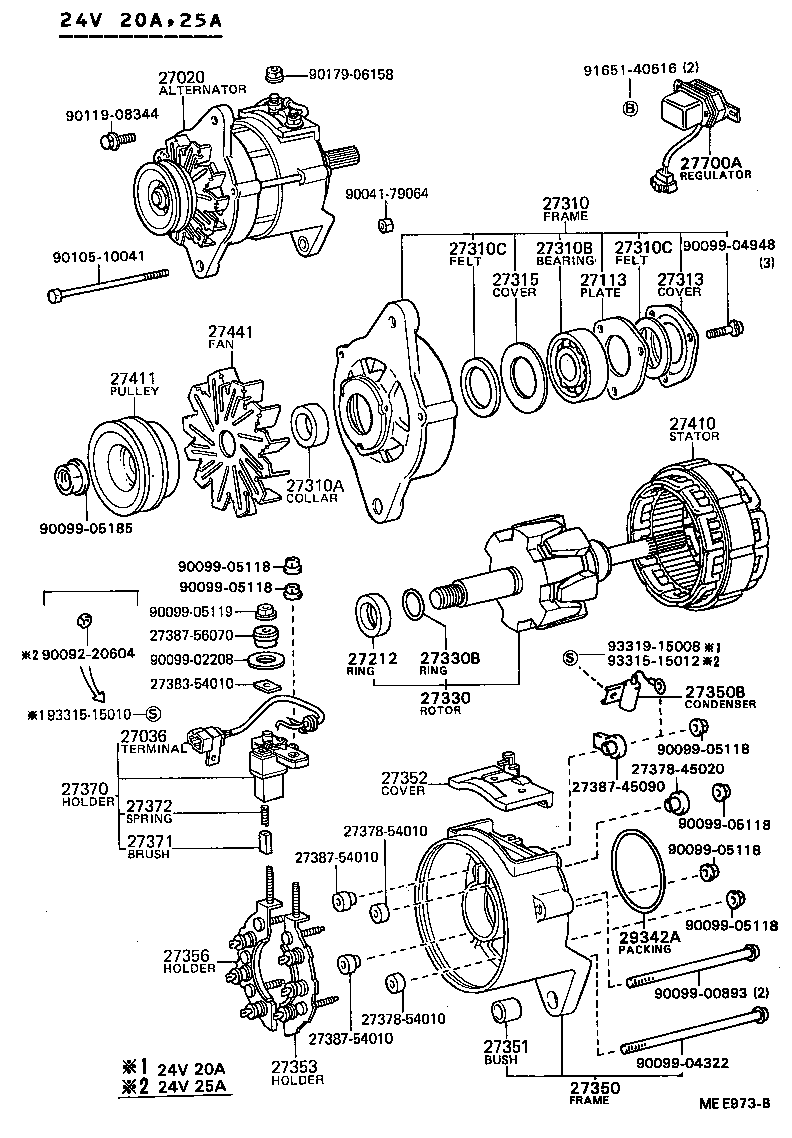

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 29342A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9010510041 9011908344 9017906158 9165140616 9331515012
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56270

B,13B..BU6#,7#,80,85..ARL,GEN

12V 45A

 1
27020-56340

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A,12V 45A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-57060

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56140

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27310-56140

B,13B..BU6#,7#,8#

12V 45A,24V 20A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56340

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27330-54200

B,13B..BU6#,7#,80,85..ARL,GEN

12V 45A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56140

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52082

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27352 - COVER, FRAME BRUSH
27388-57060

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-54190

B,13B..BU6#,7#,80,85..ARL,GEN

12V 45A

 1
27357-54190

B,11B,13B..BU6#,7#,8#

12V 45A,24V 25A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-57060

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-64090

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
27411 - PULLEY, ALTERNATOR
27411-57060

B,13B..BU60,62,63,70,75,80,82,85

12V 45A,24V 20A,25A

 1
27441 - FAN, ALTERNATOR
27441-56090

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-56060

11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA

12V 45A

 1
29342A - PACKING, VACUUM PUMP
90099-14055

B,11B,13B..BU6#,7#,8#

12V 45A,24V 20A,25A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90105-10041
90119-08344
90179-06158
91651-40616
93315-15012
