BU60R-MD (1984)
Toyota Dyna
(8409- )B,11B,13B..BU6#,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56012 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-67103 |
B,11B,13B..BU6#,7#,8# |
2 | ||
| 90044-60053 |
B,11B,13B..BU6#,7#,8# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-67103 |
B,11B,13B..BU6#,7#,8# |
2 | ||
| 90044-60053 |
B,11B,13B..BU6#,7#,8# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56040 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03066 |
B,11B,13B..BU6#,7#,8#..ARL,GEN,GHD,SA *WAX 82-95,*WAX 82-95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-71010 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56060 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56020 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56020 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 16361 - FAN | ||||
| 16361-56040 |
B,11B,13B..BU60,63,70,80,81,82 |
1 | ||
| 16361 - FAN | ||||
| 16361-56040 |
B,11B,13B..BU60,63,70,80,81,82 |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-56020 |
B,11B,13B..BU60,63,70,76,80,81,82,86 |
1 | ||
| 16365-56021 |
B,11B,13B..BU60,63,70,76,80,81,82,86 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-56030 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-56160 |
B,11B..BU60,63,65,70,80 |
1 | ||
| 16400-56161 |
B,11B..BU60,63,65,70,80 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-58090 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
B,11B,13B..BU6#,7#,8# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56120 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16470-56121 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56120 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16470-56121 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56120 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16470-56121 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12048 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 *H,L=200,PIPE TO PIPE |
1 | ||
| 90445-12043 |
B,11B,13B..BU6#,70,80,81,82 *H,L=360,PIPE TO PIPE |
1 | ||
| 90910-05174 |
B,11B,13B..BU6#,70,80,81,82 L=420,WATER OUTLET TO PIPE |
1 | ||
| 16575-56010 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 PIPE TO PIPE |
1 | ||
| 90445-12038 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 L=900,TANK TO PIPE |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12048 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 *H,L=200,PIPE TO PIPE |
1 | ||
| 90445-12043 |
B,11B,13B..BU6#,70,80,81,82 *H,L=360,PIPE TO PIPE |
1 | ||
| 90910-05174 |
B,11B,13B..BU6#,70,80,81,82 L=420,WATER OUTLET TO PIPE |
1 | ||
| 16575-56010 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 PIPE TO PIPE |
1 | ||
| 90445-12038 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 L=900,TANK TO PIPE |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12048 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 *H,L=200,PIPE TO PIPE |
1 | ||
| 90445-12043 |
B,11B,13B..BU6#,70,80,81,82 *H,L=360,PIPE TO PIPE |
1 | ||
| 90910-05174 |
B,11B,13B..BU6#,70,80,81,82 L=420,WATER OUTLET TO PIPE |
1 | ||
| 16575-56010 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 PIPE TO PIPE |
1 | ||
| 90445-12038 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 L=900,TANK TO PIPE |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,11B,13B..BU6#,7#,8# |
6 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,11B,13B..BU6#,7#,8# |
6 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,11B,13B..BU6#,7#,8# |
6 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,11B,13B..BU6#,7#,8# |
6 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,11B,13B..BU6#,7#,8# |
6 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,11B,13B..BU6#,7#,8# |
6 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-56050 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-56050 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-56050 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-56050 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 |
1 | ||
| 16405-56052 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16405-56051 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-56050 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 |
1 | ||
| 16405-56052 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16405-56051 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-56110 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16472-56110 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-56110 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16472-56110 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-56110 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 |
1 | ||
| 16472-56110 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-56040 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,13B..BU6#,7#,8# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,13B..BU6#,7#,8# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56080 |
B,11B,13B..BU6#,70,80,81,82 WATER PUMP SIDE |
1 | ||
| 16573-56031 |
B,11B,13B..BU6#,70,80,81,82 RADIATOR SIDE |
1 | ||
| 16573-56030 |
B,11B,13B..BU6#,70,80,81,82 RADIATOR SIDE |
1 | ||
| 16572-56081 |
B,11B,13B..BU6#,70,80,81,82 WATER PUMP SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56080 |
B,11B,13B..BU6#,70,80,81,82 WATER PUMP SIDE |
1 | ||
| 16573-56031 |
B,11B,13B..BU6#,70,80,81,82 RADIATOR SIDE |
1 | ||
| 16573-56030 |
B,11B,13B..BU6#,70,80,81,82 RADIATOR SIDE |
1 | ||
| 16572-56081 |
B,11B,13B..BU6#,70,80,81,82 WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,13B..BU6#,70,80,81,82 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,13B..BU6#,70,80,81,82 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10560 |
B,11B,13B..BU6#,70,80,81,82 WATER PUMP SIDE |
1 | ||
| 96111-10510 |
B,11B,13B..BU6#,70,80,81,82 PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,13B..BU6#,70,80,81,82 WATER PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10560 |
B,11B,13B..BU6#,70,80,81,82 WATER PUMP SIDE |
1 | ||
| 96111-10510 |
B,11B,13B..BU6#,70,80,81,82 PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,13B..BU6#,70,80,81,82 WATER PUMP SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-56031 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 16577-56030 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 16591 - PIPE, RADIATOR | ||||
| 16591-56040 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 NO.2 |
1 | ||
| 16591-56010 |
B,11B,13B..BU6#,70,80,81,82 NO.1 |
1 | ||
| 16591-56020 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 NO.2 |
1 | ||
| 16591 - PIPE, RADIATOR | ||||
| 16591-56040 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82 NO.2 |
1 | ||
| 16591-56010 |
B,11B,13B..BU6#,70,80,81,82 NO.1 |
1 | ||
| 16591-56020 |
B..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82 NO.2 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-56280 |
B..BU60,63,70,80 |
1 | ||
| 16701-56281 |
B..BU60,63,70,80 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08143 | ||||
| 90179-08146 | ||||
| 90341-12006 | ||||
| 90430-12221 | ||||
| 90462-08034 | ||||
| 90462-08035 | ||||
| 90467-11085 | ||||
| 90929-01095 | ||||
| 91611-40820 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91611-61025 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60612 | ||||
| 91651-60616 | ||||

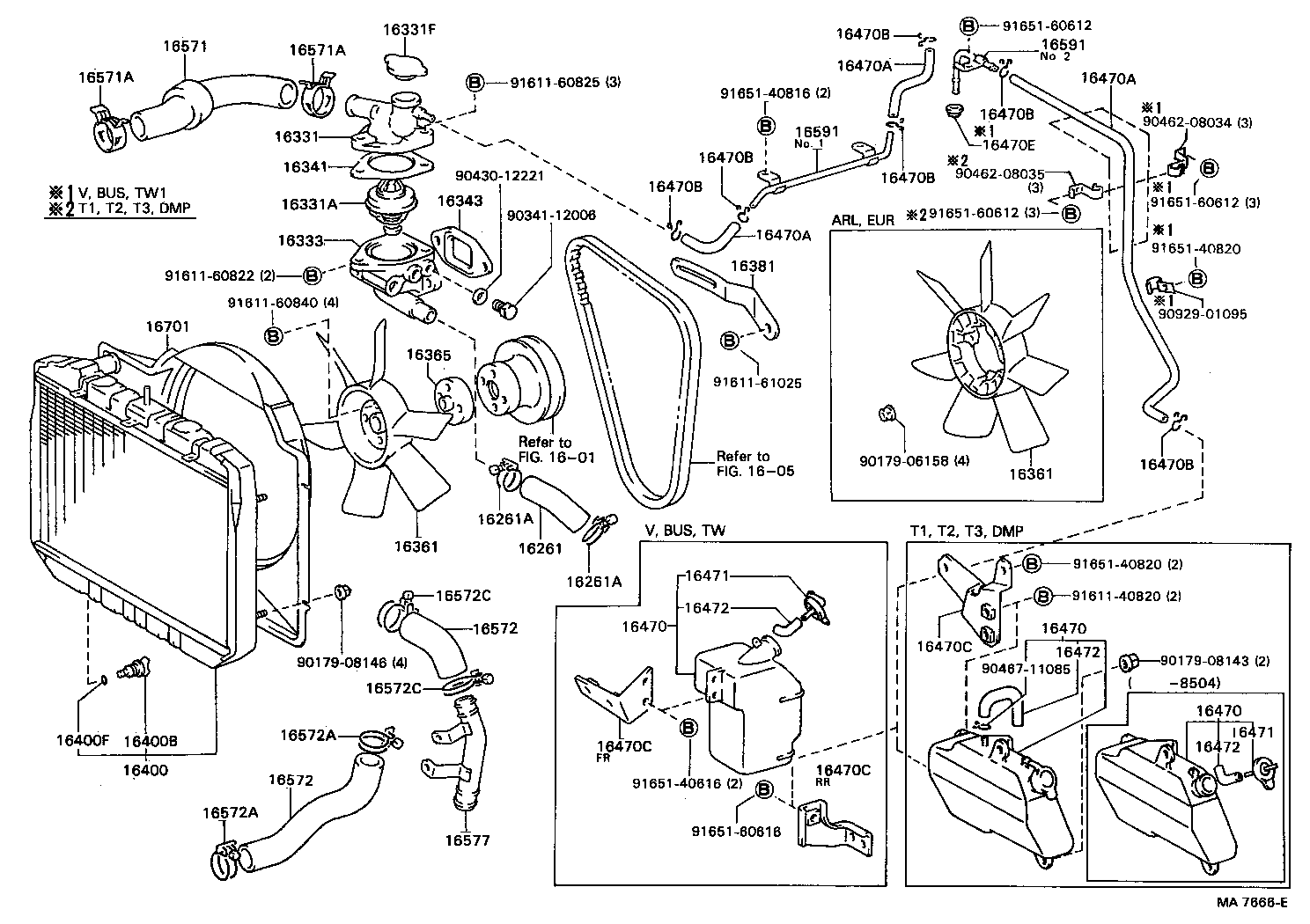

| Linked diagrams | ||||
| 1601 | ||||
| 1605 | ||||
