BU60L-MDBT (1984)
Toyota Dyna

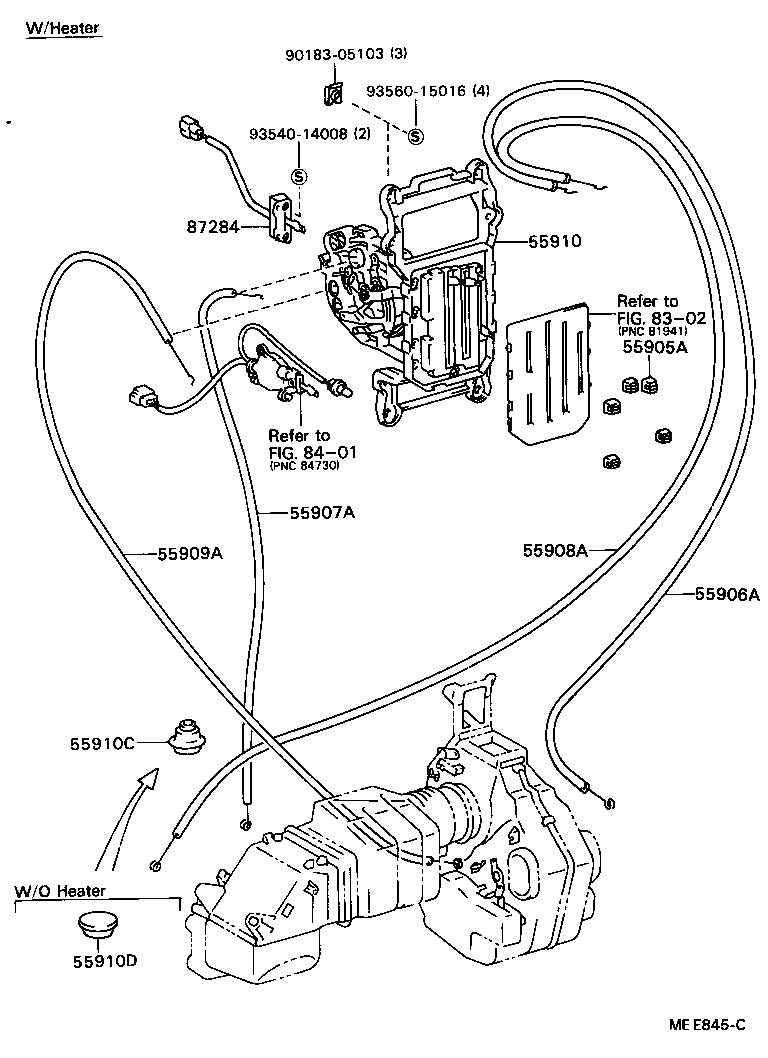

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89110 |
BU6#,7#,8# CABLE LEVER |
3 | ||
| 55905-95J01 |
BU6#,7#,8# BLOWER SW OR VARIABLE RESISTOR |
2 | ||
| 55905-10110 |
BU6#,7#,8# CABLE LEVER |
3 | ||
| 55905-95707 |
BU6#,7#,8# BLOWER SW OR VARIABLE RESISTOR |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95406 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95406 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
BU6#,70,80,81,82 |
1 | ||
| 55908-95404 |
BU6#,70,80,81,82..GEN,GHD W/FOOT VENTILATOR |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95406 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95410 |
BU60,61,62,63,7#,8#..GEN,GHD W/*BV |
1 | ||
| 55910-95411 |
BU6#,7#,8#..GEN,GHD W/FOOT VENTILATOR |
1 | ||
| 55910-95409 |
BU6#,7#,8# W/HEATER |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
BU6#,70,80,81,82 |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
BU6#,70,80,81,82 |
1 | ||
| 90950-01127 |
BU60,61,62,63,70,80,81,82..GEN,GHD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
BU60,61,62,63,7#,8#..GEN,GHD,SA W/COOLER |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93540-14008 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

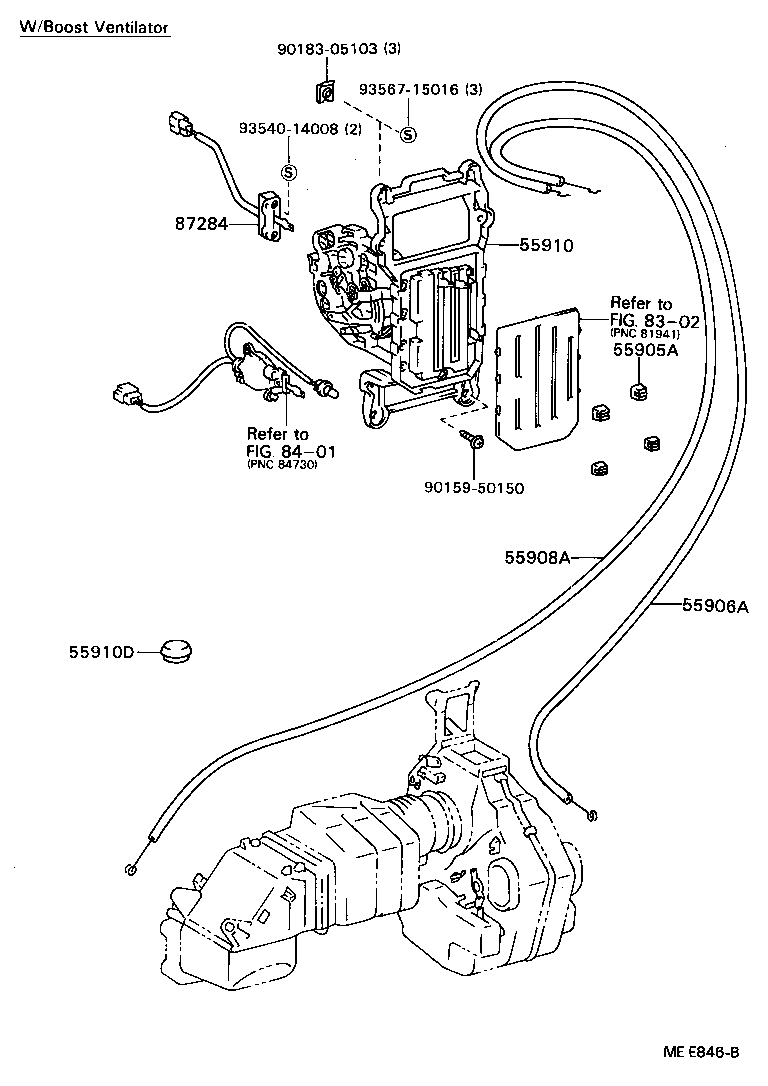

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89110 |
BU6#,7#,8# CABLE LEVER |
3 | ||
| 55905-95J01 |
BU6#,7#,8# BLOWER SW OR VARIABLE RESISTOR |
2 | ||
| 55905-10110 |
BU6#,7#,8# CABLE LEVER |
3 | ||
| 55905-95707 |
BU6#,7#,8# BLOWER SW OR VARIABLE RESISTOR |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95406 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
BU6#,70,80,81,82 |
1 | ||
| 55908-95404 |
BU6#,70,80,81,82..GEN,GHD W/FOOT VENTILATOR |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95410 |
BU60,61,62,63,7#,8#..GEN,GHD W/*BV |
1 | ||
| 55910-95411 |
BU6#,7#,8#..GEN,GHD W/FOOT VENTILATOR |
1 | ||
| 55910-95409 |
BU6#,7#,8# W/HEATER |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
BU6#,70,80,81,82 |
1 | ||
| 90950-01127 |
BU60,61,62,63,70,80,81,82..GEN,GHD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
BU60,61,62,63,7#,8#..GEN,GHD,SA W/COOLER |
1 | ||
| Common parts | ||||
| 90159-50150 | ||||
| 90183-05103 | ||||
| 93540-14008 | ||||
| 93567-15016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

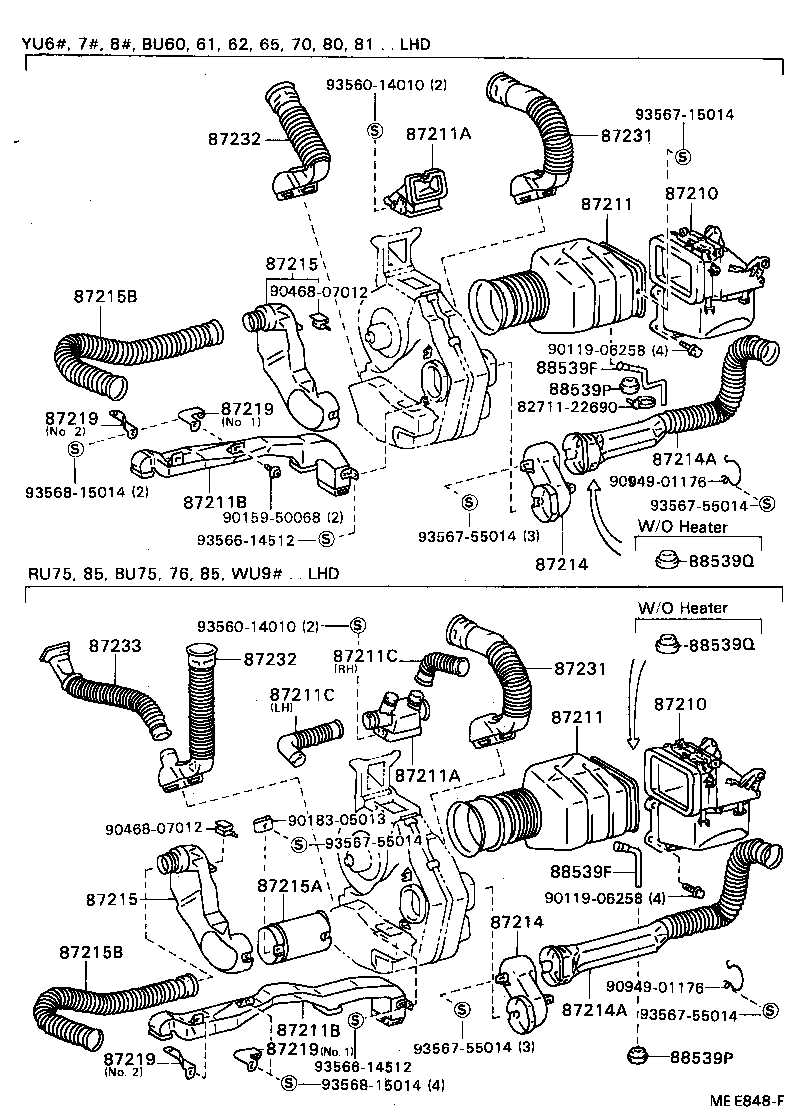

(8409- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95404 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95404 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95405 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95405 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95403 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95403 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-95409 |
BU60,61,62,70,80,81..LHD |
1 | ||
| 87211-95418 |
BU60,61,62,65,80,81..LHD..WT W/POWER TAKE-OFF |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-95409 |
BU60,61,62,70,80,81..LHD |
1 | ||
| 87211-95418 |
BU60,61,62,65,80,81..LHD..WT W/POWER TAKE-OFF |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55848-95401 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55848-95401 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55847-95400 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55847-95400 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55843-95406 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55843-95406 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 87215B - DUCT, AIR, SIDE NO.3 LH | ||||
| 55863-95405 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 87215B - DUCT, AIR, SIDE NO.3 LH | ||||
| 55863-95405 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
BU65..CBU;BU60,61,62,63,7#,8# NO.1,W/O POWER TAKE-OFF |
1 | ||
| 87214-95403 |
BU6#,7#,8# NO.2 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
BU65..CBU;BU60,61,62,63,7#,8# NO.1,W/O POWER TAKE-OFF |
1 | ||
| 87214-95403 |
BU6#,7#,8# NO.2 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
BU65..CBU;BU60,61,62,63,7#,8# NO.1,W/O POWER TAKE-OFF |
1 | ||
| 87214-95403 |
BU6#,7#,8# NO.2 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
BU65..CBU;BU60,61,62,63,7#,8# NO.1,W/O POWER TAKE-OFF |
1 | ||
| 87214-95403 |
BU6#,7#,8# NO.2 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95408 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95408 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95407 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95407 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95403 |
BU6#,70,80,81,82 |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95403 |
BU6#,70,80,81,82 |
1 | ||
| 88539P - GROMMET(FOR DRAIN HOSE) | ||||
| 88897-30580 |
BU6#,7#,8# |
1 | ||
| 88539P - GROMMET(FOR DRAIN HOSE) | ||||
| 88897-30580 |
BU6#,7#,8# |
1 | ||
| 88539Q - PLUG, HOLE (FOR DRAIN HOSE HOLE) | ||||
| 90950-01061 |
BU6#,7#,8#..EUR,GEN,GHD,SA |
1 | ||
| 88539Q - PLUG, HOLE (FOR DRAIN HOSE HOLE) | ||||
| 90950-01061 |
BU6#,7#,8#..EUR,GEN,GHD,SA |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 90119-06258 | ||||
| 90159-50068 | ||||
| 90183-05013 | ||||
| 90468-07012 | ||||
| 90949-01176 | ||||
| 93560-14010 | ||||
| 93566-14512 | ||||
| 93567-15014 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||

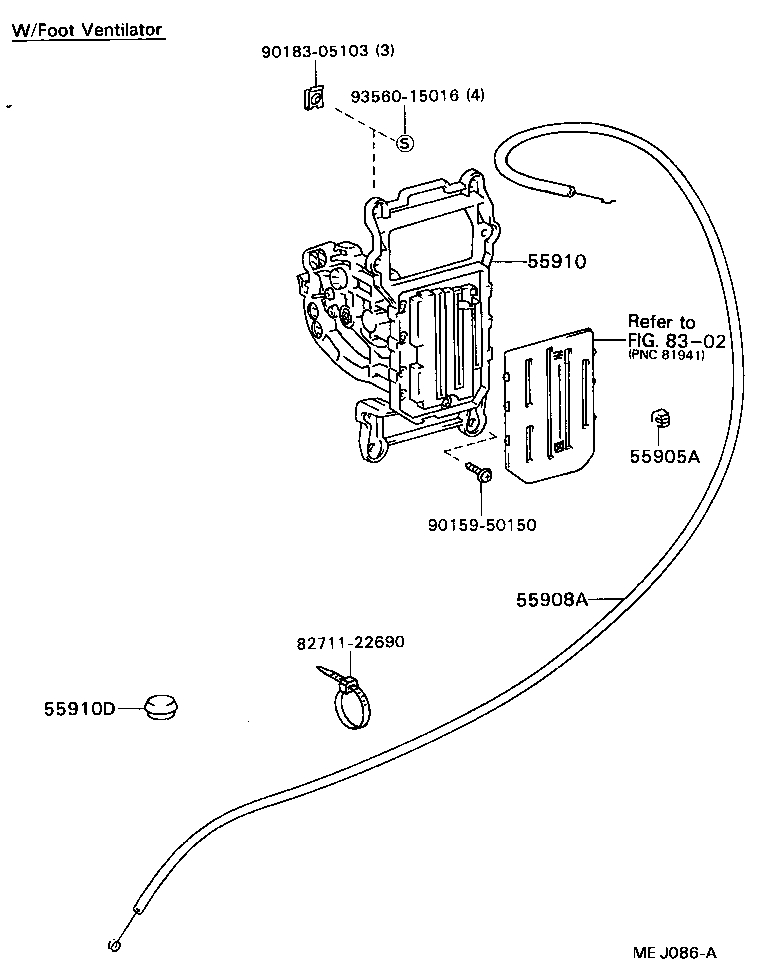

(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89110 |
BU6#,7#,8# CABLE LEVER |
3 | ||
| 55905-95J01 |
BU6#,7#,8# BLOWER SW OR VARIABLE RESISTOR |
2 | ||
| 55905-10110 |
BU6#,7#,8# CABLE LEVER |
3 | ||
| 55905-95707 |
BU6#,7#,8# BLOWER SW OR VARIABLE RESISTOR |
2 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
BU6#,70,80,81,82 |
1 | ||
| 55908-95404 |
BU6#,70,80,81,82..GEN,GHD W/FOOT VENTILATOR |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95410 |
BU60,61,62,63,7#,8#..GEN,GHD W/*BV |
1 | ||
| 55910-95411 |
BU6#,7#,8#..GEN,GHD W/FOOT VENTILATOR |
1 | ||
| 55910-95409 |
BU6#,7#,8# W/HEATER |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
BU6#,70,80,81,82 |
1 | ||
| 90950-01127 |
BU60,61,62,63,70,80,81,82..GEN,GHD |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 90159-50150 | ||||
| 90183-05103 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
