BU60L-MDB3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409-8508)BU75,76..GEN ; (8409- )BU60,61..TS..WT ; (8508- )BU75,76,86 ; (851

Click highlighted areas on diagram

diagram 42611B 43502 43510A 43510B 43510C 43510D 43510E 43512 43514 43525 9010112070 9017020005 9020112007 9538105040
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02024

BU60,80..T2;BU60,61,62,70..ST

RH

 6
90942-02025

BU60,80..T2;BU60,61,62,70..ST

LH

 6
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

BU6#,7#,8#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

BU6#,7#,8#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

BU6#,7#,8#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

BU6#,7#,8#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001

BU6#,7#,8#

 2
43514 - CAP, FRONT HUB GREASE
43514-36030

BU6#,7#,8#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010

BU6#,7#,8#

 2
Common parts
90101-12070
90170-20005
90201-12007
95381-05040

(8409- )ST ; (8409- )T2

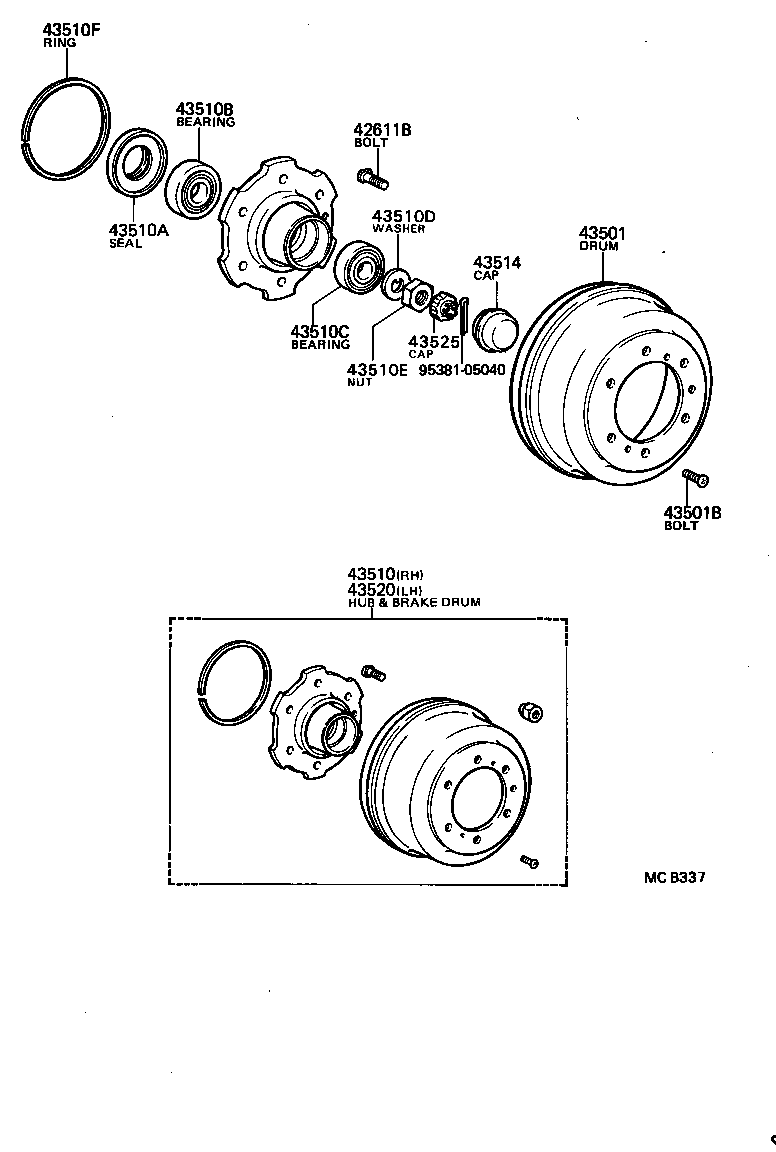

Click highlighted areas on diagram

diagram 42611B 43501 43501B 43510 43510A 43510B 43510C 43510D 43510E 43510F 43514 43520 43525 9538105040
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02024

BU60,80..T2;BU60,61,62,70..ST

RH

 6
90942-02025

BU60,80..T2;BU60,61,62,70..ST

LH

 6
43501 - DRUM SUB-ASSY, FRONT BRAKE
43512-36060

BU60,80..T2;BU60,61,62,70..ST

 2
43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING)
90113-10035

BU60,80..T2;BU60,61,62,70..ST

 2
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-36110

BU60,80..T2;BU60,61,62,70..ST

 1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

BU6#,7#,8#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

BU6#,7#,8#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

BU6#,7#,8#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

BU6#,7#,8#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001

BU6#,7#,8#

 2
43510F - RING, SHAFT SNAP (FOR FRONT AXLE HUB)
90520-99065

BU60,80..T2;BU60,61,62,70..ST

T=1.60

 2
43514 - CAP, FRONT HUB GREASE
43514-36030

BU6#,7#,8#

 2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520-36110

BU60,80..T2;BU60,61,62,70..ST

 1
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010

BU6#,7#,8#

 2
Common parts
95381-05040
