BU40R-MRDT3 (1982)
Toyota Dyna
(8204-8408)BU40,HU40,50,WU40,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

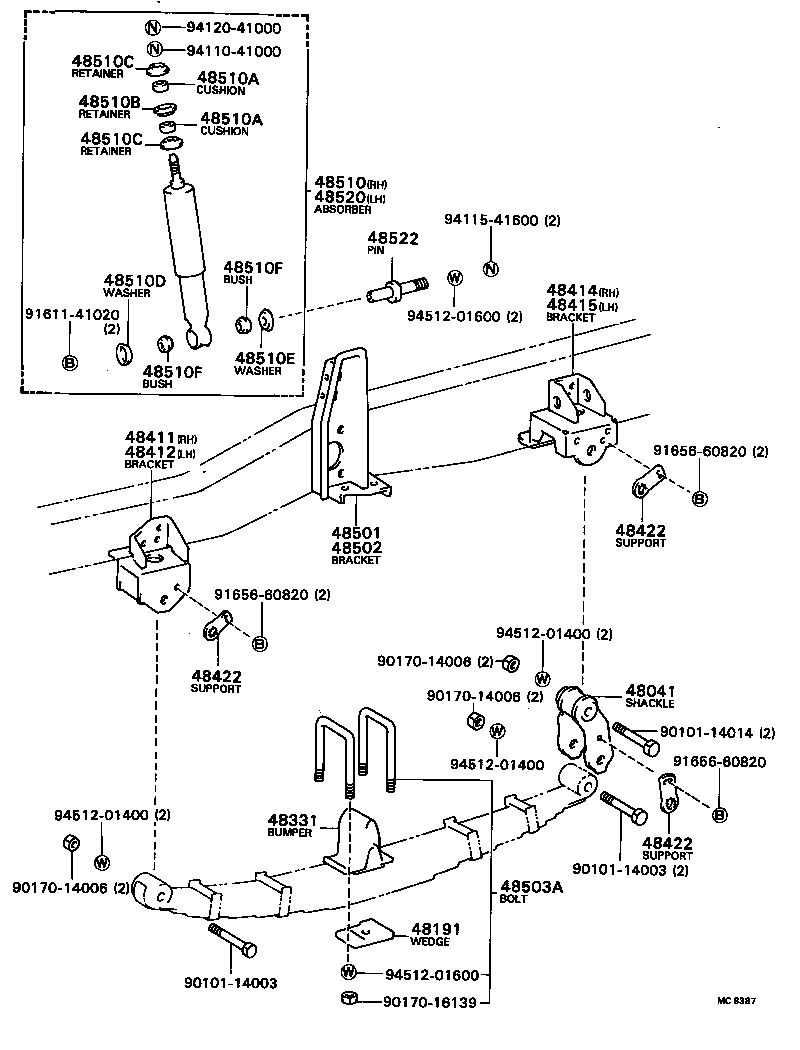

| 48041 - SHACKLE SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48041-36050 |
BU36,40,HU40,50,WU40,50 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-36060 |
BU40,HU40,50,WU40,50 |
2 | ||
| 48304-36030 |
BU2#,3#,HU30,JU20,RU2#,30 |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-36090 |
BU40,HU40,50,WU40,50 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48412-36090 |
BU40,HU40,50,WU40,50 |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48433-36040 |
BU36,40,HU40,50,WU40,50 |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48434-36040 |
BU36,40,HU40,50,WU40,50 |
1 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
BU40,HU40,50,WU40,50 |
6 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
BU40,HU40,50,WU40,50 |
6 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36040 |
BU40,HU40,50,WU40,50 |
6 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-36030 |
BU36,40,HU40,50,WU40,50 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48502-36040 |
BU36,40,HU40,50,WU40,50 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90118-16165 |
BU40,HU40,50,WU40,50 L=125 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU2#,3#,HU30,JU20,RU2#,30 |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-36030 |
BU2#,3#,HU30,JU20,RU2#,30 |
2 | ||
| Common parts | ||||
| 90101-14003 | ||||
| 90101-14014 | ||||
| 90170-14006 | ||||
| 90170-16139 | ||||
| 91611-41020 | ||||
| 91656-60820 | ||||
| 94110-41000 | ||||
| 94115-41600 | ||||
| 94120-41000 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
(8204-8408)BU40,HU40,50,WU40,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

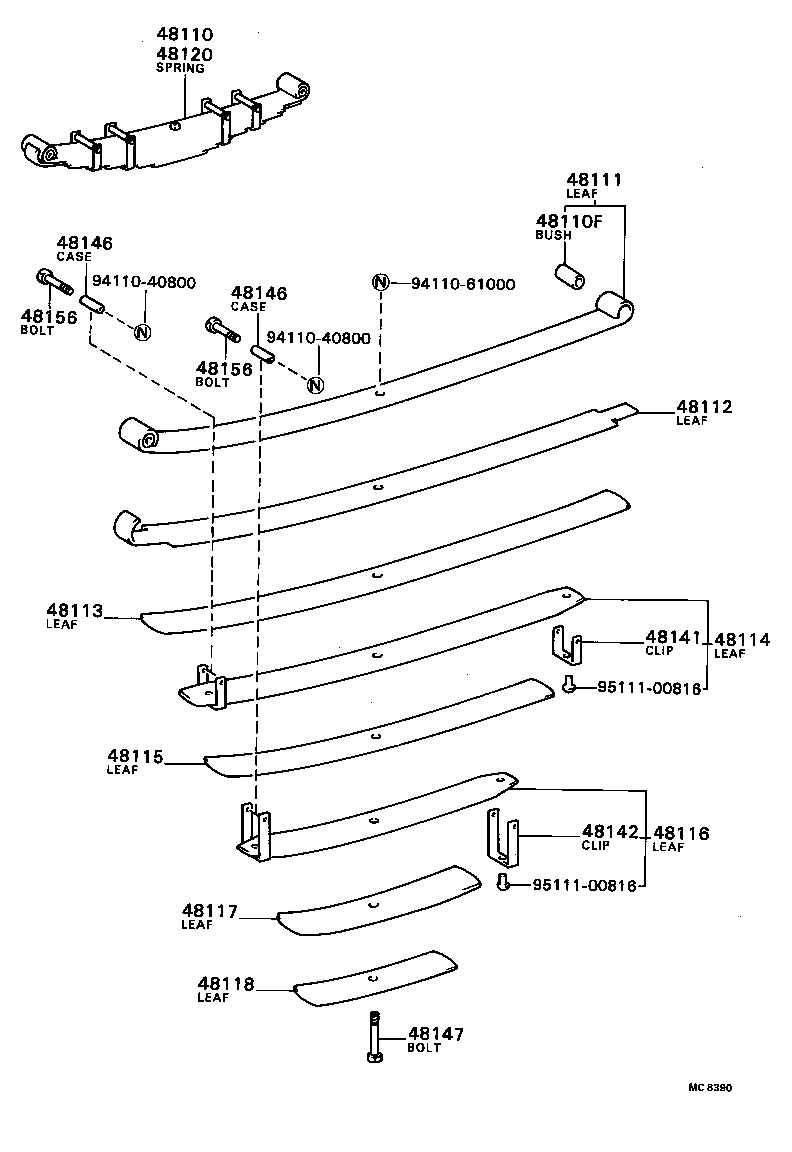

| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36490 |
BU40,HU40,50,WU40..RHD |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36010 |
BU40,HU40,50,WU40..RHD LH |
1 | ||
| 48101-36490 |
BU40,HU40,50,WU40..RHD RH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48122-36010 |
BU40,HU40,50,WU40..RHD LH |
1 | ||
| 48112-36490 |
BU40,HU40,50,WU40..RHD RH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-36490 |
BU40,HU40,50,WU40..RHD RH |
1 | ||
| 48123-36010 |
BU40,HU40,50,WU40..RHD LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-36490 |
BU40,HU40,50,WU40..RHD RH |
1 | ||
| 48104-36010 |
BU40,HU40,50,WU40..RHD LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48125-36010 |
BU40,HU40,50,WU40..RHD LH |
1 | ||
| 48115-36490 |
BU40,HU40,50,WU40..RHD RH |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-36490 |
BU40,HU40,50,WU40..RHD RH |
1 | ||
| 48105-36010 |
BU40,HU40,50,WU40..RHD LH |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48127-36010 |
BU40,HU40,50,WU40..RHD LH |
1 | ||
| 48117-36490 |
BU40,HU40,50,WU40..RHD RH |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-36490 |
BU40,HU40,50,WU40..RHD RH |
1 | ||
| 48128-36010 |
BU40,HU40,50,WU40..RHD LH |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48120-36010 |
BU40,HU40,50,WU40..RHD |
1 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-36490 |
BU40,HU40,50,WU40,50 |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48142-36490 |
BU40,HU40,50,WU40,50 |
4 | ||
| 48146 - CASE, FRONT SPRING CLIP BOLT | ||||
| 48146-60010 |
BU40,HU40,50,WU40,50 |
8 | ||
| 48146 - CASE, FRONT SPRING CLIP BOLT | ||||
| 48146-60010 |
BU40,HU40,50,WU40,50 |
8 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36490 |
BU40,HU40,50,WU40..RHD |
2 | ||
| 48156 - BOLT, FRONT SPRING CLIP | ||||
| 48256-36570 |
BU40,HU40,50,WU40,50 |
8 | ||
| 48156 - BOLT, FRONT SPRING CLIP | ||||
| 48256-36570 |
BU40,HU40,50,WU40,50 |
8 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-61000 | ||||
| 95111-00816 | ||||
ILLUST NO. 2 OF 2(0110-0801)XZU414,424..RHD..75T..GEN ; (0110-0801)BU410,420,WU410,420,XZU412..65T ;
5-LEAF 48110-3V620,3V630
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0110-0701)WU410..LHD..GEN..CBU ; (0110-0701)XZU412,422..5F..75T,85T ; (0110-0701)B
7-LEAF 48110-3V660
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(0110-0801)WU410..65T ; (0110-0801)XZU412,422..5F ; (0110-0801)XZU414..6F..ARL ; (0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-01174 | ||||
| 90031-78086 | ||||
| 90032-01144 | ||||
| 90032-01146 | ||||
| 90032-04032 | ||||
| 90032-04033 | ||||
| 90032-04034 | ||||
| 90032-15012 | ||||
| 90101-12074 | ||||
| 90178-16004 | ||||
| 90179-10036 | ||||
| 90201-24003 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94183-60801 | ||||
| 94184-61001 | ||||
