BU40R-MRDT3 (1982)
Toyota Dyna
Production
Apr 1982
-
Aug 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8204-8408)BU40,HU40,50,WU40,50

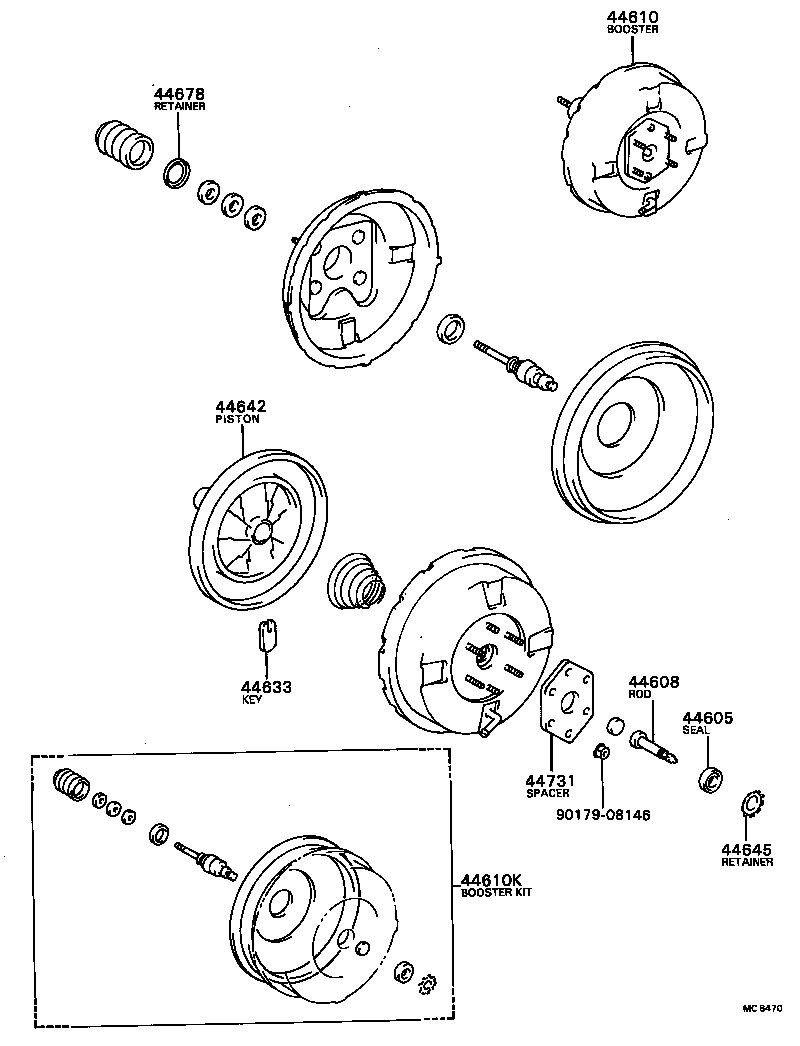

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-36220 |
BU40,HU40,50,WU40,50 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-36220 |
BU40,HU40,50,WU40,50 |
1 | ||
| 44606-36120 |
BU2#,3#,HU30,JU20,RU2#,30 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36220 |
BU40,HU40,50,WU40,50 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-36020 |
BU2#,3#,HU30,JU20 |
1 | ||
| 04443-36040 |
BU40,HU40,50,WU40,50 |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
BU40,HU40,50,WU40,50 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-36220 |
BU40,HU40,50,WU40,50 |
1 | ||
| 44642-36120 |
BU2#,3#,HU30,JU20,RU2#,30 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-36220 |
BU40,HU40,50,WU40,50 |
1 | ||
| 44628-60010 |
BU2#,3#,HU30,JU20,RU2#,30 |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
BU40,HU40,50,WU40,50 |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44647-36220 |
BU40,HU40,50,WU40,50 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
