BU40R-MRDT (1982)

Toyota Dyna

Production Apr 1982 - Aug 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204-8408)BU36,40,HU40,50,WU40,50

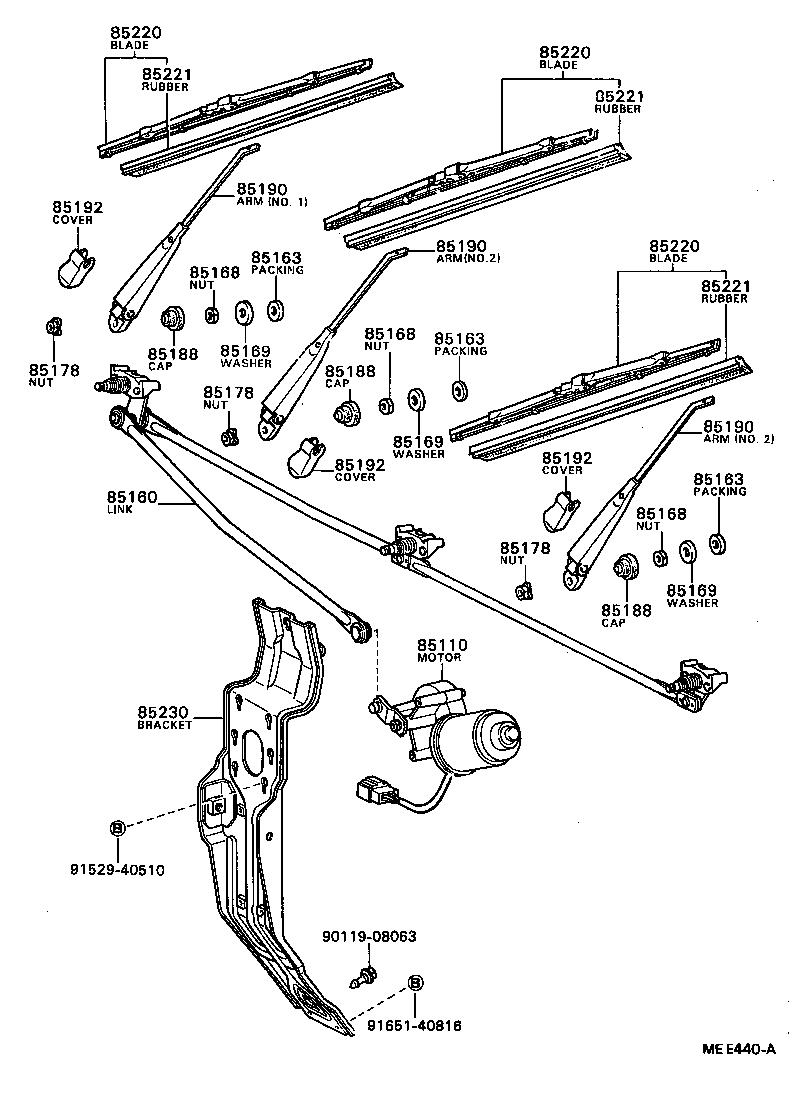

Click highlighted areas on diagram

diagram 85110 85160 85163 85163 85163 85168 85168 85168 85169 85169 85169 85178 85178 85178 85188 85188 85188 85190 85190 85190 85192 85192 85192 85220 85220 85220 85221 85221 85221 85230 9011908063 9152940510 9165140816
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-95428

BU36,40,HU40,50,WU40..RHD

12V

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95407

BU36,40,HU40,50,WU40..RHD

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95010

BU36,40,HU40,50,WU40,50

 3
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95010

BU36,40,HU40,50,WU40,50

 3
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95010

BU36,40,HU40,50,WU40,50

 3
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95010

BU36,40,HU40,50,WU40,50

 3
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95010

BU36,40,HU40,50,WU40,50

 3
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95010

BU36,40,HU40,50,WU40,50

 3
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95010

BU36,40,HU40,50,WU40,50

 3
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95010

BU36,40,HU40,50,WU40,50

 3
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95010

BU36,40,HU40,50,WU40,50

 3
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90099-05129

BU36,40,HU40,50,WU40

 3
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90099-05129

BU36,40,HU40,50,WU40

 3
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90099-05129

BU36,40,HU40,50,WU40

 3
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95010

BU36,40,HU40,50,WU40,50

 3
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95010

BU36,40,HU40,50,WU40,50

 3
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95010

BU36,40,HU40,50,WU40,50

 3
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95410

BU36,40,HU40,50,WU40..RHD

NO.1

 1
85190-95411

BU36,40,HU40,50,WU40..RHD

NO.2

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95410

BU36,40,HU40,50,WU40..RHD

NO.1

 1
85190-95411

BU36,40,HU40,50,WU40..RHD

NO.2

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95410

BU36,40,HU40,50,WU40..RHD

NO.1

 1
85190-95411

BU36,40,HU40,50,WU40..RHD

NO.2

 2
85192 - COVER, WINDSHIELD WIPER ARM
85195-95401

BU36,40,HU40,50,WU40,50

 3
85192 - COVER, WINDSHIELD WIPER ARM
85195-95401

BU36,40,HU40,50,WU40,50

 3
85192 - COVER, WINDSHIELD WIPER ARM
85195-95401

BU36,40,HU40,50,WU40,50

 3
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95A05

BU36,40,HU40,50,WU40..RHD

 3
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95A05

BU36,40,HU40,50,WU40..RHD

 3
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95A05

BU36,40,HU40,50,WU40..RHD

 3
85221 - BLADE, WINDSHIELD WIPER
85221-95A00

BU2#,3#,HU30,JU20,RU2#,30

 2
85221-95A01

BU36,40,HU40,50,WU40,50

 3
85221 - BLADE, WINDSHIELD WIPER
85221-95A00

BU2#,3#,HU30,JU20,RU2#,30

 2
85221-95A01

BU36,40,HU40,50,WU40,50

 3
85221 - BLADE, WINDSHIELD WIPER
85221-95A00

BU2#,3#,HU30,JU20,RU2#,30

 2
85221-95A01

BU36,40,HU40,50,WU40,50

 3
85230 - BRACKET ASSY, WINDSHIELD WIPER
85109-95409

BU36,40,HU40,50,WU40..RHD

 1
Common parts
90119-08063
91529-40510
91651-40816
