BU32L-MRDT (1981)

Toyota Dyna

Production Apr 1981 - Aug 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8104-8408)BU31,32..TB

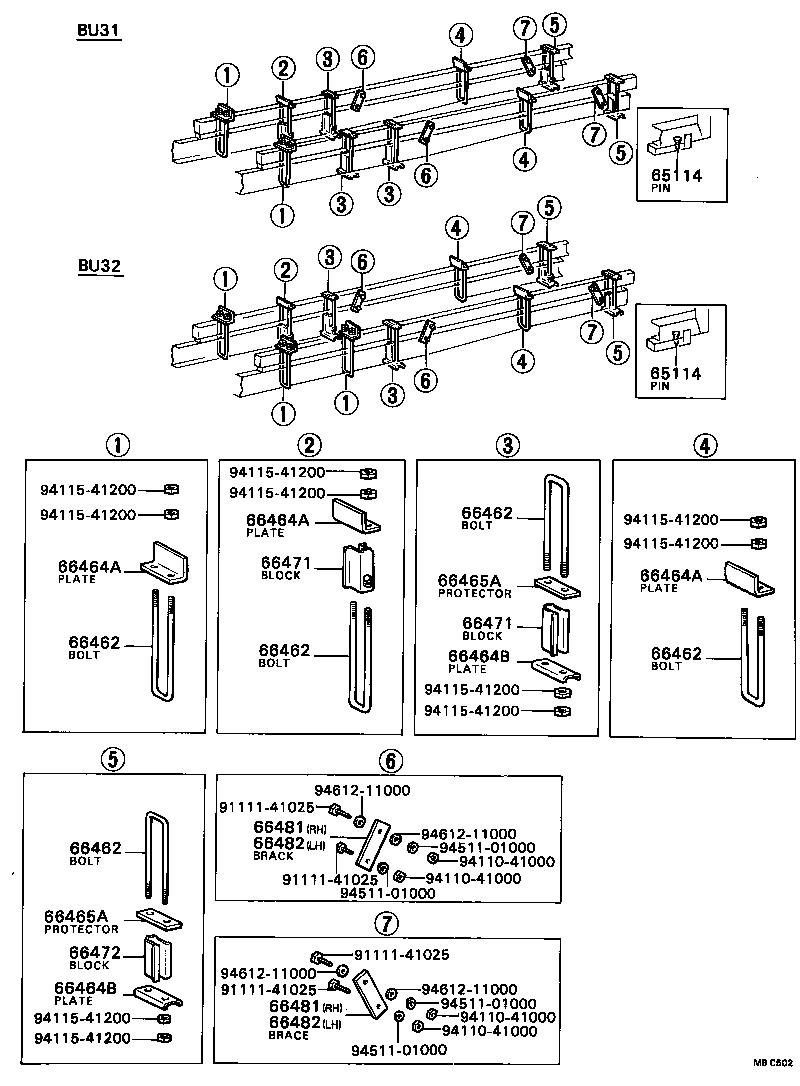

Click highlighted areas on diagram

diagram 65114 65114 66462 66462 66462 66462 66462 66464A 66464A 66464A 66464B 66464B 66465A 66465A 66471 66471 66472 66481 66481 66482 66482 9111141025 9111141025 9111141025 9111141025 9411041000 9411041000 9411041000 9411041000 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9451101000 9451101000 9451101000 9451101000 9461211000 9461211000 9461211000 9461211000
Part # Description Qty Price
66462 - BOLT, U(FOR MAIN SILL)
66462-92820

BU3#,40,RU30,WU40..T3

L=315

 4
66461-92820

BU3#,40,HU30,RU30..T3

L=363

 6
66462 - BOLT, U(FOR MAIN SILL)
66462-92820

BU3#,40,RU30,WU40..T3

L=315

 4
66461-92820

BU3#,40,HU30,RU30..T3

L=363

 6
66462 - BOLT, U(FOR MAIN SILL)
66462-92820

BU3#,40,RU30,WU40..T3

L=315

 4
66461-92820

BU3#,40,HU30,RU30..T3

L=363

 6
66462 - BOLT, U(FOR MAIN SILL)
66462-92820

BU3#,40,RU30,WU40..T3

L=315

 4
66461-92820

BU3#,40,HU30,RU30..T3

L=363

 6
66462 - BOLT, U(FOR MAIN SILL)
66462-92820

BU3#,40,RU30,WU40..T3

L=315

 4
66461-92820

BU3#,40,HU30,RU30..T3

L=363

 6
66464A - PLATE, U BOLT
66466-92580

BU3#,40,HU30,40,50,RU30..T3

 8
66464A - PLATE, U BOLT
66466-92580

BU3#,40,HU30,40,50,RU30..T3

 8
66464A - PLATE, U BOLT
66466-92580

BU3#,40,HU30,40,50,RU30..T3

 8
66464B - PLATE, U BOLT, NO.1
66466-92700

BU3#,40,HU30,RU30..T3

 6
66464B - PLATE, U BOLT, NO.1
66466-92700

BU3#,40,HU30,RU30..T3

 6
66465A - PROTECTOR, U BOLT
66465-92700

BU3#,40,HU30,RU30..T3

 6
66465A - PROTECTOR, U BOLT
66465-92700

BU3#,40,HU30,RU30..T3

 6
66471 - BLOCK, U BOLT, NO.1
66471-92800

BU3#,40,HU30,40,50,RU30..T3

 4
66471 - BLOCK, U BOLT, NO.1
66471-92800

BU3#,40,HU30,40,50,RU30..T3

 4
66472 - BLOCK, U BOLT, NO.2
66472-92802

BU30,31,32,HU30,RU30..TB

 4
Common parts
91111-41025
94110-41000
94115-41200
94511-01000
94612-11000
