BU30R-QRDHTY3 (1981)

Toyota Dyna

Production Apr 1981 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)BU30,36,40,HU30,40,50,RU30,WU40,50..TB

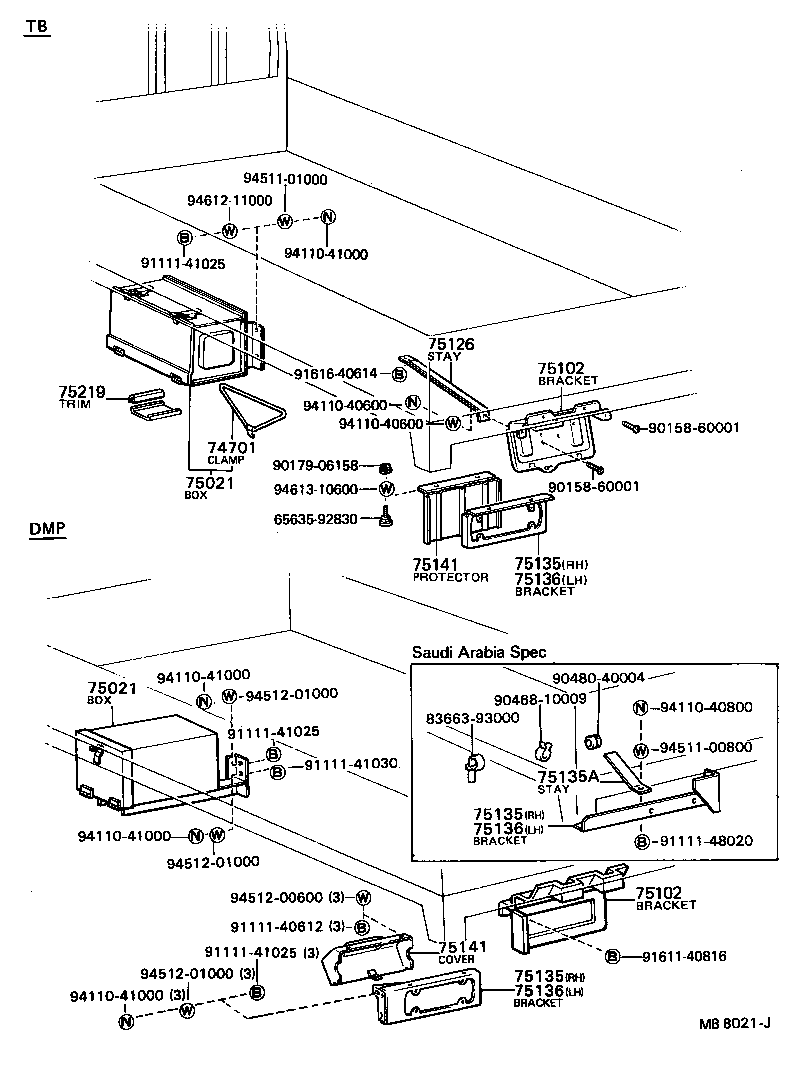

Click highlighted areas on diagram

diagram 6563592830 74701 75021 75021 75102 75102 75126 75135 75135 75135 75135A 75136 75136 75136 75141 75141 75219 8366393000 9015860001 9015860001 9017906158 9046810009 9048040004 9111140612 9111141025 9111141025 9111141025 9111141030 9111148020 9161140816 9161640614 9411040600 9411040600 9411040800 9411041000 9411041000 9411041000 9411041000 9451100800 9451101000 9451200600 9451201000 9451201000 9451201000 9461211000 9461310600
Part # Description Qty Price
75021 - BOX SUB-ASSY, TOOL
75210-92801

BU30,HU30,RU30..TB

 1
75021 - BOX SUB-ASSY, TOOL
75210-92801

BU30,HU30,RU30..TB

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU25,RU25;BU20,23,30,HU30,RU20,30..IV3

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU25,RU25;BU20,23,30,HU30,RU20,30..IV3

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66493-92800

BU30,HU30,RU30..TB

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
65208-92704

BU30,HU30,RU30..TB

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
65208-92704

BU30,HU30,RU30..TB

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
65208-92704

BU30,HU30,RU30..TB

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
65208-92704

BU30,HU30,RU30..TB

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
65208-92704

BU30,HU30,RU30..TB

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
65208-92704

BU30,HU30,RU30..TB

 1
75141 - PROTECTOR, REAR COMBINATION LAMP
66230-92800

BU30,31,32,HU30,RU30..T3

 2
75141 - PROTECTOR, REAR COMBINATION LAMP
66230-92800

BU30,31,32,HU30,RU30..T3

 2
Common parts
65635-92830
83663-93000
90158-60001
90179-06158
90468-10009
90480-40004
91111-40612
91111-41025
91111-41030
91111-48020
91611-40816
91616-40614
94110-40600
94110-40800
94110-41000
94511-00800
94511-01000
94512-00600
94512-01000
94612-11000
94613-10600
