BU30R-QRDHT3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)BU3#,HU30,RU30..TB

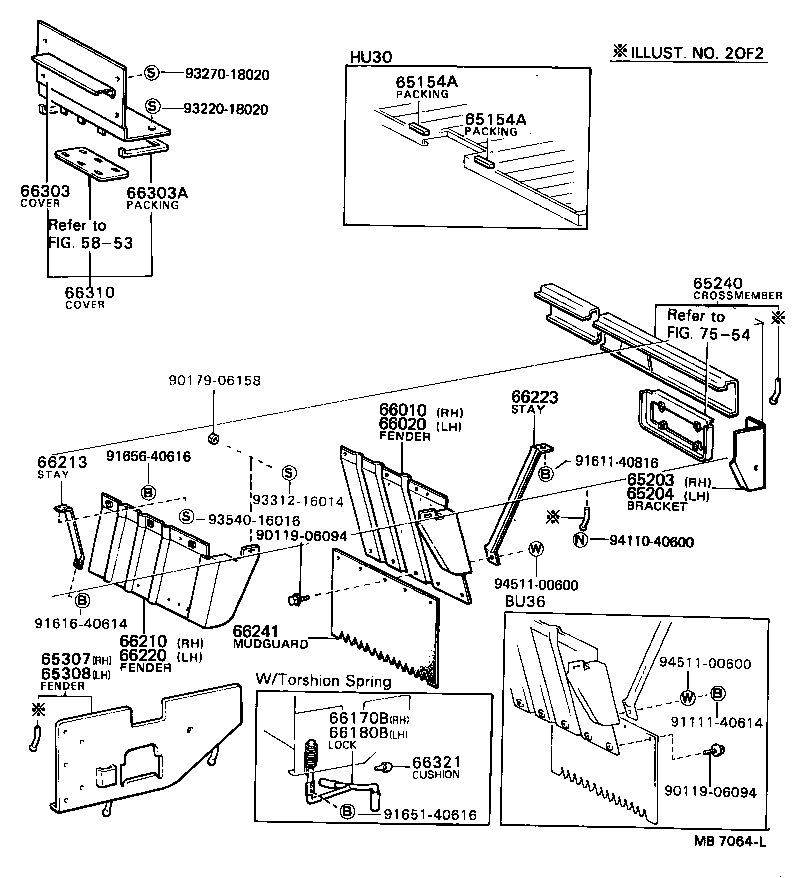

Click highlighted areas on diagram

diagram 5853 65154A 65154A 65203 65204 65240 65307 65308 66010 66020 66170B 66180B 66210 66213 66220 66223 66241 66303 66303A 66310 66321 7554 9011906094 9011906094 9017906158 9111140614 9161140816 9161640614 9165140616 9165640616 9322018020 9327018020 9331216014 9354016016 9411040600 9451100600 9451100600
Part # Description Qty Price
65203 - BRACKET SUB-ASSY, GATE BUMPER, RH
65203-92800

BU30,HU30,RU30..TB

 1
65203-92801

BU3#,40,HU30,40,50,RU30,WU40..T3

 1
65204 - BRACKET SUB-ASSY, GATE BUMPER, LH
65204-92801

BU3#,40,HU30,40,50,RU30,WU40..T3

 1
65204-92800

BU30,HU30,RU30..TB

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-92801

BU3#,HU30,RU30..TB

 1
65240-92853

BU30,31,32,RU30..TB

 1
65307 - BRACKET SUB-ASSY, GUAD FRAME, RH
65307-92800

BU30,32,36,40,HU40,50,RU30,WU40..T3,TW1

 1
65308 - BRACKET SUB-ASSY, GUAD FRAME, LH
65308-92800

BU30,32,36,40,HU40,50,RU30,WU40..T3,TW1

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66203-92821

BU3#,HU30,RU30..T3

 1
66203-92820

BU30,HU30,RU30..TB

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66204-92820

BU30,HU30,RU30..TB

 1
66204-92821

BU3#,HU30,RU30..T3

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-92820

BU3#,HU30,RU30..T3

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-92820

BU3#,HU30,RU30..T3

 1
66223 - STAY, REAR FENDER REAR PLATE
66217-92822

BU30,HU30,RU30..TB

 2
66217-92704

BU3#,HU30,RU30..T3

 2
66217-92803

BU30,HU30,RU30..TB

 2
66241 - MUDGUARD, REAR
66241-92720

BU30,32,36,RU30..TB

 2
66241-92720

BU30,HU30,RU30..TB

 2
66241-92851

BU30,32,36,RU30..TB

 2
Common parts
90119-06094
90179-06158
91111-40614
91611-40816
91616-40614
91651-40616
91656-40616
93220-18020
93270-18020
93312-16014
93540-16016
94110-40600
94511-00600
Linked diagrams
5853
7554

(8212-8408)TB

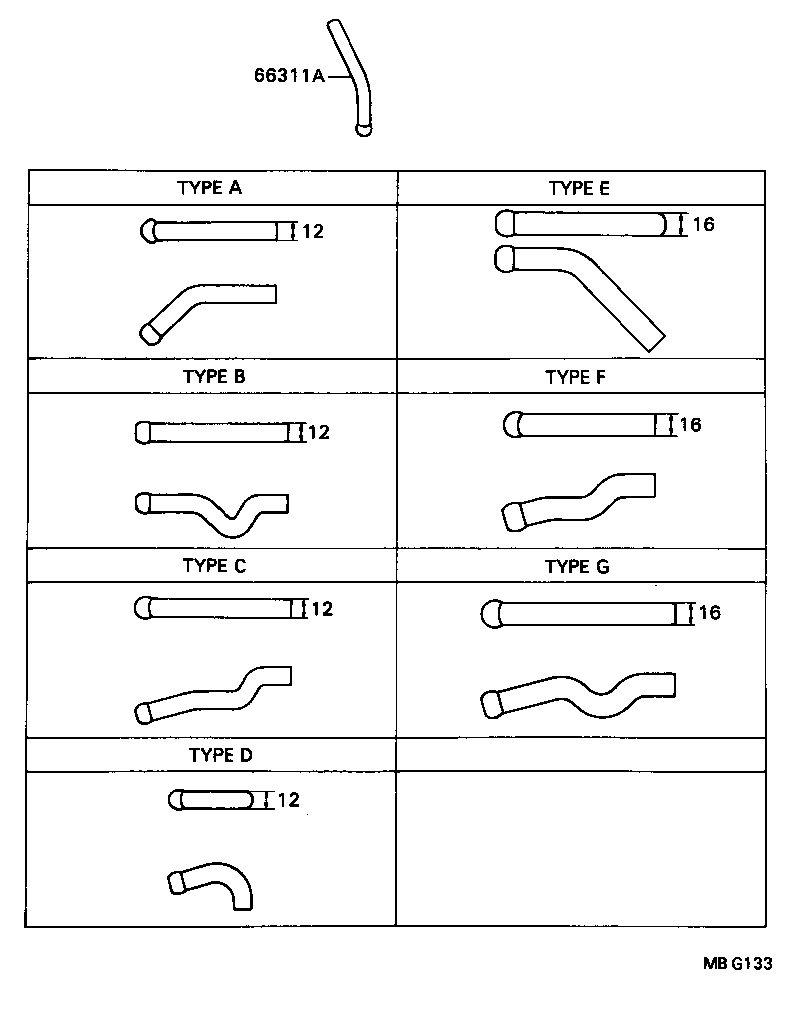

Click highlighted areas on diagram

diagram 66311A
Part # Description Qty Price
66311A - HOOK, ROPE, NO.1
66312-92801

BU30,32,36,40,HU40,50,WU40

TYPE E

 1
65283-92701

BU30,32,36,40,HU40,50,WU40

TYPE D

 1
66314-92800

BU30,32,36,40,HU40,50,WU40

TYPE F

 1
