BU30R-QRDHT3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

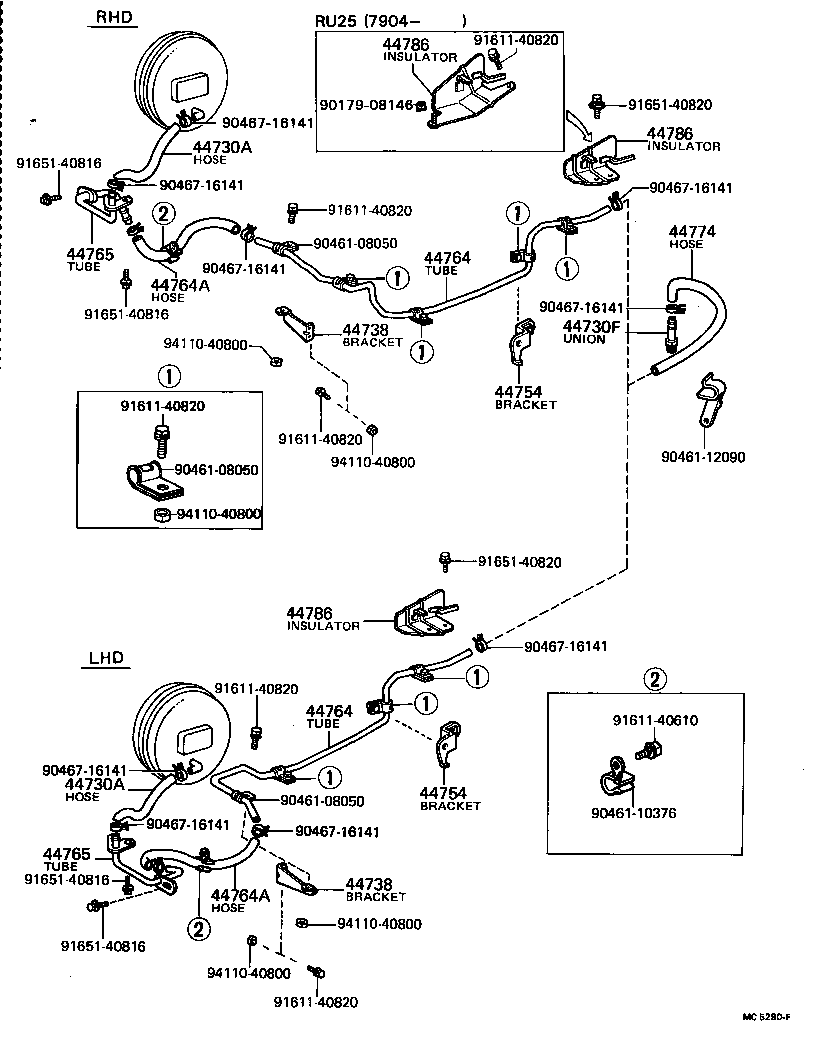

(7708-8408)RU2#,30

Click highlighted areas on diagram

diagram 44730A 44730A 44730F 44738 44738 44754 44754 44764 44764 44764A 44764A 44765 44765 44774 44786 44786 44786 9017908146 9046108050 9046108050 9046108050 9046110376 9046112090 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161140610 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9165140816 9165140816 9165140816 9165140816 9165140820 9165140820 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
44730A - HOSE, VACUUM, NO.1
90445-17033

BU20,30,HU30,JU20,RU20,30

L=220

 1
90445-17895

BU2#,3#,40,HU30,40,50,JU20,RU2#,30

L=250

 1
95441-09250

BU2#,3#,40,HU40,50,RU2#,30

 1
44730A - HOSE, VACUUM, NO.1
90445-17033

BU20,30,HU30,JU20,RU20,30

L=220

 1
90445-17895

BU2#,3#,40,HU30,40,50,JU20,RU2#,30

L=250

 1
95441-09250

BU2#,3#,40,HU40,50,RU2#,30

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51004

RU2#,30

 1
44738 - BRACKET, HOSE CLAMP BRAKCET
44738-36020

BU20,30,32,HU30,RU2#,30..RHD

 1
44738 - BRACKET, HOSE CLAMP BRAKCET
44738-36020

BU20,30,32,HU30,RU2#,30..RHD

 1
44754 - BRACKET, AIR TUBE
44754-36010

HU30,JU20,RU2#,30

 1
44754 - BRACKET, AIR TUBE
44754-36010

HU30,JU20,RU2#,30

 1
44764 - TUBE, BOOSTER VACUUM
44764-36170

RU2#,30..RHD

 1
44764-36200

BU20,30..RHD..WT

W/EXHAUST BRAKE

 1
44764-36140

BU20,30..RHD

W/O EXHAUST BRAKE

 1
44764 - TUBE, BOOSTER VACUUM
44764-36170

RU2#,30..RHD

 1
44764-36200

BU20,30..RHD..WT

W/EXHAUST BRAKE

 1
44764-36140

BU20,30..RHD

W/O EXHAUST BRAKE

 1
44764A - HOSE, BOOSTER VACUUM
90445-17814

BU2#,3#,40,HU30,40,50,JU20

 1
90445-17855

RU2#,30

 1
44764A - HOSE, BOOSTER VACUUM
90445-17814

BU2#,3#,40,HU30,40,50,JU20

 1
90445-17855

RU2#,30

 1
44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2
44765-36070

BU20,30,HU30,RU2#,30..RHD

 1
44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2
44765-36070

BU20,30,HU30,RU2#,30..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
90445-17772

BU2#,3#,40

 1
44774-36011

RU2#,30

 1
44774-36010

RU2#,30

 1
44786 - INSULATOR, HOSE HEAT
44786-36010

RU20,30

 1
44786 - INSULATOR, HOSE HEAT
44786-36010

RU20,30

 1
44786 - INSULATOR, HOSE HEAT
44786-36010

RU20,30

 1
Common parts
90179-08146
90461-08050
90461-10376
90461-12090
90467-16141
91611-40610
91611-40820
91651-40816
91651-40820
94110-40800

(7708- )BU2#,3#,40,HU30,40,50,JU20,WU40,50

Click highlighted areas on diagram

diagram 44704 44704 44730 44730 44730A 44730A 44738 44738 44743 44743 44754 44754 44764 44764 44764A 44764A 44764F 44765 44765 44765B 44773 44773 44774 44774 9011908126 9011908126 9011908126 9011908126 9011908126 9011908126 9046108050 9046110376 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161140610 9161140820 9161140820 9161140820 9161140820 9165140816 9165140816 9165140816 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-36070

BU20,30,32,36,40,HU30,40,50,WU40..RHD

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-36070

BU20,30,32,36,40,HU30,40,50,WU40..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

RU2#,30

 1
44730-60040

BU2#,3#,40,HU30,40,50,JU20,WU40,50

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

RU2#,30

 1
44730-60040

BU2#,3#,40,HU30,40,50,JU20,WU40,50

 1
44730A - HOSE, VACUUM, NO.1
90445-17033

BU20,30,HU30,JU20,RU20,30

L=220

 1
90445-17895

BU2#,3#,40,HU30,40,50,JU20,RU2#,30

L=250

 1
95441-09250

BU2#,3#,40,HU40,50,RU2#,30

 1
44730A - HOSE, VACUUM, NO.1
90445-17033

BU20,30,HU30,JU20,RU20,30

L=220

 1
90445-17895

BU2#,3#,40,HU30,40,50,JU20,RU2#,30

L=250

 1
95441-09250

BU2#,3#,40,HU40,50,RU2#,30

 1
44738 - BRACKET, HOSE CLAMP BRAKCET
44738-36020

BU20,30,32,HU30,RU2#,30..RHD

 1
44738 - BRACKET, HOSE CLAMP BRAKCET
44738-36020

BU20,30,32,HU30,RU2#,30..RHD

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09001

BU20,30,HU30,JU20

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09001

BU20,30,HU30,JU20

 1
44754 - BRACKET, AIR TUBE
44754-36010

HU30,JU20,RU2#,30

 1
44754 - BRACKET, AIR TUBE
44754-36010

HU30,JU20,RU2#,30

 1
44764 - TUBE, BOOSTER VACUUM
44764-36170

RU2#,30..RHD

 1
44764-36200

BU20,30..RHD..WT

W/EXHAUST BRAKE

 1
44764-36140

BU20,30..RHD

W/O EXHAUST BRAKE

 1
44764 - TUBE, BOOSTER VACUUM
44764-36170

RU2#,30..RHD

 1
44764-36200

BU20,30..RHD..WT

W/EXHAUST BRAKE

 1
44764-36140

BU20,30..RHD

W/O EXHAUST BRAKE

 1
44764A - HOSE, BOOSTER VACUUM
90445-17814

BU2#,3#,40,HU30,40,50,JU20

 1
90445-17855

RU2#,30

 1
44764A - HOSE, BOOSTER VACUUM
90445-17814

BU2#,3#,40,HU30,40,50,JU20

 1
90445-17855

RU2#,30

 1
44764F - WAY(FOR BOOSTER VACUUM TUBE)
90413-14004

BU20,30..RHD..WT

W/EXHAUST BRAKE

 1
44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2
44765-36070

BU20,30,HU30,RU2#,30..RHD

 1
44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2
44765-36070

BU20,30,HU30,RU2#,30..RHD

 1
44765B - HOSE, CONNECTOR TO BRAKE BOOSTER
90445-17002

BU20,30..RHD..TR..(GEN,GHI)

W/EXHAUST BRAKE

 1
90445-17002

BU20,30..RHD..WT

W/EXHAUST BRAKE

 1
44773 - HOSE, VACUUM, NO.2
90445-17895

BU2#,3#,40,HU30,40,50,JU20

 1
44773 - HOSE, VACUUM, NO.2
90445-17895

BU2#,3#,40,HU30,40,50,JU20

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
90445-17772

BU2#,3#,40

 1
44774-36011

RU2#,30

 1
44774-36010

RU2#,30

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
90445-17772

BU2#,3#,40

 1
44774-36011

RU2#,30

 1
44774-36010

RU2#,30

 1
Common parts
90119-08126
90461-08050
90461-10376
90467-16141
91611-40610
91611-40820
91651-40816
94110-40800

(7708- )BU2#,3#,HU30,JU20,RU2#,30

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44626 44629 44642 44643 44645 44657A 44662 44662A 44662B 44662C 44662E 44662F 44662G 44669 44696 44697 44697A 44730 44758 4702 9017908146 9331914008 9411070600 9412041000
Part # Description Qty Price
44601 - BAND SUB-ASSY, BOOSTER BODY
44605-36120

BU2#,3#,HU30,JU20,RU2#,30

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-36120

BU2#,3#,HU30,JU20,RU2#,30

 1
44610 - BOOSTER ASSY, BRAKE
44610-36170

RU2#,30

 1
44610-36160

BU2#,30,31,32,HU30,JU20

 1
44610-36190

RU2#,30

 1
44610K - BOOSTER KIT, BRAKE
04443-36020

BU2#,3#,HU30,JU20

 1
04443-36030

RU2#,30

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

BU2#,3#,HU30,JU20,RU2#,30

 1
44629 - RING, CIRCULAR INTERNAL
44629-30090

BU2#,3#,HU30,JU20,RU2#,30

 1
44642 - PISTON, BRAKE BOOSTER
44642-36120

BU2#,3#,HU30,JU20,RU2#,30

 1
44643 - RETAINER, DIAPHRAGM
44643-60010

BU2#,3#,HU30,JU20,RU2#,30

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44628-60010

BU2#,3#,HU30,JU20,RU2#,30

 1
44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
96150-01600

BU2#,3#,HU30,JU20,RU2#,30

 1
44662 - RETAINER, REACTION, NO.1
44662-36120

BU2#,3#,HU30,JU20,RU2#,30

 1
44662A - RETAINER, REACTION, NO.2
44663-60010

BU2#,3#,HU30,JU20,RU2#,30

 1
44662B - LEVER, REACTION
44661-60010

BU2#,3#,HU30,JU20,RU2#,30

 3
44662C - PLATE, REACTION, NO.1
44653-36160

BU2#,30,31,32,HU30,JU20,RU2#,30

 1
44662E - ROLLER(FOR REACTION LEVER)
44667-36120

BU2#,3#,HU30,JU20,RU2#,30

 3
44662F - WASHER(FOR REACTION LEVER)
90201-19272

BU2#,3#,HU30,JU20,RU2#,30

 1
44662G - RING, SNAP(FOR REACTION RETAINER)
96150-01800

BU2#,3#,HU30,JU20,RU2#,30

 1
44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER
44669-60010

BU2#,3#,HU30,JU20,RU2#,30

 1
44696 - GROMMET, CHECK VALVE
90480-24439

RU2#,30

 1
44697 - SCREW, BOOSTER BAND SET
44681-30170

BU2#,3#,HU30,JU20,RU2#,30

 1
44697A - NUT(FOR BOOSTER BAND SET)
44686-30030

BU2#,3#,HU30,JU20,RU2#,30

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

RU2#,30

 1
44730-60040

BU2#,3#,40,HU30,40,50,JU20,WU40,50

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-36010

RU2#,30

 1
Common parts
90179-08146
93319-14008
94110-70600
94120-41000
Linked diagrams
4702
