BU30R-QRDHT1 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1981
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU20..BUS ; (7708- )BU20,30..T1,T3,VSG,VSP ; (7708- )BU23,25,31,32

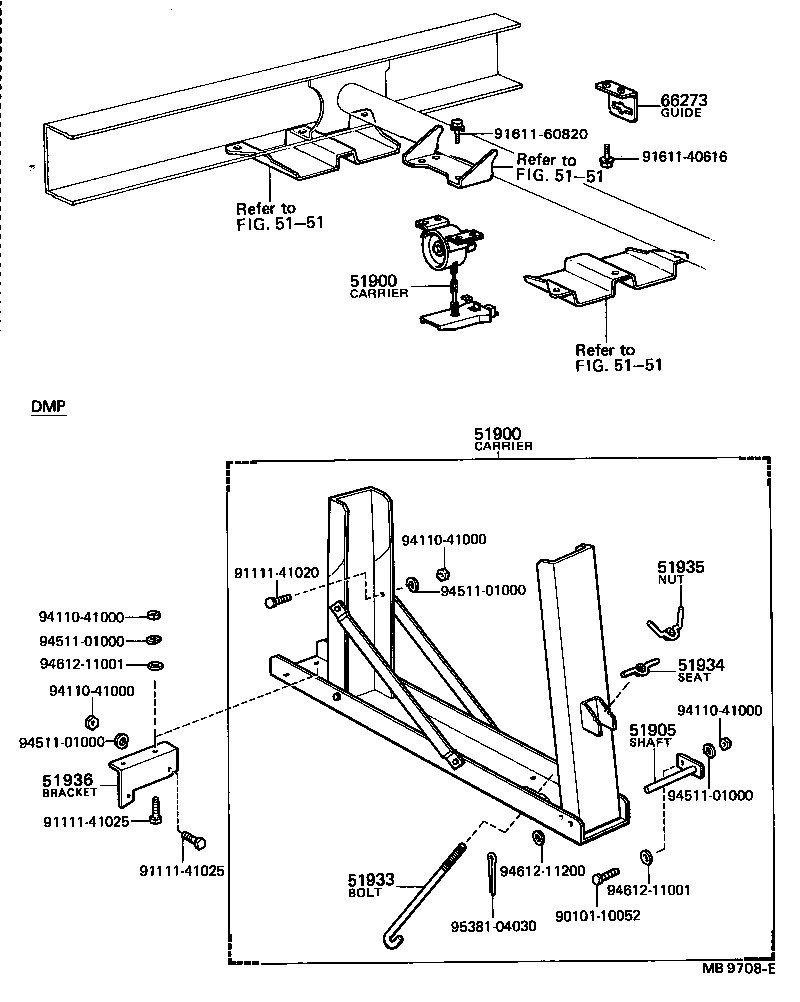

Click highlighted areas on diagram

diagram 5151 5151 5151 51900 51900 51905 51933 51934 51935 51936 66273 9010110052 9111141020 9111141025 9111141025 9161140616 9161160820 9411041000 9411041000 9411041000 9411041000 9451101000 9451101000 9451101000 9451101000 9461211001 9461211001 9461211200 9538104030
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36030

BU20,30,HU30,JU20,RU20,30

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-36030

BU20,30,HU30,JU20,RU20,30

 1
Common parts
90101-10052
91111-41020
91111-41025
91611-40616
91611-60820
94110-41000
94511-01000
94612-11001
94612-11200
95381-04030
Linked diagrams
5151
