BU30L-QRDHTY3 (1981)

Toyota Dyna

Production Apr 1981 - Feb 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)

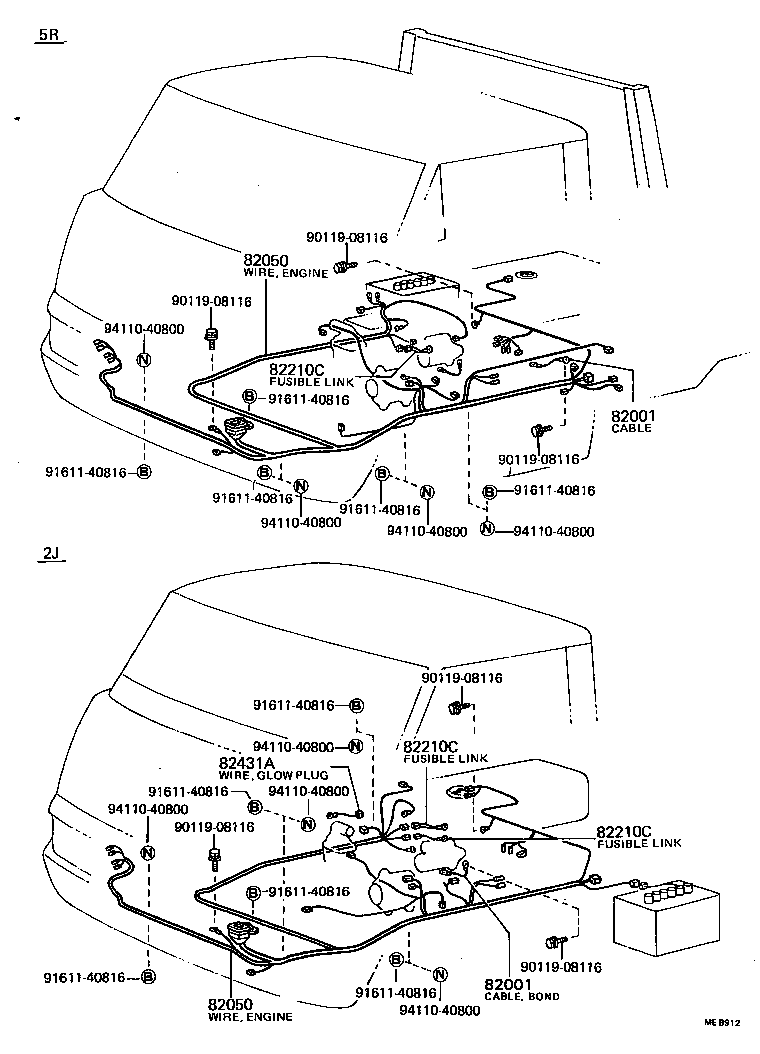

Click highlighted areas on diagram

diagram 82001 82001 82050 82050 82210C 82210C 82210C 82431A 9011908116 9011908116 9011908116 9011908116 9011908116 9011908116 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07125

BU2#,3#

 1
90980-07040

JU20,RU2#,30

 1
82001 - CABLE, BOND, NO.1
90980-07125

BU2#,3#

 1
90980-07040

JU20,RU2#,30

 1
82050 - WIRE ASSY, ENGINE
82410-95B18

BU20,30..LHD

 1
82410-95B47

RU20,30..LHD

 1
82410-95B22

BU20,30..LHD

W/EDIC

 1
82121-95439

BU2#,30,32..LHD

 1
82121-95440

BU2#,3#..LHD

W/EDIC

 1
82050 - WIRE ASSY, ENGINE
82410-95B18

BU20,30..LHD

 1
82410-95B47

RU20,30..LHD

 1
82410-95B22

BU20,30..LHD

W/EDIC

 1
82121-95439

BU2#,30,32..LHD

 1
82121-95440

BU2#,3#..LHD

W/EDIC

 1
82210C - FUSIBLE LINK
90982-08038

BU2#,30,JU20

L=110,2BLUE

 1
90982-08058

RU2#,30

L=110,0.85R,0.5G,12V,L=110,0.85RED & 0.5GREEN

 1
90982-08064

BU2#,30,HU30,JU20

L=130,1.25BLACK & 0.5GREEN

 1
82210C - FUSIBLE LINK
90982-08038

BU2#,30,JU20

L=110,2BLUE

 1
90982-08058

RU2#,30

L=110,0.85R,0.5G,12V,L=110,0.85RED & 0.5GREEN

 1
90982-08064

BU2#,30,HU30,JU20

L=130,1.25BLACK & 0.5GREEN

 1
82210C - FUSIBLE LINK
90982-08038

BU2#,30,JU20

L=110,2BLUE

 1
90982-08058

RU2#,30

L=110,0.85R,0.5G,12V,L=110,0.85RED & 0.5GREEN

 1
90982-08064

BU2#,30,HU30,JU20

L=130,1.25BLACK & 0.5GREEN

 1
Common parts
90119-08116
91611-40816
94110-40800
