BU30L-QRDHTY3 (1981)

Toyota Dyna

Production Apr 1981 - Feb 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)BU3#,40,HU30,40,50,RU30,WU40..TB

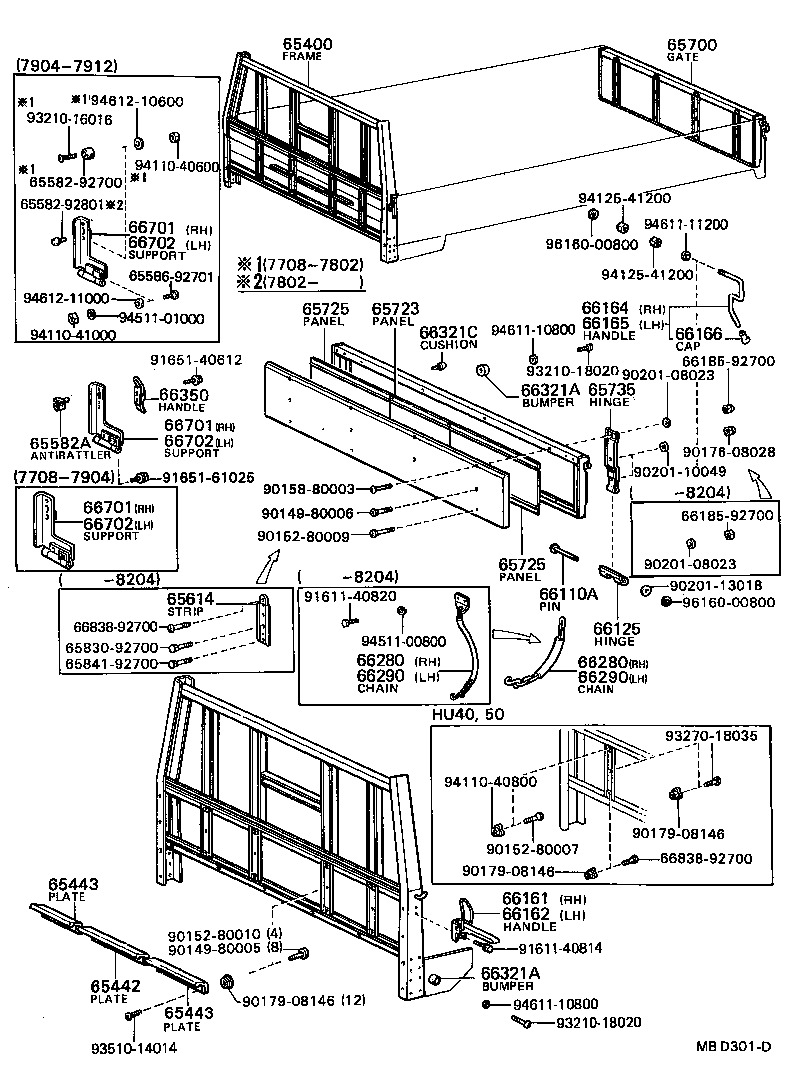

Click highlighted areas on diagram

diagram 65400 65442 65443 65443 6558292700 6558292801 65582A 6558692701 65614 65700 65723 65725 65725 65735 6583092700 6584192700 66110A 66125 66161 66162 66164 66165 66166 6618592700 6618592700 66280 66280 66290 66290 66321A 66321A 66321C 66350 66701 66701 66701 66702 66702 66702 6683892700 6683892700 9014980005 9014980006 9015280007 9015280009 9015280010 9015880003 9017608028 9017908146 9017908146 9017908146 9020108023 9020108023 9020110049 9020113018 9161140814 9161140820 9165140612 9165161025 9321016016 9321018020 9321018020 9327018035 9351014014 9411040600 9411040800 9411041000 9412541200 9412541200 9451100800 9451101000 9461110800 9461110800 9461111200 9461210600 9461211000 9616000800 9616000800
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65400-92856

BU30,RU30..TB

 1
65614 - STRIP, TAIL GATE HINGE, INSIDE
65716-92700

BU3#,HU30,RU30..TB

 4
65700 - GATE ASSY, REAR BODY TAIL
65700-92801

BU30,HU30,RU30..TB

 1
65723 - PANEL, TAIL GATE
65723-92830

BU30,HU30,RU30..TB

 1
65725 - PANEL, TAIL GATE SIDE
65617-92832

BU30,HU30,RU30..TB

 4
65725 - PANEL, TAIL GATE SIDE
65617-92832

BU30,HU30,RU30..TB

 4
65735 - HINGE, TAIL GATE MALE
66130-92700

BU30,HU30,RU30..TB

 4
66110A - PIN, TAIL GATE HINGE
66115-92700

BU20,3#,40,HU30,40,50,RU30,WU40..TB

 4
66125 - HINGE, TAIL GATE, FEMALE
66113-92700

BU20,3#,40,HU30,40,50,RU30,WU40..TB

 4
66161 - HANDLE, SIDE GATE LATCH, RH
65480-92700

BU30,HU30,RU30..TB

 1
66162 - HANDLE, SIDE GATE LATCH, LH
65490-92701

BU30,HU30,RU30..TB

 1
66164 - HANDLE, TAIL GATE LATCH, RH
66150-92700

BU3#,HU30,RU30..TB

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66160-92700

BU3#,HU30,RU30..TB

 1
66166 - CAP, GATE LATCH HANDLE
66165-92700

BU3#,HU30,RU30..TB

 2
66280 - CHAIN ASSY, TAIL GATE, RH
66280-92700

BU3#,HU30,RU30..TB

 1
66280 - CHAIN ASSY, TAIL GATE, RH
66280-92700

BU3#,HU30,RU30..TB

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66290-92700

BU3#,HU30,RU30..TB

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66290-92700

BU3#,HU30,RU30..TB

 1
66321A - BUMPER, GATE RUBBER
66322-92801

BU3#,40,HU30,40,50,RU30,WU40..TB

OD=36

 10
66321A - BUMPER, GATE RUBBER
66322-92801

BU3#,40,HU30,40,50,RU30,WU40..TB

OD=36

 10
66321C - CUSHION, SUPPORT CORNER
66321-92703

BU20,3#,40,HU30,40,50,RU30,WU40..TB

 2
66701 - SUPPORT SUB-ASSY, SIDE GATE, RH
65570-92801

BU30,HU30,RU30..TB

 1
66701 - SUPPORT SUB-ASSY, SIDE GATE, RH
65570-92801

BU30,HU30,RU30..TB

 1
66701 - SUPPORT SUB-ASSY, SIDE GATE, RH
65570-92801

BU30,HU30,RU30..TB

 1
66702 - SUPPORT SUB-ASSY, SIDE GATE, LH
65580-92801

BU30,HU30,RU30..TB

 1
66702 - SUPPORT SUB-ASSY, SIDE GATE, LH
65580-92801

BU30,HU30,RU30..TB

 1
66702 - SUPPORT SUB-ASSY, SIDE GATE, LH
65580-92801

BU30,HU30,RU30..TB

 1
Common parts
65582-92700
65582-92801
65586-92701
65830-92700
65841-92700
66185-92700
66838-92700
90149-80005
90149-80006
90152-80007
90152-80009
90152-80010
90158-80003
90176-08028
90179-08146
90201-08023
90201-10049
90201-13018
91611-40814
91611-40820
91651-40612
91651-61025
93210-16016
93210-18020
93270-18035
93510-14014
94110-40600
94110-40800
94110-41000
94125-41200
94511-00800
94511-01000
94611-10800
94611-11200
94612-10600
94612-11000
96160-00800
