BU30L-QRDHTW3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8408)

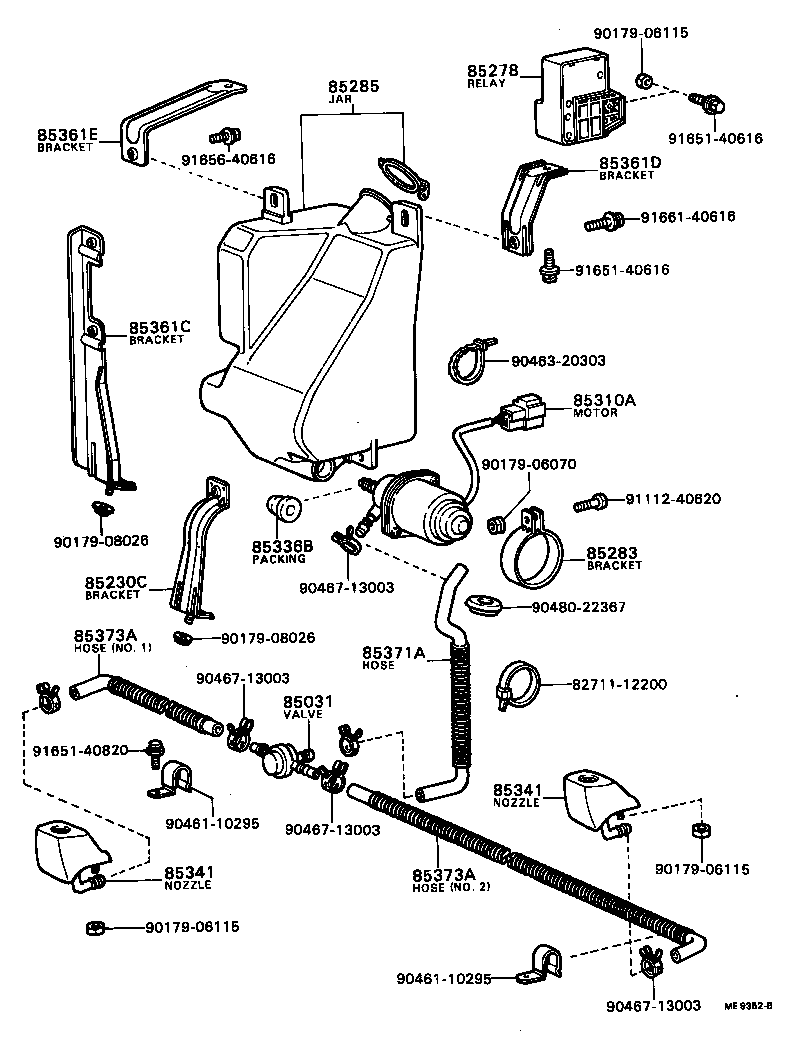

Click highlighted areas on diagram

diagram 8271112200 85031 85230C 85278 85283 85285 85310A 85336B 85341 85341 85361C 85361D 85361E 85371A 85373A 85373A 9017906070 9017906115 9017906115 9017906115 9017908026 9017908026 9046110295 9046110295 9046320303 9046713003 9046713003 9046713003 9046713003 9048022367 9111240620 9165140616 9165140616 9165140820 9165640616 9166140616
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-12010

BU20,30..EUR

 1
85230C - BRACKET ASSY, HEADLAMP CLEANER
85361-95401

BU20,30..EUR

 1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-90A00

BU20,30..EUR

 1
85283 - BRACKET, HEADLAMP CLEANER WASHER
85361-10070

BU20,30..EUR

 1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-95400

BU20,30..EUR

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-95400

BU20,30..EUR

 1
85336B - PACKING, HEADLAMP CLEANER WASHER
85336-10010

BU20,30..EUR

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-95402

BU20,30..EUR

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-95402

BU20,30..EUR

 2
85361C - BRACKET, WASHER
85361-95402

BU20,30..EUR

 1
85361D - BRACKET, HEADLAMP CLEANER, NO.2
85361-95403

BU20,30..EUR

 1
85361E - BRACKET, HEADLAMP CLEANER, NO.3
85361-95404

BU20,30..EUR

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85343-95400

BU20,30..EUR

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-95401

BU20,30..EUR

NO.1

 1
85343-95402

BU20,30..EUR

NO.2

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-95401

BU20,30..EUR

NO.1

 1
85343-95402

BU20,30..EUR

NO.2

 1
Common parts
82711-12200
90179-06070
90179-06115
90179-08026
90461-10295
90463-20303
90467-13003
90480-22367
91112-40620
91651-40616
91651-40820
91656-40616
91661-40616
