BU30L-QRDHTW3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )DMP,TR

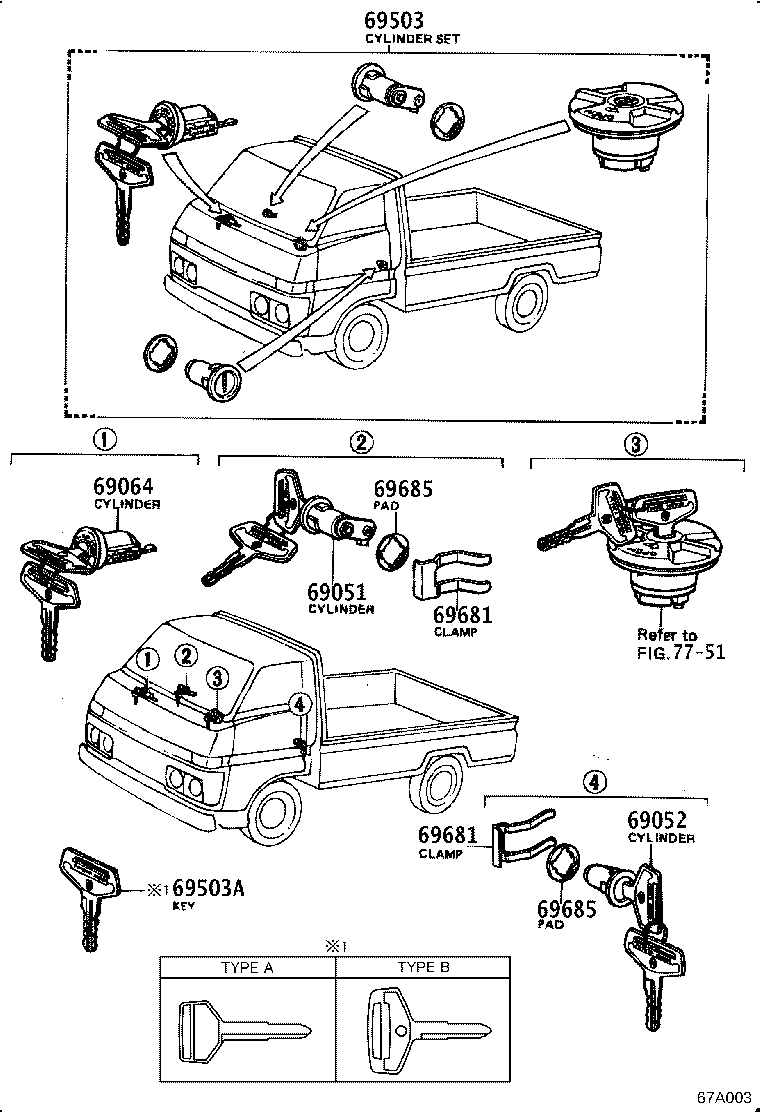

Click highlighted areas on diagram

diagram 69051 69052 69064 69503 69503A 69681 69681 69685 69685 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95401

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95401

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-90742

RU20,30..LHD..(4H,5H)

 1
69057-90740

BU20,25,30,32,HU30,JU20..LHD..5H

 1
69057-90741

BU20,30,32,HU30,JU20..LHD..5H

W/*EDIC

 1
69057-95404

BU20,30..EUR

W/*EDIC

 1
69503 - CYLINDER SET, LOCK
69503-95403

BU20,30,32,HU30,JU20..LHD..TR..5H

W/FUEL TANK CAP KEY,W/*EDIC

 1
69503-95408

BU20,30,32,HU30,JU20..LHD..TR..5H

W/O FUEL TANK CAP KEY,W/*EDIC

 1
69503-95402

RU20,30..LHD..TR..(4H,5H)

W/FUEL TANK CAP KEY

 1
69503-95404

BU20,30,32,HU30,JU20..LHD..TR..5H

W/O FUEL TANK CAP KEY

 1
69503-95405

RU20,30..LHD..TR..(4H,5H)

W/O FUEL TANK CAP KEY

 1
69503-95425

BU20,30..EUR

W/FUEL TANK CAP KEY,W/*EDIC

 1
69503-95410

BU20,25,30,32,HU30,JU20..LHD..(DMP,TR)..5H

W/FUEL TANK CAP KEY

 1
69503-95424

BU20,30..EUR

W/O FUEL TANK CAP KEY,W/*EDIC

 1
69503A - KEY, BLANK
90999-00066

BU20,25,30,HU30,JU20

MASTER KEY,W/FUEL TANK CAP,TYPE A:REFER ILLUST.

 1
90999-00072

BU2#,30,HU30,JU20,WU50

MASTER KEY,TYPE B:REFER ILLUST.

 1
90999-00066

RU2#,30

MASTER KEY,TYPE A:REFER ILLUST.

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

FR DOOR

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69685-95400

BU2#,30,31,32,HU30,40,50,JU20,RU2#,30,WU40

 4
69685 - PAD, LOCK CYLINDER
69685-95400

BU2#,30,31,32,HU30,40,50,JU20,RU2#,30,WU40

 4
Linked diagrams
7751
