BU30L-QRDHTW3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU20..TS..WT ; (7708- )BU23,3#,HU30,RU20,30..WT

Click highlighted areas on diagram

diagram 48046 48046A 48047 48344 48401 48402 48404 48405 48418 48419 48428 48429 48435 48435 48442 48475R 48481 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 48729 9010114003 9010114004 9010114006 9017016139 9161161030 9165660820 9411041000 9411041000 9411041000 9411541200 9411541200 9411571400 9411571400 9411571400 9451201000 9451201000 9451201400 9451201400 9451201400 9451201600 9453101200 9453101200 9461111001 9461111001
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36120

BU23,25,3#,HU30,RU2#,30..WT

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-16065

BU30,RU30

L=255,L=255

 4
90118-16065

BU30..EUR

L=255,W/DISTANCE PLATE,L=255

 2
90118-16065

BU20,30,RU20,30..WT

L=255,L=255

 4
90118-16164

BU30..EUR

L=245,L=245

 4
90118-16060

BU20,30,RU20,30..WT..EUR

L=205,W/5-LEAF SPRING

 4
90118-16065

BU30;RU30..ARL,GEN

L=255,L=255

 4
90118-16063

BU20,RU20,30..EUR

 4
90118-16065

BU23,30..EUR,GEN

L=255,L=255

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36120

BU23,25,3#,HU30,RU2#,30..WT

 1
48344 - STOPPER, BUMPER, REAR
48344-36050

BU20,23,30,RU20,30..(T3,TW1)..WT

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-36090

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48414-36090

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-36110

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-36110

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48418 - BRACKET, HELPER SPRING, FRONT RH
48418-36050

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48419 - BRACKET, HELPER SPRING, FRONT LH
48418-36050

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48428 - BRACKET, HELPER SPRING, REAR RH
48418-36050

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48429 - BRACKET, HELPER SPRING, REAR LH
48418-36050

BU20,23,30,31,32,HU30,RU20,30..WT

 1
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-36020

BU30..EUR

 4
48435-36020

BU20,30,HU30,RU20,30..WT

 4
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-36020

BU30..EUR

 4
48435-36020

BU20,30,HU30,RU20,30..WT

 4
48442 - SHACKLE, SPRING, NO.2
48042-36020

BU2#,30,HU30,JU20,RU2#,30

 2
48481 - SEAT, REAR SPRING, UPPER
48481-36040

BU23,3#,HU30,RU20,30

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39275

BU2#,30,HU30,RU2#,30..WT

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

BU23,25,3#,40,HU30,40,50,RU2#,30,WU40,50..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU2#,3#,HU30,JU20,RU2#,30

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU2#,3#,HU30,JU20,RU2#,30

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39275

BU2#,30,HU30,RU2#,30..WT

 1
Common parts
90101-14003
90101-14004
90101-14006
90170-16139
91611-61030
91656-60820
94110-41000
94115-41200
94115-71400
94512-01000
94512-01400
94512-01600
94531-01200
94611-11001

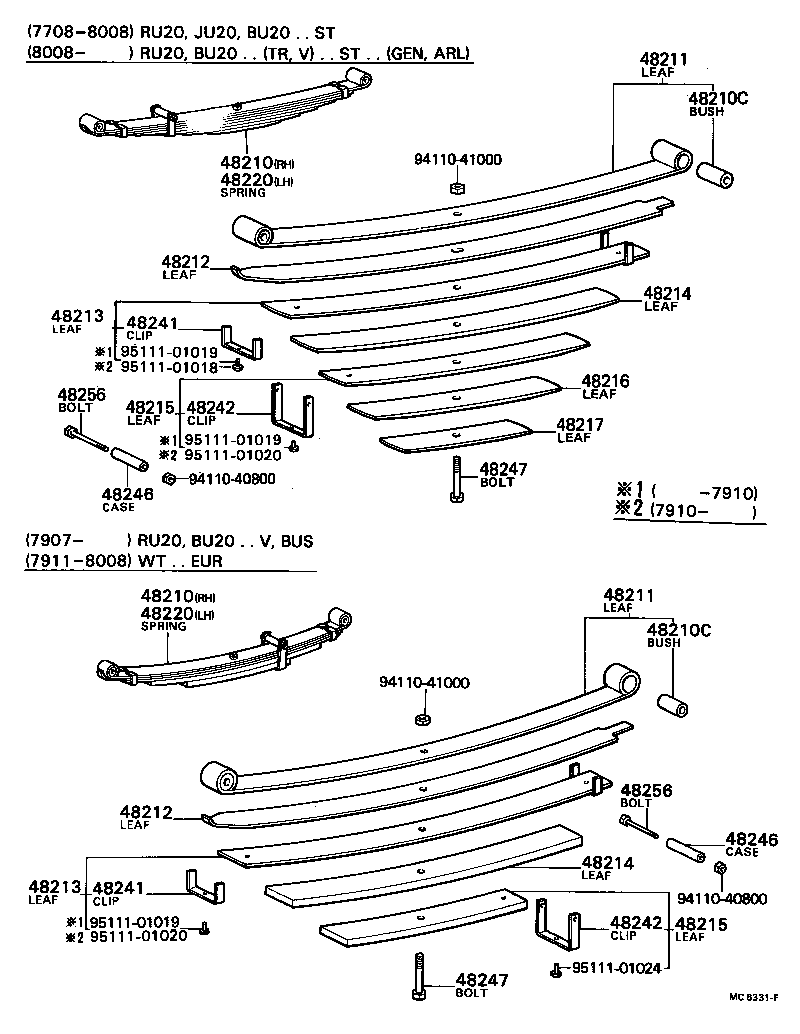

(7708-8008)ST ; (7907-8408)V ; (7911-8008)WT..EUR ; (8008- )TR,V..ST..ARL,GEN

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48217 48220 48220 48241 48241 48242 48242 48246 48246 48247 48247 48256 48256 9411040800 9411040800 9411041000 9411041000 9511101018 9511101019 9511101019 9511101019 9511101020 9511101020 9511101024
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

BU2#,30,HU30,JU20,RU2#,30

 4
90389-16004

BU20,RU20,30..EUR

 4
90389-16002

BU30..EUR

 4
90389-16002

BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN)

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

BU2#,30,HU30,JU20,RU2#,30

 4
90389-16004

BU20,RU20,30..EUR

 4
90389-16002

BU30..EUR

 4
90389-16002

BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN)

 4
48211 - LEAF, REAR SPRING, NO.1
48201-36240

BU30..EUR

10-LEAF SPRING

 2
48201-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48201-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48201-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48201-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48211 - LEAF, REAR SPRING, NO.1
48201-36240

BU30..EUR

10-LEAF SPRING

 2
48201-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48201-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48201-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48201-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48212 - LEAF, REAR SPRING, NO.2
48204-36240

BU30..EUR

10-LEAF SPRING

 2
48212-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48204-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48204-36240

BU30..T3..(EUR,GEN)

 2
48212-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48204-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48212 - LEAF, REAR SPRING, NO.2
48204-36240

BU30..EUR

10-LEAF SPRING

 2
48212-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48204-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48204-36240

BU30..T3..(EUR,GEN)

 2
48212-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48204-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48202-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48202-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48202-36240

BU30..EUR

10-LEAF SPRING

 2
48202-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48202-36240

BU30..T3..(EUR,GEN)

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48202-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48202-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48202-36240

BU30..EUR

10-LEAF SPRING

 2
48202-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48202-36240

BU30..T3..(EUR,GEN)

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36240

BU30..EUR

10-LEAF SPRING

 2
48214-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48214-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48214-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48214-36240

BU30..T3..(EUR,GEN)

 2
48214-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36240

BU30..EUR

10-LEAF SPRING

 2
48214-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48214-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48214-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48214-36240

BU30..T3..(EUR,GEN)

 2
48214-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36240

BU30..EUR

10-LEAF SPRING

 2
48203-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48215-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48215-36240

BU30..T3..(EUR,GEN)

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36240

BU30..EUR

10-LEAF SPRING

 2
48203-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48215-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48215-36240

BU30..T3..(EUR,GEN)

 2
48220 - SPRING ASSY, REAR LH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48220 - SPRING ASSY, REAR LH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48241 - CLIP, REAR SPRING, NO.1
48241-36200

BU20,RU20,30..EUR

4-LEAF SPRING

 4
48241-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 4
48242-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 2
48242-36190

BU2#,30,HU30,RU2#,30..WT

 2
48242-36190

BU30..EUR,GEN

 2
48241 - CLIP, REAR SPRING, NO.1
48241-36200

BU20,RU20,30..EUR

4-LEAF SPRING

 4
48241-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 4
48242-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 2
48242-36190

BU2#,30,HU30,RU2#,30..WT

 2
48242-36190

BU30..EUR,GEN

 2
48242 - CLIP, REAR SPRING, NO.2
48241-36190

BU2#,30,HU30,RU2#,30..WT

 4
48242-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48241-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 4
48241-36190

BU30..EUR,GEN

 4
48242 - CLIP, REAR SPRING, NO.2
48241-36190

BU2#,30,HU30,RU2#,30..WT

 4
48242-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48241-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 4
48241-36190

BU30..EUR,GEN

 4
48246 - CASE, REAR SPRING CLIP BOLT
48146-60010

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48246 - CASE, REAR SPRING CLIP BOLT
48146-60010

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48247-36040

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48247-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48247-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48247-36250

BU30..T3..(EUR,GEN)

 2
48247-36270

BU30..EUR

10-LEAF SPRING

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48247-36040

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48247-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48247-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48247-36250

BU30..T3..(EUR,GEN)

 2
48247-36270

BU30..EUR

10-LEAF SPRING

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
Common parts
94110-40800
94110-41000
95111-01018
95111-01019
95111-01020
95111-01024

(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210 48210C 48210C 48210C 48211 48211 48211 48212 48212 48212 48213 48213 48213 48214 48214 48214 48215 48215 48215 48216 48217 48220 48220 48220 48241 48241 48241 48242 48242 48242 48247 48247 48247 48261 48261 48261 48262 48262 48262 48263 48263 48263 48264 48264 48264 48265 48265 48265 48266 48281 48281 48281 9411041000 9411041000 9411041000 9511100816 9511100816 9511100816 9511100818 9511100818 9511100818 9511100822 9511100822 9511100822
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

BU2#,30,HU30,JU20,RU2#,30

 4
90389-16004

BU20,RU20,30..EUR

 4
90389-16002

BU30..EUR

 4
90389-16002

BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN)

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

BU2#,30,HU30,JU20,RU2#,30

 4
90389-16004

BU20,RU20,30..EUR

 4
90389-16002

BU30..EUR

 4
90389-16002

BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN)

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

BU2#,30,HU30,JU20,RU2#,30

 4
90389-16004

BU20,RU20,30..EUR

 4
90389-16002

BU30..EUR

 4
90389-16002

BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN)

 4
48211 - LEAF, REAR SPRING, NO.1
48201-36240

BU30..EUR

10-LEAF SPRING

 2
48201-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48201-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48201-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48201-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48211 - LEAF, REAR SPRING, NO.1
48201-36240

BU30..EUR

10-LEAF SPRING

 2
48201-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48201-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48201-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48201-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48211 - LEAF, REAR SPRING, NO.1
48201-36240

BU30..EUR

10-LEAF SPRING

 2
48201-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48201-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48201-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48201-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48212 - LEAF, REAR SPRING, NO.2
48204-36240

BU30..EUR

10-LEAF SPRING

 2
48212-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48204-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48204-36240

BU30..T3..(EUR,GEN)

 2
48212-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48204-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48212 - LEAF, REAR SPRING, NO.2
48204-36240

BU30..EUR

10-LEAF SPRING

 2
48212-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48204-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48204-36240

BU30..T3..(EUR,GEN)

 2
48212-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48204-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48212 - LEAF, REAR SPRING, NO.2
48204-36240

BU30..EUR

10-LEAF SPRING

 2
48212-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48204-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48204-36240

BU30..T3..(EUR,GEN)

 2
48212-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48204-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48202-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48202-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48202-36240

BU30..EUR

10-LEAF SPRING

 2
48202-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48202-36240

BU30..T3..(EUR,GEN)

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48202-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48202-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48202-36240

BU30..EUR

10-LEAF SPRING

 2
48202-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48202-36240

BU30..T3..(EUR,GEN)

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48202-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48202-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48202-36240

BU30..EUR

10-LEAF SPRING

 2
48202-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48202-36240

BU30..T3..(EUR,GEN)

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36240

BU30..EUR

10-LEAF SPRING

 2
48214-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48214-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48214-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48214-36240

BU30..T3..(EUR,GEN)

 2
48214-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36240

BU30..EUR

10-LEAF SPRING

 2
48214-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48214-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48214-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48214-36240

BU30..T3..(EUR,GEN)

 2
48214-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36240

BU30..EUR

10-LEAF SPRING

 2
48214-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48214-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48214-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48214-36240

BU30..T3..(EUR,GEN)

 2
48214-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36240

BU30..EUR

10-LEAF SPRING

 2
48203-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48215-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48215-36240

BU30..T3..(EUR,GEN)

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36240

BU30..EUR

10-LEAF SPRING

 2
48203-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48215-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48215-36240

BU30..T3..(EUR,GEN)

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36240

BU30..EUR

10-LEAF SPRING

 2
48203-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48215-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48215-36240

BU30..T3..(EUR,GEN)

 2
48220 - SPRING ASSY, REAR LH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48220 - SPRING ASSY, REAR LH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48220 - SPRING ASSY, REAR LH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48241 - CLIP, REAR SPRING, NO.1
48241-36200

BU20,RU20,30..EUR

4-LEAF SPRING

 4
48241-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 4
48242-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 2
48242-36190

BU2#,30,HU30,RU2#,30..WT

 2
48242-36190

BU30..EUR,GEN

 2
48241 - CLIP, REAR SPRING, NO.1
48241-36200

BU20,RU20,30..EUR

4-LEAF SPRING

 4
48241-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 4
48242-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 2
48242-36190

BU2#,30,HU30,RU2#,30..WT

 2
48242-36190

BU30..EUR,GEN

 2
48241 - CLIP, REAR SPRING, NO.1
48241-36200

BU20,RU20,30..EUR

4-LEAF SPRING

 4
48241-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 4
48242-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 2
48242-36190

BU2#,30,HU30,RU2#,30..WT

 2
48242-36190

BU30..EUR,GEN

 2
48242 - CLIP, REAR SPRING, NO.2
48241-36190

BU2#,30,HU30,RU2#,30..WT

 4
48242-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48241-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 4
48241-36190

BU30..EUR,GEN

 4
48242 - CLIP, REAR SPRING, NO.2
48241-36190

BU2#,30,HU30,RU2#,30..WT

 4
48242-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48241-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 4
48241-36190

BU30..EUR,GEN

 4
48242 - CLIP, REAR SPRING, NO.2
48241-36190

BU2#,30,HU30,RU2#,30..WT

 4
48242-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48241-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 4
48241-36190

BU30..EUR,GEN

 4
48247 - BOLT, REAR SPRING, CENTER
48247-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48247-36040

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48247-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48247-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48247-36250

BU30..T3..(EUR,GEN)

 2
48247-36270

BU30..EUR

10-LEAF SPRING

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48247-36040

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48247-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48247-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48247-36250

BU30..T3..(EUR,GEN)

 2
48247-36270

BU30..EUR

10-LEAF SPRING

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48247-36040

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48247-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48247-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48247-36250

BU30..T3..(EUR,GEN)

 2
48247-36270

BU30..EUR

10-LEAF SPRING

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48216-36240

BU30..EUR

10-LEAF SPRING

 2
48216-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48216-36250

BU30..T3..(EUR,GEN)

 2
48216-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48216-36240

BU30..EUR

10-LEAF SPRING

 2
48216-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48216-36250

BU30..T3..(EUR,GEN)

 2
48216-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48216-36240

BU30..EUR

10-LEAF SPRING

 2
48216-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48216-36250

BU30..T3..(EUR,GEN)

 2
48216-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48217-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48217-36240

BU30..EUR

10-LEAF SPRING

 2
48217-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48217-36250

BU30..T3..(EUR,GEN)

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48217-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48217-36240

BU30..EUR

10-LEAF SPRING

 2
48217-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48217-36250

BU30..T3..(EUR,GEN)

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48217-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48217-36240

BU30..EUR

10-LEAF SPRING

 2
48217-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48217-36250

BU30..T3..(EUR,GEN)

 2
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48203-36250

BU30..T3..(EUR,GEN)

 2
48203-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48203-36240

BU30..EUR

10-LEAF SPRING

 2
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48203-36250

BU30..T3..(EUR,GEN)

 2
48203-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48203-36240

BU30..EUR

10-LEAF SPRING

 2
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48203-36250

BU30..T3..(EUR,GEN)

 2
48203-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48203-36240

BU30..EUR

10-LEAF SPRING

 2
48264 - LEAF, REAR HELPER SPRING, NO.4
48219-36240

BU30..EUR

10-LEAF SPRING

 2
48219-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48219-36250

BU30..T3..(EUR,GEN)

 2
48219-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48264 - LEAF, REAR HELPER SPRING, NO.4
48219-36240

BU30..EUR

10-LEAF SPRING

 2
48219-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48219-36250

BU30..T3..(EUR,GEN)

 2
48219-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48264 - LEAF, REAR HELPER SPRING, NO.4
48219-36240

BU30..EUR

10-LEAF SPRING

 2
48219-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48219-36250

BU30..T3..(EUR,GEN)

 2
48219-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48265 - LEAF, REAR HELPER SPRING, NO.5
48221-36240

BU30..EUR

10-LEAF SPRING

 2
48221-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48221-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48221-36250

BU30..T3..(EUR,GEN)

 2
48265 - LEAF, REAR HELPER SPRING, NO.5
48221-36240

BU30..EUR

10-LEAF SPRING

 2
48221-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48221-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48221-36250

BU30..T3..(EUR,GEN)

 2
48265 - LEAF, REAR HELPER SPRING, NO.5
48221-36240

BU30..EUR

10-LEAF SPRING

 2
48221-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48221-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48221-36250

BU30..T3..(EUR,GEN)

 2
48266 - LEAF, REAR HELPER SPRING, NO.6
48222-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48222-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48222-36250

BU30..T3..(EUR,GEN)

 2
48281 - CLIP, REAR HELPER SPRING, NO.1
48242-36190

BU30;RU30..ARL,GEN

11-LEAF SPRING

 4
48242-36240

BU30..EUR

10-LEAF SPRING

 4
48242-36190

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 4
48242-36190

BU30..EUR,GEN

 4
48281 - CLIP, REAR HELPER SPRING, NO.1
48242-36190

BU30;RU30..ARL,GEN

11-LEAF SPRING

 4
48242-36240

BU30..EUR

10-LEAF SPRING

 4
48242-36190

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 4
48242-36190

BU30..EUR,GEN

 4
48281 - CLIP, REAR HELPER SPRING, NO.1
48242-36190

BU30;RU30..ARL,GEN

11-LEAF SPRING

 4
48242-36240

BU30..EUR

10-LEAF SPRING

 4
48242-36190

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 4
48242-36190

BU30..EUR,GEN

 4
Common parts
94110-41000
95111-00816
95111-00818
95111-00822

(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48216 48217 48220 48220 48241 48241 48242 48242 48247 48247 48261 48261 48262 48262 48263 48263 48264 48264 48265 48265 48266 48266 48267 48267 48281 48281 9411041000 9411041000 9511100816 9511100816 9511100818 9511100818 9511100822 9511100822
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

BU2#,30,HU30,JU20,RU2#,30

 4
90389-16004

BU20,RU20,30..EUR

 4
90389-16002

BU30..EUR

 4
90389-16002

BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN)

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

BU2#,30,HU30,JU20,RU2#,30

 4
90389-16004

BU20,RU20,30..EUR

 4
90389-16002

BU30..EUR

 4
90389-16002

BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN)

 4
48211 - LEAF, REAR SPRING, NO.1
48201-36240

BU30..EUR

10-LEAF SPRING

 2
48201-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48201-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48201-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48201-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48211 - LEAF, REAR SPRING, NO.1
48201-36240

BU30..EUR

10-LEAF SPRING

 2
48201-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48201-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48201-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48201-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48212 - LEAF, REAR SPRING, NO.2
48204-36240

BU30..EUR

10-LEAF SPRING

 2
48212-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48204-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48204-36240

BU30..T3..(EUR,GEN)

 2
48212-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48204-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48212 - LEAF, REAR SPRING, NO.2
48204-36240

BU30..EUR

10-LEAF SPRING

 2
48212-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48204-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48204-36240

BU30..T3..(EUR,GEN)

 2
48212-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48204-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48202-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48202-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48202-36240

BU30..EUR

10-LEAF SPRING

 2
48202-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48202-36240

BU30..T3..(EUR,GEN)

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48202-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48202-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48202-36240

BU30..EUR

10-LEAF SPRING

 2
48202-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48202-36240

BU30..T3..(EUR,GEN)

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36240

BU30..EUR

10-LEAF SPRING

 2
48214-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48214-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48214-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48214-36240

BU30..T3..(EUR,GEN)

 2
48214-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36240

BU30..EUR

10-LEAF SPRING

 2
48214-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48214-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48214-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48214-36240

BU30..T3..(EUR,GEN)

 2
48214-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36240

BU30..EUR

10-LEAF SPRING

 2
48203-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48215-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48215-36240

BU30..T3..(EUR,GEN)

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36240

BU30..EUR

10-LEAF SPRING

 2
48203-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48215-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48215-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48215-36240

BU30..T3..(EUR,GEN)

 2
48220 - SPRING ASSY, REAR LH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48220 - SPRING ASSY, REAR LH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48241 - CLIP, REAR SPRING, NO.1
48241-36200

BU20,RU20,30..EUR

4-LEAF SPRING

 4
48241-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 4
48242-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 2
48242-36190

BU2#,30,HU30,RU2#,30..WT

 2
48242-36190

BU30..EUR,GEN

 2
48241 - CLIP, REAR SPRING, NO.1
48241-36200

BU20,RU20,30..EUR

4-LEAF SPRING

 4
48241-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 4
48242-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 2
48242-36190

BU2#,30,HU30,RU2#,30..WT

 2
48242-36190

BU30..EUR,GEN

 2
48242 - CLIP, REAR SPRING, NO.2
48241-36190

BU2#,30,HU30,RU2#,30..WT

 4
48242-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48241-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 4
48241-36190

BU30..EUR,GEN

 4
48242 - CLIP, REAR SPRING, NO.2
48241-36190

BU2#,30,HU30,RU2#,30..WT

 4
48242-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48241-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 4
48241-36190

BU30..EUR,GEN

 4
48247 - BOLT, REAR SPRING, CENTER
48247-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48247-36040

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48247-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48247-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48247-36250

BU30..T3..(EUR,GEN)

 2
48247-36270

BU30..EUR

10-LEAF SPRING

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48247-36040

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48247-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48247-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48247-36250

BU30..T3..(EUR,GEN)

 2
48247-36270

BU30..EUR

10-LEAF SPRING

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48216-36240

BU30..EUR

10-LEAF SPRING

 2
48216-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48216-36250

BU30..T3..(EUR,GEN)

 2
48216-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48216-36240

BU30..EUR

10-LEAF SPRING

 2
48216-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48216-36250

BU30..T3..(EUR,GEN)

 2
48216-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48217-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48217-36240

BU30..EUR

10-LEAF SPRING

 2
48217-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48217-36250

BU30..T3..(EUR,GEN)

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48217-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48217-36240

BU30..EUR

10-LEAF SPRING

 2
48217-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48217-36250

BU30..T3..(EUR,GEN)

 2
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48203-36250

BU30..T3..(EUR,GEN)

 2
48203-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48203-36240

BU30..EUR

10-LEAF SPRING

 2
48263 - LEAF, REAR HELPER SPRING, NO.3
48203-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48203-36250

BU30..T3..(EUR,GEN)

 2
48203-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48203-36240

BU30..EUR

10-LEAF SPRING

 2
48264 - LEAF, REAR HELPER SPRING, NO.4
48219-36240

BU30..EUR

10-LEAF SPRING

 2
48219-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48219-36250

BU30..T3..(EUR,GEN)

 2
48219-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48264 - LEAF, REAR HELPER SPRING, NO.4
48219-36240

BU30..EUR

10-LEAF SPRING

 2
48219-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48219-36250

BU30..T3..(EUR,GEN)

 2
48219-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48265 - LEAF, REAR HELPER SPRING, NO.5
48221-36240

BU30..EUR

10-LEAF SPRING

 2
48221-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48221-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48221-36250

BU30..T3..(EUR,GEN)

 2
48265 - LEAF, REAR HELPER SPRING, NO.5
48221-36240

BU30..EUR

10-LEAF SPRING

 2
48221-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48221-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48221-36250

BU30..T3..(EUR,GEN)

 2
48266 - LEAF, REAR HELPER SPRING, NO.6
48222-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48222-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48222-36250

BU30..T3..(EUR,GEN)

 2
48266 - LEAF, REAR HELPER SPRING, NO.6
48222-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48222-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48222-36250

BU30..T3..(EUR,GEN)

 2
48281 - CLIP, REAR HELPER SPRING, NO.1
48242-36190

BU30;RU30..ARL,GEN

11-LEAF SPRING

 4
48242-36240

BU30..EUR

10-LEAF SPRING

 4
48242-36190

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 4
48242-36190

BU30..EUR,GEN

 4
48281 - CLIP, REAR HELPER SPRING, NO.1
48242-36190

BU30;RU30..ARL,GEN

11-LEAF SPRING

 4
48242-36240

BU30..EUR

10-LEAF SPRING

 4
48242-36190

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 4
48242-36190

BU30..EUR,GEN

 4
Common parts
94110-41000
95111-00816
95111-00818
95111-00822

(8008-8408)BU20,RU20,30..EUR

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48220 48241 48247 9411041000 9511101018
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16002

BU2#,30,HU30,JU20,RU2#,30

 4
90389-16004

BU20,RU20,30..EUR

 4
90389-16002

BU30..EUR

 4
90389-16002

BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN)

 4
48211 - LEAF, REAR SPRING, NO.1
48201-36240

BU30..EUR

10-LEAF SPRING

 2
48201-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48201-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48201-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48201-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48212 - LEAF, REAR SPRING, NO.2
48204-36240

BU30..EUR

10-LEAF SPRING

 2
48212-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48204-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48204-36240

BU30..T3..(EUR,GEN)

 2
48212-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48204-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36230

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48202-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48202-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48202-36240

BU30..EUR

10-LEAF SPRING

 2
48202-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48202-36240

BU30..T3..(EUR,GEN)

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36240

BU30..EUR

10-LEAF SPRING

 2
48214-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48214-36240

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48214-36240

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48214-36240

BU30..T3..(EUR,GEN)

 2
48214-36311

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48220 - SPRING ASSY, REAR LH
48210-36250

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36241

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36312

BU20,30,RU20,30..WT..EUR

5-LEAF,5-LEAF SPRING

 1
48210-36240

BU30..EUR

10-LEAF,10-LEAF SPRING

 1
48210-36251

BU30..T3..(EUR,GEN)

11-LEAF

 1
48210-36251

BU30;RU30..ARL,GEN

11-LEAF,11-LEAF SPRING

 1
48210-36251

BU30,RU30;BU20..WT..EUR

11-LEAF,11-LEAF SPRING

 1
48210-36450

BU20,RU20,30..EUR

4-LEAF,4-LEAF SPRING

 1
48241 - CLIP, REAR SPRING, NO.1
48241-36200

BU20,RU20,30..EUR

4-LEAF SPRING

 4
48241-36200

BU20,30,RU20,30..EUR

5-LEAF SPRING

 4
48242-36190

BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN)

 2
48242-36190

BU2#,30,HU30,RU2#,30..WT

 2
48242-36190

BU30..EUR,GEN

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36250

BU30,RU30;BU20..WT..EUR

11-LEAF SPRING

 2
48247-36040

BU20,30,RU20,30..EUR

5-LEAF SPRING

 2
48247-36250

BU30;RU30..ARL,GEN

11-LEAF SPRING

 2
48247-36450

BU20,RU20,30..EUR

4-LEAF SPRING

 2
48247-36250

BU30..T3..(EUR,GEN)

 2
48247-36270

BU30..EUR

10-LEAF SPRING

 2
Common parts
94110-41000
95111-01018
