BU30L-MRDHT3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

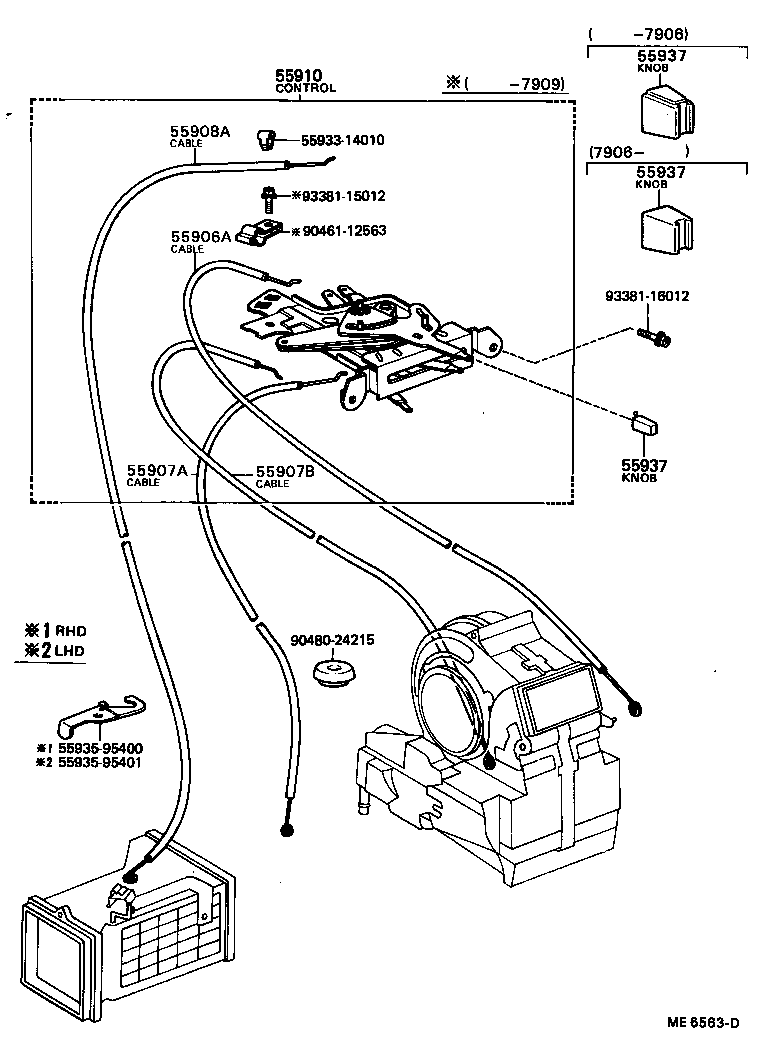

Click highlighted areas on diagram

diagram 55906A 55907A 55907B 55908A 55910 5593314010 5593595400 5593595401 55937 55937 55937 9046112563 9048024215 9338115012 9338116012
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95401

BU20,25,3#,40,HU30,40,50,JU20,RU2#,30,WU40

L=685

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95400

BU2#,3#,HU30,JU20,RU2#,30

L=835

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95400

BU20,25,30,31,32,HU30,JU20,RU2#,30

L=935

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95014

BU20,25,3#,40,HU30,RU2#,30,WU40..LHD

 1
55910-95402

BU2#,30,HU30,JU20,RU2#,30..LHD

 1
55910-95404

BU2#,30,HU30,RU2#,30..LHD

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-20120

BU2#,30,HU30,JU20,RU2#,30

 3
55905-20140

BU2#,30,HU30,RU2#,30

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-20120

BU2#,30,HU30,JU20,RU2#,30

 3
55905-20140

BU2#,30,HU30,RU2#,30

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-20120

BU2#,30,HU30,JU20,RU2#,30

 3
55905-20140

BU2#,30,HU30,RU2#,30

 3
Common parts
55933-14010
55935-95400
55935-95401
90461-12563
90480-24215
93381-15012
93381-16012

(7708- )BU2#,30,31,32,HU30,JU20,RU2#,30

Click highlighted areas on diagram

diagram 55956 55956 6786830030 6786830030 87174 87174 87174 87210 87211 87211A 87231 87231A 87231A 87232 87232A 87232A 9046106092 9046106092 9046110245 9046110245 9046110276 9046110277 9046110342 9046110342 9046110495 9046308133 9046315439 9046706003 9046706012 9046706027 9161140816 9161140816 9161140816 9165140616 9165540620
Part # Description Qty Price
87174 - GUIDE, AIR DUCT
87174-95400

BU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD

 1
87174-95400

BU2#,30,HU30,JU20,RU2#,30

 1
87174 - GUIDE, AIR DUCT
87174-95400

BU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD

 1
87174-95400

BU2#,30,HU30,JU20,RU2#,30

 1
87174 - GUIDE, AIR DUCT
87174-95400

BU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD

 1
87174-95400

BU2#,30,HU30,JU20,RU2#,30

 1
87210 - DAMPER ASSY, AIR
87210-95401

BU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD

 1
87211 - DUCT, AIR, NO.1
87211-95401

BU2#,3#,40,HU30,JU20,RU2#,30..LHD

 1
87211A - DUCT, AIR, NO.2
87201-95401

BU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-95400

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-95401

BU2#,30,31,32,HU30,JU20,RU2#,30

 1
Common parts
67868-30030
90461-06092
90461-10245
90461-10276
90461-10277
90461-10342
90461-10495
90463-08133
90463-15439
90467-06003
90467-06012
90467-06027
91611-40816
91651-40616
91655-40620

(8008- )

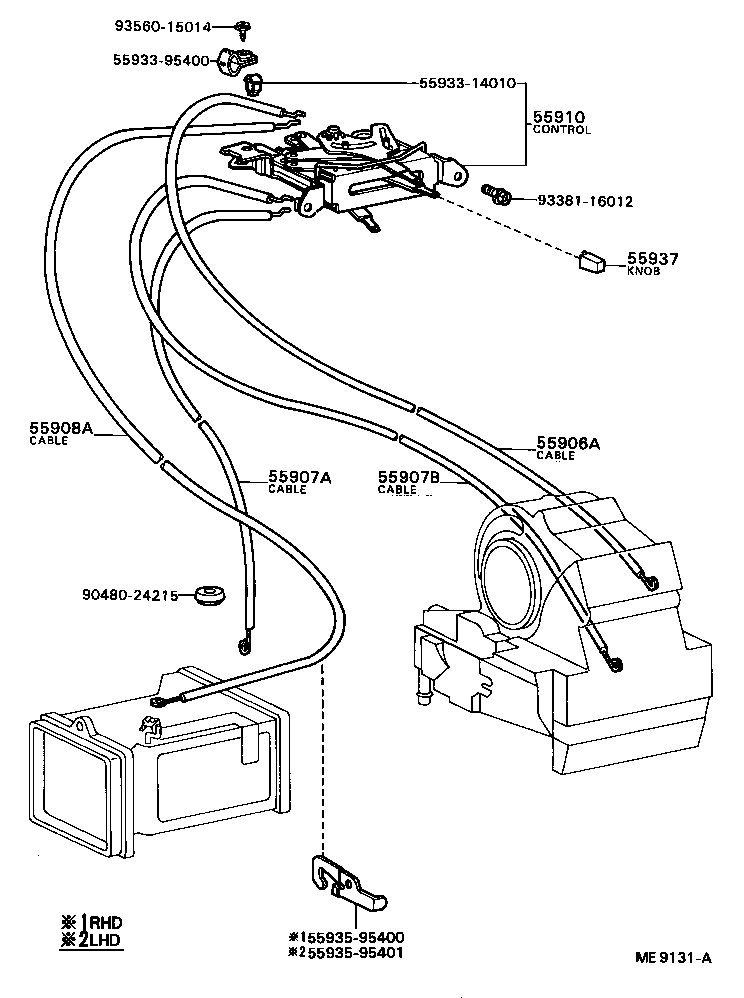

Click highlighted areas on diagram

diagram 55906A 55907A 55907B 55908A 55910 5593314010 5593395400 5593595400 5593595401 55937 9048024215 9338116012 9356015014
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95401

BU20,25,3#,40,HU30,40,50,JU20,RU2#,30,WU40

L=685

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95400

BU2#,3#,HU30,JU20,RU2#,30

L=835

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95400

BU20,25,30,31,32,HU30,JU20,RU2#,30

L=935

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95014

BU20,25,3#,40,HU30,RU2#,30,WU40..LHD

 1
55910-95402

BU2#,30,HU30,JU20,RU2#,30..LHD

 1
55910-95404

BU2#,30,HU30,RU2#,30..LHD

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-20120

BU2#,30,HU30,JU20,RU2#,30

 3
55905-20140

BU2#,30,HU30,RU2#,30

 3
Common parts
55933-14010
55933-95400
55935-95400
55935-95401
90480-24215
93381-16012
93560-15014
