BU30L-MRDHT3 (1977)
Toyota Dyna
(7708-8104)H

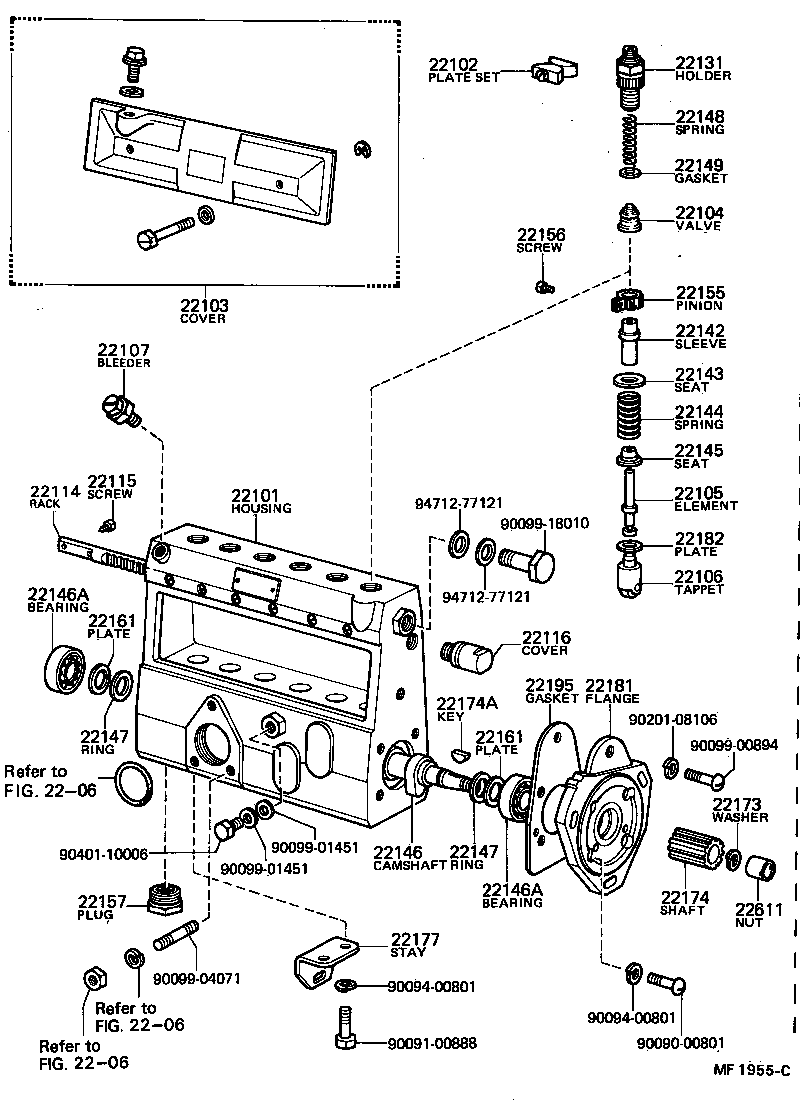

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22190-56041 |
B..BU2#,30 |
1 | ||
| 22190-56042 |
B,2B,3B..BU2#,3# |
1 | ||
| 22102 - PLATE SET, VALVE HOLDER LOCK | ||||
| 22102-77021 |
B,2B,3B..BU2#,3#,40 |
3 | ||
| 22103 - COVER SUB-ASSY, INJECTION PUMP | ||||
| 22103-48030 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-77020 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| 22105-56010 |
B..BU2#,30 |
4 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| 22106-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22107 - BLEEDER SUB-ASSY, AIR | ||||
| 22150-67010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22114 - RACK, CONTROL | ||||
| 22114-48030 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22115 - SCREW, RACK GUIDE | ||||
| 22115-77020 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| 22116-46010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-77020 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| 22142-77020 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-77020 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| 22146-56010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-76010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22155 - PINION, PLUNGER CONTROL | ||||
| 22155-76010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22156 - SCREW, PLUNGER CONTROL PINION CLAMP | ||||
| 22156-76010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22157 - PLUG, INJECTION PUMP FELT PLATE | ||||
| 22157-48023 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
B,2B,3B..BU2#,3#,40 T=0.10,T=0.10 |
2 | ||
| 22162-76010 |
B,2B,3B..BU2#,3#,40 T=0.12,T=0.12 |
2 | ||
| 22163-76010 |
B,2B,3B..BU2#,3#,40 T=0.14,T=0.14 |
2 | ||
| 22165-76010 |
B,2B,3B..BU2#,3#,40 T=0.18,T=0.18 |
2 | ||
| 22166-76010 |
B,2B,3B..BU2#,3#,40 T=0.50,T=0.50 |
2 | ||
| 22164-76010 |
B,2B,3B..BU2#,3#,40 T=0.16,T=0.16 |
2 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
B,2B,3B..BU2#,3#,40 T=0.10,T=0.10 |
2 | ||
| 22162-76010 |
B,2B,3B..BU2#,3#,40 T=0.12,T=0.12 |
2 | ||
| 22163-76010 |
B,2B,3B..BU2#,3#,40 T=0.14,T=0.14 |
2 | ||
| 22165-76010 |
B,2B,3B..BU2#,3#,40 T=0.18,T=0.18 |
2 | ||
| 22166-76010 |
B,2B,3B..BU2#,3#,40 T=0.50,T=0.50 |
2 | ||
| 22164-76010 |
B,2B,3B..BU2#,3#,40 T=0.16,T=0.16 |
2 | ||
| 22173 - WASHER, SPRING | ||||
| 22173-46010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-47010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22174A - KEY(FOR SPLINE SHAFT) | ||||
| 90099-13002 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22177 - STAY, INJECTION PUMP BODY | ||||
| 22177-56041 |
B,2B,3B..BU2#,3# |
1 | ||
| 22181 - FLANGE, INJECTION PUMP | ||||
| 22181-56040 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22183-46010 |
B,2B,3B..BU2#,3#,40 T=0.20,T=0.2 |
6 | ||
| 22182-46010 |
B,2B,3B..BU2#,3#,40 T=0.10,T=0.1 |
6 | ||
| 22184-46010 |
B,2B,3B..BU2#,3#,40 T=0.30,T=0.3 |
6 | ||
| 22185-46010 |
B,2B,3B..BU2#,3#,40 T=0.40,T=0.4 |
6 | ||
| 22186-46010 |
B,2B,3B..BU2#,3#,40 T=0.50,T=0.5 |
6 | ||
| 22186-48010 |
B,2B,3B..BU2#,3#,40 T=0.15,T=0.15 |
6 | ||
| 22188-46010 |
B,2B,3B..BU2#,3#,40 T=0.70,T=0.7 |
6 | ||
| 22189-48031 |
B,2B,3B..BU2#,3#,40 T=0.90,T=0.9 |
6 | ||
| 22187-46010 |
B,2B,3B..BU2#,3#,40 T=0.60,T=0.6 |
6 | ||
| 22189-46010 |
B,2B,3B..BU2#,3#,40 T=0.80,T=0.8 |
6 | ||
| 22189-48035 |
B,2B,3B..BU2#,3#,40 T=1.30,T=1.3 |
6 | ||
| 22189-48034 |
B,2B,3B..BU2#,3#,40 T=1.20,T=1.2 |
6 | ||
| 22189-48032 |
B,2B,3B..BU2#,3#,40 T=1.00,T=1.0 |
6 | ||
| 22189-48033 |
B,2B,3B..BU2#,3#,40 T=1.10,T=1.1 |
6 | ||
| 22189-48036 |
B,2B,3B..BU2#,3#,40 T=1.40,T=1.4 |
6 | ||
| 22195 - GASKET, BEARING COVER | ||||
| 22195-48030 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-46010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| Common parts | ||||
| 90090-00801 | ||||
| 90091-00888 | ||||
| 90094-00801 | ||||
| 90099-00894 | ||||
| 90099-01451 | ||||
| 90099-04071 | ||||
| 90099-18010 | ||||
| 90201-08106 | ||||
| 90401-10006 | ||||
| 94712-77121 | ||||
| Linked diagrams | ||||
| 2206 | ||||
(7708- )B,2B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22190-56041 |
B..BU2#,30 |
1 | ||
| 22190-56042 |
B,2B,3B..BU2#,3# |
1 | ||
| 22102 - PLATE SET, VALVE HOLDER LOCK | ||||
| 22102-77021 |
B,2B,3B..BU2#,3#,40 |
3 | ||
| 22103 - COVER SUB-ASSY, INJECTION PUMP | ||||
| 22103-48030 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-77020 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| 22105-56010 |
B..BU2#,30 |
4 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| 22106-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22107 - BLEEDER SUB-ASSY, AIR | ||||
| 22150-67010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22114 - RACK, CONTROL | ||||
| 22114-48030 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22115 - SCREW, RACK GUIDE | ||||
| 22115-77020 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| 22116-46010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-77020 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| 22142-77020 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-77020 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| 22146-56010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-76010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22155 - PINION, PLUNGER CONTROL | ||||
| 22155-76010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22156 - SCREW, PLUNGER CONTROL PINION CLAMP | ||||
| 22156-76010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22157 - PLUG, INJECTION PUMP FELT PLATE | ||||
| 22157-48023 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
B,2B,3B..BU2#,3#,40 T=0.10,T=0.10 |
2 | ||
| 22162-76010 |
B,2B,3B..BU2#,3#,40 T=0.12,T=0.12 |
2 | ||
| 22163-76010 |
B,2B,3B..BU2#,3#,40 T=0.14,T=0.14 |
2 | ||
| 22165-76010 |
B,2B,3B..BU2#,3#,40 T=0.18,T=0.18 |
2 | ||
| 22166-76010 |
B,2B,3B..BU2#,3#,40 T=0.50,T=0.50 |
2 | ||
| 22164-76010 |
B,2B,3B..BU2#,3#,40 T=0.16,T=0.16 |
2 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
B,2B,3B..BU2#,3#,40 T=0.10,T=0.10 |
2 | ||
| 22162-76010 |
B,2B,3B..BU2#,3#,40 T=0.12,T=0.12 |
2 | ||
| 22163-76010 |
B,2B,3B..BU2#,3#,40 T=0.14,T=0.14 |
2 | ||
| 22165-76010 |
B,2B,3B..BU2#,3#,40 T=0.18,T=0.18 |
2 | ||
| 22166-76010 |
B,2B,3B..BU2#,3#,40 T=0.50,T=0.50 |
2 | ||
| 22164-76010 |
B,2B,3B..BU2#,3#,40 T=0.16,T=0.16 |
2 | ||
| 22173 - WASHER, SPRING | ||||
| 22173-46010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-47010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22174A - KEY(FOR SPLINE SHAFT) | ||||
| 90099-13002 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22177 - STAY, INJECTION PUMP BODY | ||||
| 22177-56041 |
B,2B,3B..BU2#,3# |
1 | ||
| 22181 - FLANGE, INJECTION PUMP | ||||
| 22181-56040 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22183-46010 |
B,2B,3B..BU2#,3#,40 T=0.20,T=0.2 |
6 | ||
| 22182-46010 |
B,2B,3B..BU2#,3#,40 T=0.10,T=0.1 |
6 | ||
| 22184-46010 |
B,2B,3B..BU2#,3#,40 T=0.30,T=0.3 |
6 | ||
| 22185-46010 |
B,2B,3B..BU2#,3#,40 T=0.40,T=0.4 |
6 | ||
| 22186-46010 |
B,2B,3B..BU2#,3#,40 T=0.50,T=0.5 |
6 | ||
| 22186-48010 |
B,2B,3B..BU2#,3#,40 T=0.15,T=0.15 |
6 | ||
| 22188-46010 |
B,2B,3B..BU2#,3#,40 T=0.70,T=0.7 |
6 | ||
| 22189-48031 |
B,2B,3B..BU2#,3#,40 T=0.90,T=0.9 |
6 | ||
| 22187-46010 |
B,2B,3B..BU2#,3#,40 T=0.60,T=0.6 |
6 | ||
| 22189-46010 |
B,2B,3B..BU2#,3#,40 T=0.80,T=0.8 |
6 | ||
| 22189-48035 |
B,2B,3B..BU2#,3#,40 T=1.30,T=1.3 |
6 | ||
| 22189-48034 |
B,2B,3B..BU2#,3#,40 T=1.20,T=1.2 |
6 | ||
| 22189-48032 |
B,2B,3B..BU2#,3#,40 T=1.00,T=1.0 |
6 | ||
| 22189-48033 |
B,2B,3B..BU2#,3#,40 T=1.10,T=1.1 |
6 | ||
| 22189-48036 |
B,2B,3B..BU2#,3#,40 T=1.40,T=1.4 |
6 | ||
| 22195 - GASKET, BEARING COVER | ||||
| 22195-48030 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-46010 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| Common parts | ||||
| 22618-77020 | ||||
| 90099-00894 | ||||
| 90099-00928 | ||||
| 90099-01451 | ||||
| 90099-18010 | ||||
| 90401-10006 | ||||
| 91611-40814 | ||||
| 94712-77121 | ||||
| Linked diagrams | ||||
| 2206 | ||||
