BU30L-MRDHT3 (1977)
Toyota Dyna
(7708-8104)H ; (8204-8408)2H

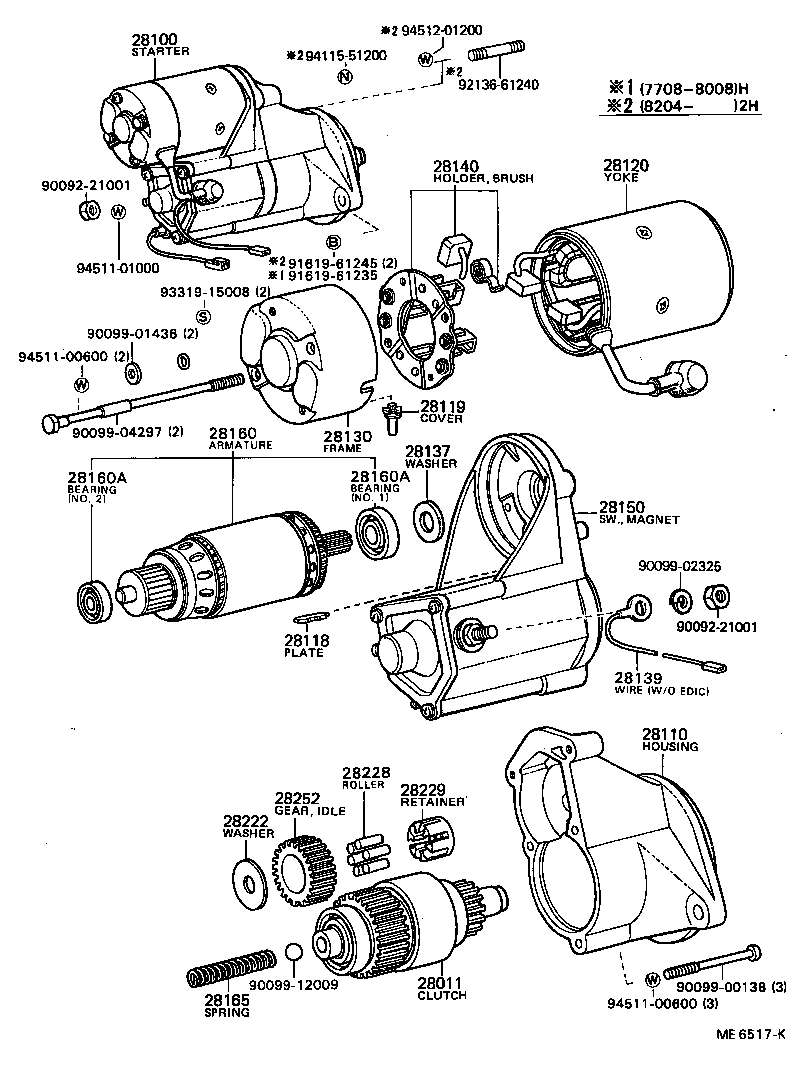

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
B,H..BU2#,30,HU30 12V 2.5KW,24V 4.5KW,W/O EDIC |
1 | ||
| 28011-77090 |
B,H,2J..BU2#,30,HU30,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28011-54010 |
B,H..BU2#,30,HU30 12V 2.5KW,24V 4.5KW,W/EDIC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56050 |
B,3B..BU20,25,30,32,36..GEN,GHI 12V 2.5KW,W/O EDIC |
1 | ||
| 28100-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW W/EDIC |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-56050 |
B,H,3B,2J..BU20,25,30,32,36,HU30,JU20..EUR,GEN,GHI 12V 2.5KW,24V 4.5KW,W/O EDIC |
1 | ||
| 28139-77090 |
B,H,2B,3B,2J..BU20,25,3#,HU30,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
6 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 92136-61240 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94512-01200 | ||||
(7708- )B,2B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
B,H..BU2#,30,HU30 12V 2.5KW,24V 4.5KW,W/O EDIC |
1 | ||
| 28011-77090 |
B,H,2J..BU2#,30,HU30,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28011-54010 |
B,H..BU2#,30,HU30 12V 2.5KW,24V 4.5KW,W/EDIC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56050 |
B,3B..BU20,25,30,32,36..GEN,GHI 12V 2.5KW,W/O EDIC |
1 | ||
| 28100-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW W/EDIC |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-56050 |
B,H,3B,2J..BU20,25,30,32,36,HU30,JU20..EUR,GEN,GHI 12V 2.5KW,24V 4.5KW,W/O EDIC |
1 | ||
| 28139-77090 |
B,H,2B,3B,2J..BU20,25,3#,HU30,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
6 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90116-14260 | ||||
| 91112-41465 | ||||
| 93319-15008 | ||||
| 94115-41400 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
