BU30L-MRDHT3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )B,2B,3B

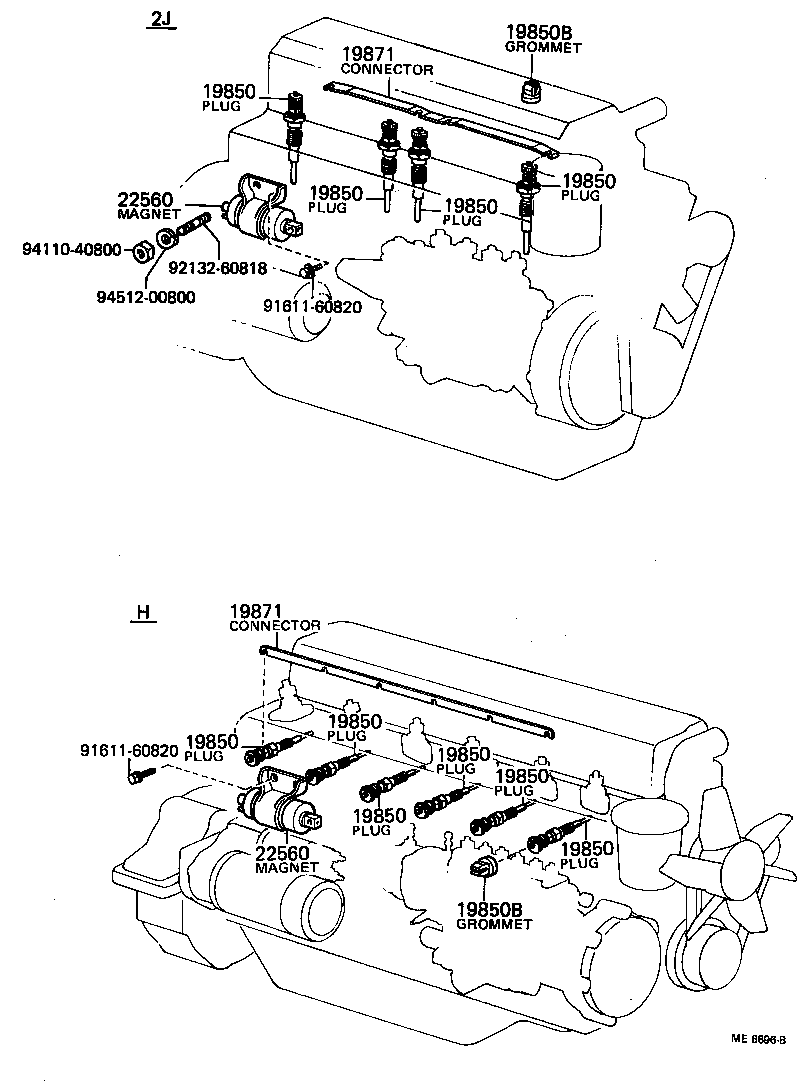

Click highlighted areas on diagram

diagram 19807 19850 19850B 19871 22560 9161160816
Part # Description Qty Price
19807 - INSULATOR SUB-ASSY, GLOW PLUG, NO.1
19877-56010

B..BU2#,30

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-06004

B..BU2#,30

 5
90189-05011

B..BU2#,30

 3
19871 - CONNECTOR, GLOW PLUG NO.1
19871-56010

B..BU2#,30

 1
22560 - MAGNET ASSY, OVER INJECTION
22560-56040

B,3B..BU2#,30,32,40..GEN,GHI

12V

 1
Common parts
91611-60816

(7708-8104)H

Click highlighted areas on diagram

diagram 19850 19850 19850 19850 19850 19850 19850 19850 19850 19850 19850B 19850B 19871 19871 22560 22560 9161160820 9161160820 9213260818 9411040800 9451200800
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850 - PLUG ASSY, GLOW
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850-56022

B..BU2#,30..ARL,GEN

*12V-8.5V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-06004

B..BU2#,30

 5
90189-06004

B..BU2#,30

 5
90189-05011

B..BU2#,30

 3
90189-05011

B..BU2#,30

 3
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-06004

B..BU2#,30

 5
90189-06004

B..BU2#,30

 5
90189-05011

B..BU2#,30

 3
90189-05011

B..BU2#,30

 3
19871 - CONNECTOR, GLOW PLUG NO.1
19871-56010

B..BU2#,30

 1
19871-56010

B..BU2#,30

 1
19871 - CONNECTOR, GLOW PLUG NO.1
19871-56010

B..BU2#,30

 1
19871-56010

B..BU2#,30

 1
22560 - MAGNET ASSY, OVER INJECTION
22560-56040

B,3B..BU2#,30,32,40..GEN,GHI

12V

 1
22560-56040

B,3B..BU2#,30,32,40..GEN,GHI

12V

 1
22560 - MAGNET ASSY, OVER INJECTION
22560-56040

B,3B..BU2#,30,32,40..GEN,GHI

12V

 1
22560-56040

B,3B..BU2#,30,32,40..GEN,GHI

12V

 1
Common parts
91611-60820
92132-60818
94110-40800
94512-00800
