BU30L-MRDHT (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

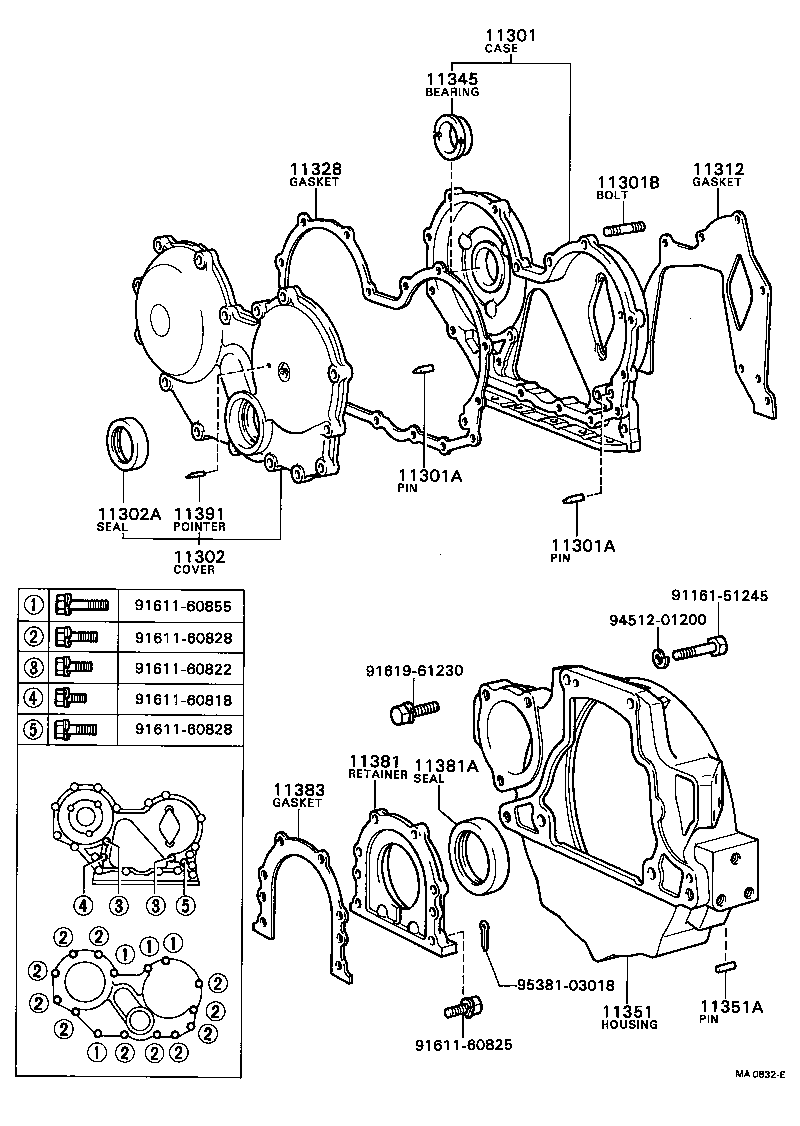

(7708-8104)H

Click highlighted areas on diagram

diagram 11301 11301A 11301A 11301B 11302 11302A 11312 11328 11345 11351 11351A 11381 11381A 11383 11391 9116151245 9161160818 9161160822 9161160825 9161160828 9161160828 9161160855 9161961230 9451201200 9538103018
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-56022

B..BU2#,30

 1
11301-56030

B,2B,3B..BU2#,3#,40

 1
11301-56020

B..BU2#,30

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,2B,3B..BU2#,3#,40

L=18,OD=8,L=18,OD=8

 2
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,2B,3B..BU2#,3#,40

L=18,OD=8,L=18,OD=8

 2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10048

B,2B,3B..BU2#,3#,40

L=40,S=19&12

 3
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-56020

B..BU2#,30

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50002

B,2B,3B..BU2#,3#,40

 1
11312 - GASKET, FRONT END PLATE
11312-56020

B..BU2#,30

 1
11312-56030

B,2B,3B..BU2#,3#,40

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-56020

B..BU2#,30

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

B,2B,3B..BU2#,3#,40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-56020

B..BU2#,30

 1
11381-56030

B,2B,3B..BU2#,3#,40

 1
11381A - SEAL, ENGINE REAR OIL
90311-95001

B,2B,3B..BU2#,3#,40

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56030

B,2B,3B..BU2#,3#,40

 1
11383-56020

B..BU2#,30

 1
11391 - POINTER, TIMING
11391-56020

B,2B,3B..BU2#,3#,40

 1
Common parts
91161-51245
91611-60818
91611-60822
91611-60825
91611-60828
91611-60855
91619-61230
94512-01200
95381-03018

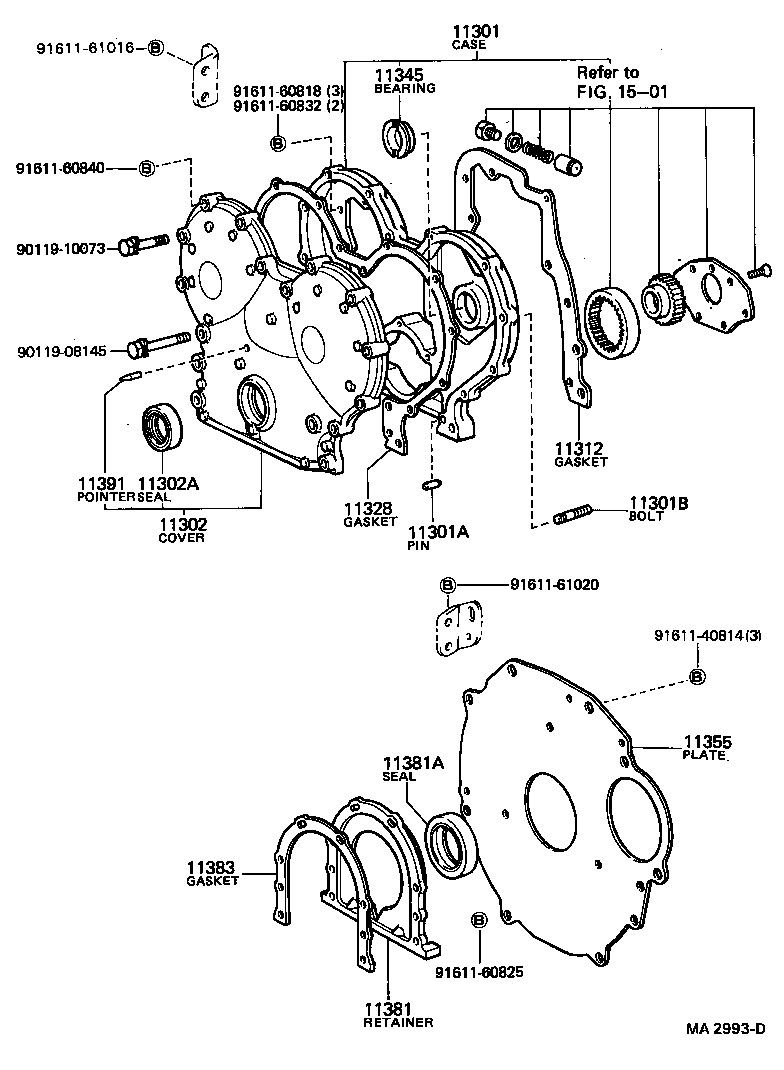

(7708-8008)B

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 11391 1501 9011908145 9011910073 9161140814 9161160818 9161160825 9161160832 9161160840 9161161016 9161161020
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-56022

B..BU2#,30

 1
11301-56030

B,2B,3B..BU2#,3#,40

 1
11301-56020

B..BU2#,30

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,2B,3B..BU2#,3#,40

L=18,OD=8,L=18,OD=8

 2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10048

B,2B,3B..BU2#,3#,40

L=40,S=19&12

 3
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-56020

B..BU2#,30

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50002

B,2B,3B..BU2#,3#,40

 1
11312 - GASKET, FRONT END PLATE
11312-56020

B..BU2#,30

 1
11312-56030

B,2B,3B..BU2#,3#,40

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-56020

B..BU2#,30

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

B,2B,3B..BU2#,3#,40

 1
11355 - PLATE, REAR END
11355-56030

B..BU2#,30

 1
11355-56050

B,2B,3B..BU2#,3#,40

 1
11355-56051

B,2B,3B..BU2#,3#,40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-56020

B..BU2#,30

 1
11381-56030

B,2B,3B..BU2#,3#,40

 1
11381A - SEAL, ENGINE REAR OIL
90311-95001

B,2B,3B..BU2#,3#,40

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56030

B,2B,3B..BU2#,3#,40

 1
11383-56020

B..BU2#,30

 1
11391 - POINTER, TIMING
11391-56020

B,2B,3B..BU2#,3#,40

 1
Common parts
90119-08145
90119-10073
91611-40814
91611-60818
91611-60825
91611-60832
91611-60840
91611-61016
91611-61020
Linked diagrams
1501

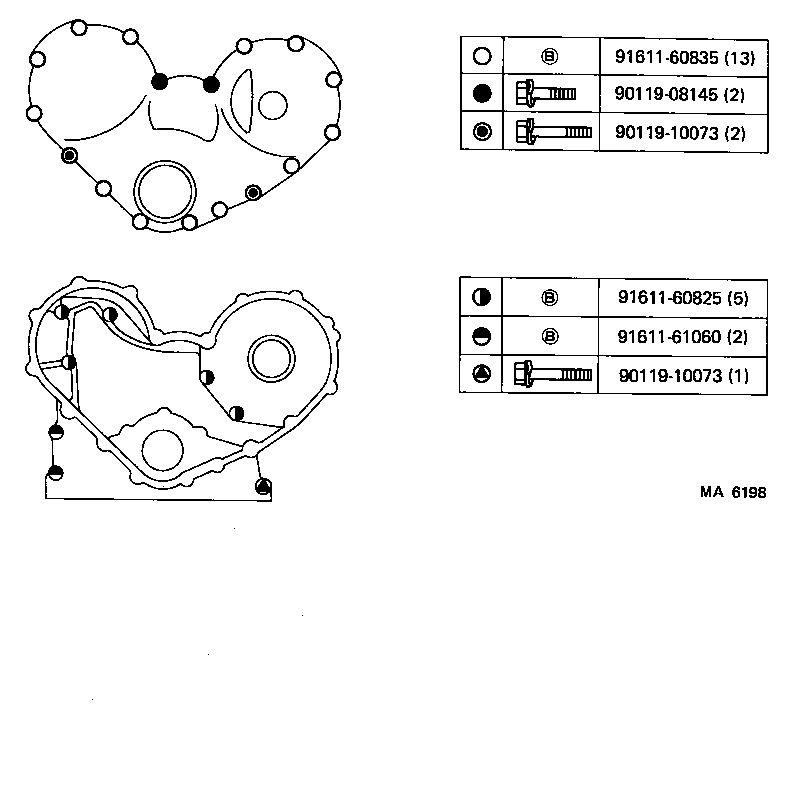

(8008- )B,2B,3B

Click highlighted areas on diagram

diagram 9011908145 9011910073 9011910073 9161160825 9161160835 9161161060
Part # Description Qty Price
Common parts
90119-08145
90119-10073
91611-60825
91611-60835
91611-61060

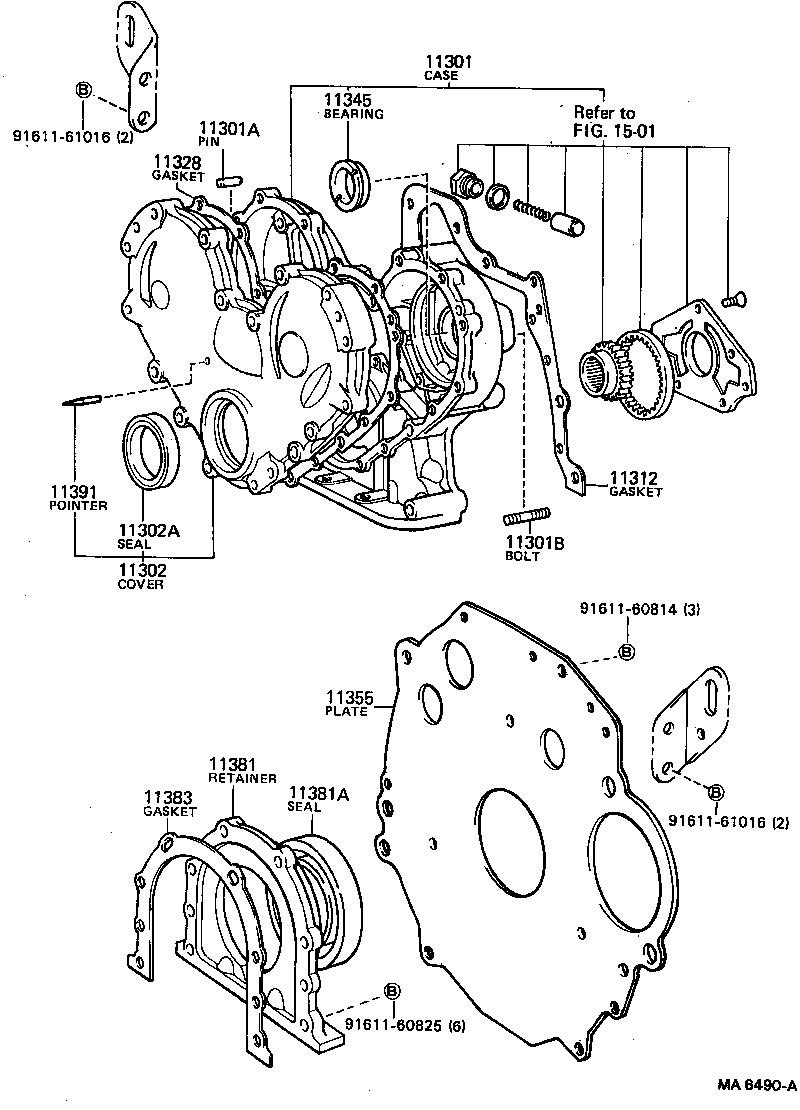

(8008- )B,2B,3B

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 11391 1501 9161160814 9161160825 9161161016 9161161016
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-56022

B..BU2#,30

 1
11301-56030

B,2B,3B..BU2#,3#,40

 1
11301-56020

B..BU2#,30

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,2B,3B..BU2#,3#,40

L=18,OD=8,L=18,OD=8

 2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10048

B,2B,3B..BU2#,3#,40

L=40,S=19&12

 3
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-56020

B..BU2#,30

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50002

B,2B,3B..BU2#,3#,40

 1
11312 - GASKET, FRONT END PLATE
11312-56020

B..BU2#,30

 1
11312-56030

B,2B,3B..BU2#,3#,40

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-56020

B..BU2#,30

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

B,2B,3B..BU2#,3#,40

 1
11355 - PLATE, REAR END
11355-56030

B..BU2#,30

 1
11355-56050

B,2B,3B..BU2#,3#,40

 1
11355-56051

B,2B,3B..BU2#,3#,40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-56020

B..BU2#,30

 1
11381-56030

B,2B,3B..BU2#,3#,40

 1
11381A - SEAL, ENGINE REAR OIL
90311-95001

B,2B,3B..BU2#,3#,40

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56030

B,2B,3B..BU2#,3#,40

 1
11383-56020

B..BU2#,30

 1
11391 - POINTER, TIMING
11391-56020

B,2B,3B..BU2#,3#,40

 1
Common parts
91611-60814
91611-60825
91611-61016
Linked diagrams
1501
