BU25LD-QRTU (1978)

Toyota Dyna

Production Mar 1978 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204-8408)

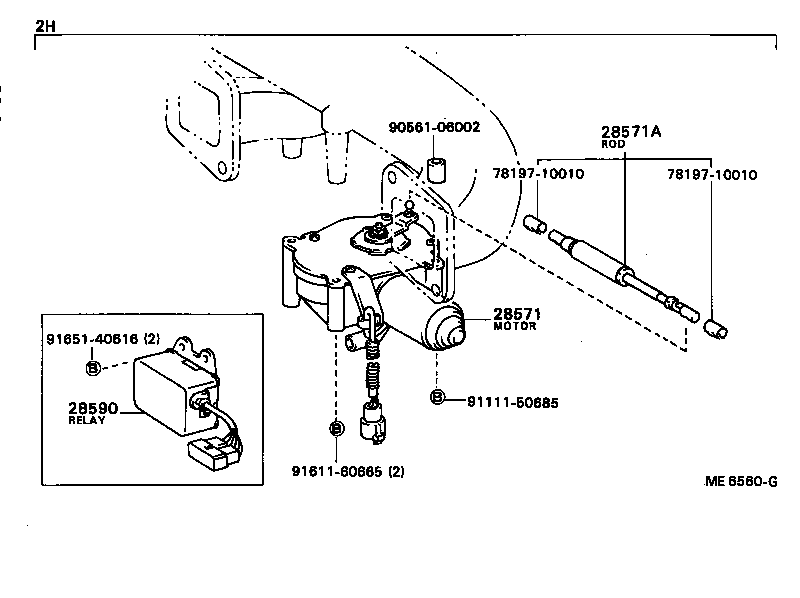

Click highlighted areas on diagram

diagram 28571 28571A 28590 7819710010 7819710010 9056106002 9111150685 9161160665 9165140616
Part # Description Qty Price
28571 - MOTOR, FUEL CONTROL
28571-56130

B..BU20..ST..EUR;B..BU20,25,30..LHD..5H..WT

24V

 1
28571-56120

B,2B,3B..BU2#,3#..(DMP,TR,V)..(ARL,GEN,GHI)

12V

 1
28571-56030

B..BU2#,30..ARL,GEN

12V

 1
28571A - ROD, FUEL CONTROL MOTOR
84580-36021

B,2B,3B..BU2#,3#..DMP,TR,V

 1
28590 - RELAY ASSY, FUEL CONTROL
28590-56021

B,H..BU2#,30,HU30..ARL,GEN

12V

 1
28590-56100

B..BU20..ST..EUR;B..BU20,25,30..LHD..5H..WT

24V

 1
28590-56090

B,H,2B,3B..BU2#,3#,HU30..(DMP,TR,V)..(ARL,GEN,GHI)

12V

 1
Common parts
78197-10010
90561-06002
91111-50685
91611-60665
91651-40616
