BU25LD-QRTU (1978)
Toyota Dyna
Production
Mar 1978
-
Aug 1984
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7803-8408)BU25,RU25

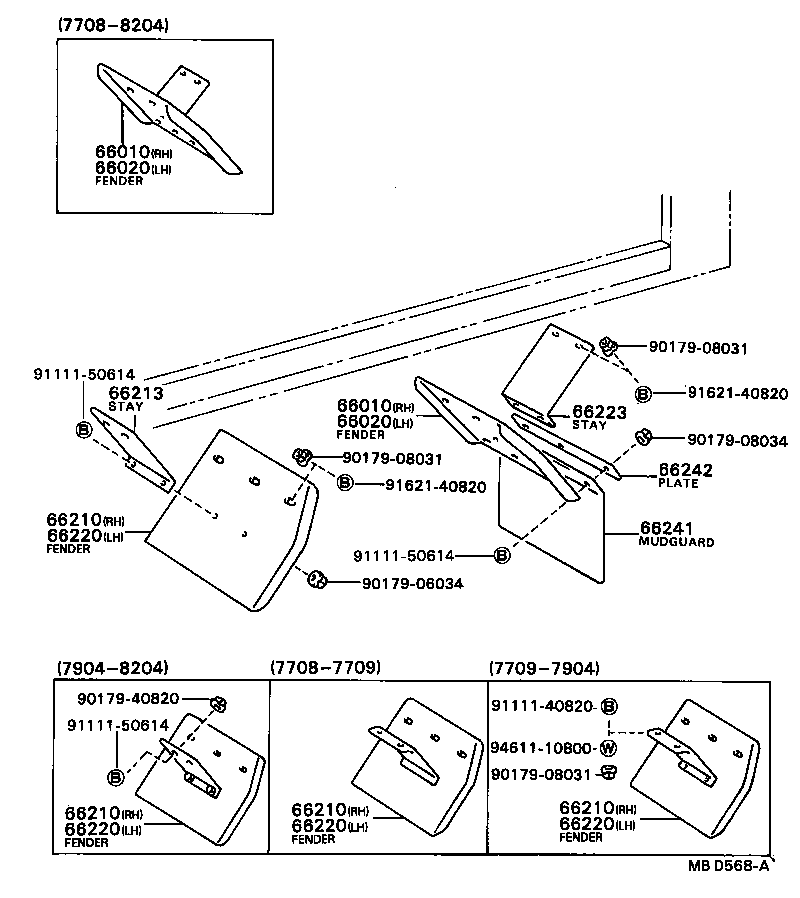

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66010 - FENDER ASSY, REAR BODY, REAR RH | ||||
| 66315-93102 |
BU25,RU25 |
1 | ||
| 66315-93104 |
BU25,RU25 |
1 | ||
| 66010 - FENDER ASSY, REAR BODY, REAR RH | ||||
| 66315-93102 |
BU25,RU25 |
1 | ||
| 66315-93104 |
BU25,RU25 |
1 | ||
| 66020 - FENDER ASSY, REAR BODY, REAR LH | ||||
| 66316-93104 |
BU25,RU25 |
1 | ||
| 66316-93102 |
BU25,RU25 |
1 | ||
| 66020 - FENDER ASSY, REAR BODY, REAR LH | ||||
| 66316-93104 |
BU25,RU25 |
1 | ||
| 66316-93102 |
BU25,RU25 |
1 | ||
| 66210 - FENDER ASSY, REAR BODY, FRONT RH | ||||
| 66311-93102 |
BU25,RU25 |
1 | ||
| 66311-93104 |
BU25,RU25 |
1 | ||
| 66210 - FENDER ASSY, REAR BODY, FRONT RH | ||||
| 66311-93102 |
BU25,RU25 |
1 | ||
| 66311-93104 |
BU25,RU25 |
1 | ||
| 66210 - FENDER ASSY, REAR BODY, FRONT RH | ||||
| 66311-93102 |
BU25,RU25 |
1 | ||
| 66311-93104 |
BU25,RU25 |
1 | ||
| 66210 - FENDER ASSY, REAR BODY, FRONT RH | ||||
| 66311-93102 |
BU25,RU25 |
1 | ||
| 66311-93104 |
BU25,RU25 |
1 | ||
| 66213 - STAY, REAR FENDER FRONT PLATE | ||||
| 66213-93100 |
BU25,RU25 |
2 | ||
| 66220 - FENDER ASSY, REAR BODY, FRONT LH | ||||
| 66312-93102 |
BU25,RU25 |
1 | ||
| 66312-93104 |
BU25,RU25 |
1 | ||
| 66220 - FENDER ASSY, REAR BODY, FRONT LH | ||||
| 66312-93102 |
BU25,RU25 |
1 | ||
| 66312-93104 |
BU25,RU25 |
1 | ||
| 66220 - FENDER ASSY, REAR BODY, FRONT LH | ||||
| 66312-93102 |
BU25,RU25 |
1 | ||
| 66312-93104 |
BU25,RU25 |
1 | ||
| 66220 - FENDER ASSY, REAR BODY, FRONT LH | ||||
| 66312-93102 |
BU25,RU25 |
1 | ||
| 66312-93104 |
BU25,RU25 |
1 | ||
| 66223 - STAY, REAR FENDER REAR PLATE | ||||
| 66213-93100 |
BU25,RU25 |
2 | ||
| 66241 - MUDGUARD, REAR | ||||
| 66331-93102 |
BU25,RU25 |
2 | ||
| 66331-93105 |
BU25,RU25 |
2 | ||
| 66242 - PLATE, REAR MUDGUARD SET RETAINER | ||||
| 66332-93102 |
BU25,RU25 |
2 | ||
| 66332-93103 |
BU25,RU25 |
2 | ||
| Common parts | ||||
| 90179-06034 | ||||
| 90179-08031 | ||||
| 90179-08034 | ||||
| 90179-40820 | ||||
| 91111-40820 | ||||
| 91111-50614 | ||||
| 91621-40820 | ||||
| 94611-10800 | ||||
