BU20R-QRBTQ (1979)

Toyota Dyna

Production Nov 1979 - Apr 1981
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8104)H..ARL

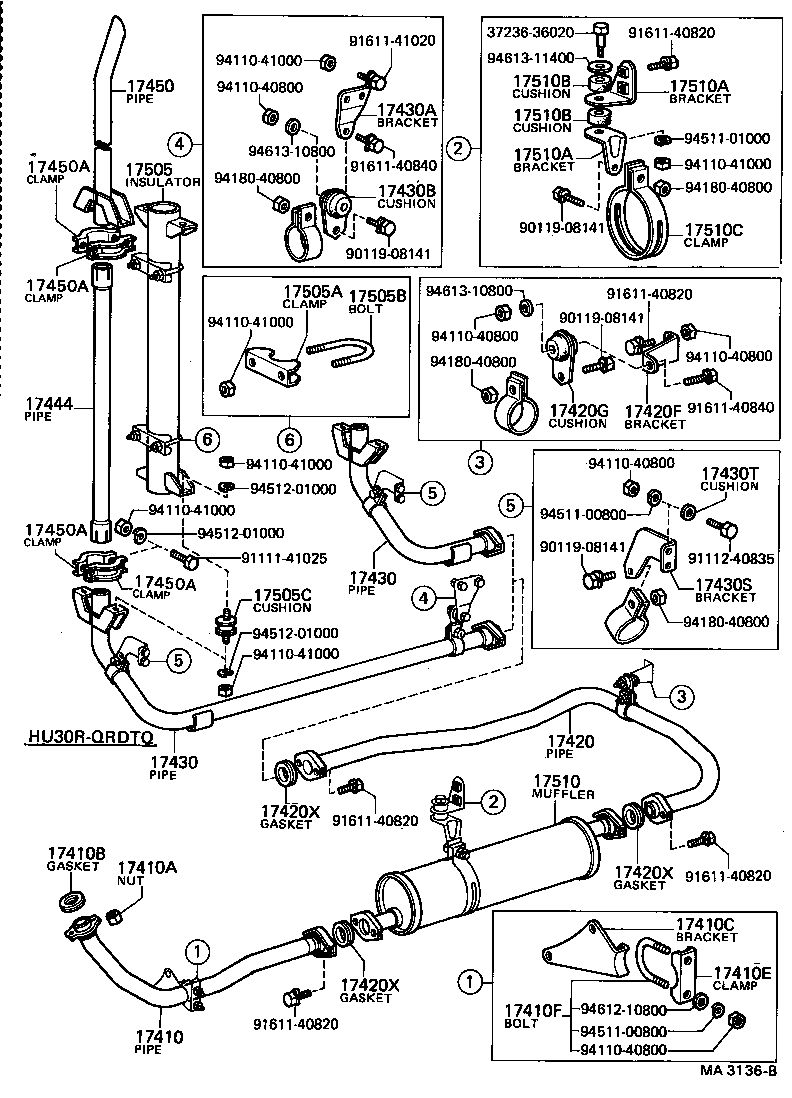

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17410F 17420 17420F 17420G 17420X 17420X 17420X 17430 17430 17430A 17430B 17430S 17430T 17444 17450 17450A 17450A 17450A 17450A 17505 17505A 17505B 17505C 17510 17510A 17510A 17510B 17510B 17510C 3723636020 9011908141 9011908141 9011908141 9011908141 9111141025 9111240835 9161140820 9161140820 9161140820 9161140820 9161140820 9161140840 9161140840 9161141020 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000 9411041000 9411041000 9411041000 9411041000 9411841000 9418040800 9418040800 9418040800 9418040800 9451100800 9451100800 9451101000 9451201000 9451201000 9451201000 9461210800 9461310800 9461310800 9461311400
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-56050

B..BU20..WT

 1
17410-56020

B..BU20,30..RHD..WT

W/EXHAUST BRAKE

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114

B,H..BU2#,30,HU30

 2
17410B - GASKET, EXHAUST PIPE
90917-06008

B..BU2#,30

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56010

B..BU2#,30

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04008

B..BU2#,30

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90118-08045

B..BU2#,30

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

B,5R..BU2#,RU2#..WT

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

B,5R..BU2#,RU2#..WT

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

B,5R..BU2#,RU2#..WT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56150

B..BU20..WT

 1
17430-56160

B..BU20..RHD..WT

W/EXHAUST BRAKE

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56150

B..BU20..WT

 1
17430-56160

B..BU20..RHD..WT

W/EXHAUST BRAKE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-56060

B..BU20..WT

FRAME SIDE

 1
17572-38040

B..BU20..RHD..WT

W/EXHAUST BRAKE

 1
17576-56010

B,2J,5R..BU2#,30,JU20,RU2#,30

MUFFLER SIDE

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-14001

B,2J,5R..BU2#,30,JU20,RU2#,30

 2
90917-08010

B..BU20..RHD..WT..CBU

W/EXHAUST BRAKE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-56070

B..BU20,30..WT

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004

B,2J,5R..BU2#,30,JU20,RU2#,30

 1
Common parts
37236-36020
90119-08141
91111-41025
91112-40835
91611-40820
91611-40840
91611-41020
94110-40800
94110-41000
94118-41000
94180-40800
94511-00800
94511-01000
94512-01000
94612-10800
94613-10800
94613-11400
