BU20R-QRBT3 (1977)
Toyota Dyna
(7708- )BU20..TS..WT ; (7708- )BU23,3#,HU30,RU20,30..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36120 |
BU23,25,3#,HU30,RU2#,30..WT |
1 | ||
| 48046-36120 |
BU20..TS..WT |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16065 |
BU20,RU20..WT L=255,W/DISTANCE PLATE,L=255 |
2 | ||
| 90118-16105 |
BU20,JU20,RU20..V L=240,W/CASTER WEDGE,L=240 |
4 | ||
| 90118-16065 |
BU20,30,RU20,30..WT L=255,L=255 |
4 | ||
| 90118-16164 |
BU20,RU20..WT L=245,L=245 |
4 | ||
| 90118-16060 |
BU20,RU20..V L=205,5-LEAF SPRING |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36120 |
BU23,25,3#,HU30,RU2#,30..WT |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36050 |
BU20,23,30,RU20,30..(T3,TW1)..WT |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36090 |
BU20,23,30,31,32,HU30,RU20,30..WT |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-36090 |
BU20,23,30,31,32,HU30,RU20,30..WT |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-36110 |
BU20,23,30,31,32,HU30,RU20,30..WT |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-36110 |
BU20,23,30,31,32,HU30,RU20,30..WT |
1 | ||
| 48418 - BRACKET, HELPER SPRING, FRONT RH | ||||
| 48418-36050 |
BU20,23,30,31,32,HU30,RU20,30..WT |
1 | ||
| 48419 - BRACKET, HELPER SPRING, FRONT LH | ||||
| 48418-36050 |
BU20,23,30,31,32,HU30,RU20,30..WT |
1 | ||
| 48428 - BRACKET, HELPER SPRING, REAR RH | ||||
| 48418-36050 |
BU20,23,30,31,32,HU30,RU20,30..WT |
1 | ||
| 48429 - BRACKET, HELPER SPRING, REAR LH | ||||
| 48418-36050 |
BU20,23,30,31,32,HU30,RU20,30..WT |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36020 |
BU20,30,HU30,RU20,30..WT |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36020 |
BU20,30,HU30,RU20,30..WT |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36020 |
BU2#,30,HU30,JU20,RU2#,30 |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
BU20..T3 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36040 |
BU23,3#,HU30,RU20,30 |
2 | ||
| 48481-36040 |
BU20..BUS;BU20..T1,T3,VSG,VSP |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39275 |
BU2#,30,HU30,RU2#,30..WT |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU23,25,3#,40,HU30,40,50,RU2#,30,WU40,50..WT |
2 | ||
| 90948-03003 |
BU20..TS..WT |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BU20..BUS;BU20..T1,T3,VSG,VSP |
2 | ||
| 90948-03003 |
BU2#,3#,HU30,JU20,RU2#,30 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU2#,3#,HU30,JU20,RU2#,30 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39275 |
BU2#,30,HU30,RU2#,30..WT |
1 | ||
| Common parts | ||||
| 90101-14003 | ||||
| 90101-14004 | ||||
| 90101-14006 | ||||
| 90170-16139 | ||||
| 91611-61030 | ||||
| 91656-60820 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94115-71400 | ||||
| 94512-01000 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||
| 94611-11001 | ||||
(7708-8008)ST ; (7907-8408)V ; (7911-8008)WT..EUR ; (8008- )TR,V..ST..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

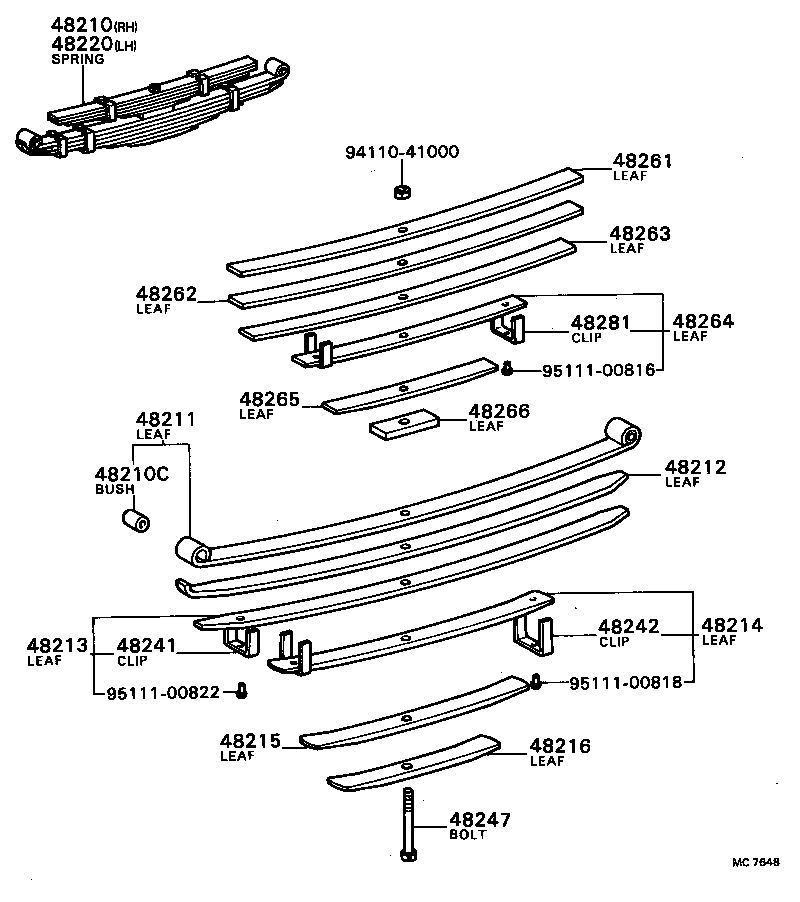

| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
BU20,RU20..V W/5-LEAF SPRING |
4 | ||
| 90389-16002 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 90389-16002 |
BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
BU20,RU20..V W/5-LEAF SPRING |
4 | ||
| 90389-16002 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 90389-16002 |
BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48204-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48204-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
2 | ||
| 48242-36190 |
BU2#,30,HU30,RU2#,30..WT |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
2 | ||
| 48242-36190 |
BU2#,30,HU30,RU2#,30..WT |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-36190 |
BU2#,30,HU30,RU2#,30..WT |
4 | ||
| 48241-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-36190 |
BU2#,30,HU30,RU2#,30..WT |
4 | ||
| 48241-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 95111-01018 | ||||
| 95111-01019 | ||||
| 95111-01020 | ||||
| 95111-01024 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
BU20,RU20..V W/5-LEAF SPRING |
4 | ||
| 90389-16002 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 90389-16002 |
BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
BU20,RU20..V W/5-LEAF SPRING |
4 | ||
| 90389-16002 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 90389-16002 |
BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
BU20,RU20..V W/5-LEAF SPRING |
4 | ||
| 90389-16002 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 90389-16002 |
BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48204-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48204-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48204-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
2 | ||
| 48242-36190 |
BU2#,30,HU30,RU2#,30..WT |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
2 | ||
| 48242-36190 |
BU2#,30,HU30,RU2#,30..WT |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
2 | ||
| 48242-36190 |
BU2#,30,HU30,RU2#,30..WT |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-36190 |
BU2#,30,HU30,RU2#,30..WT |
4 | ||
| 48241-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-36190 |
BU2#,30,HU30,RU2#,30..WT |
4 | ||
| 48241-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-36190 |
BU2#,30,HU30,RU2#,30..WT |
4 | ||
| 48241-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48281 - CLIP, REAR HELPER SPRING, NO.1 | ||||
| 48242-36190 |
BU20,RU20..WT 10-LEAF SPRING |
4 | ||
| 48281 - CLIP, REAR HELPER SPRING, NO.1 | ||||
| 48242-36190 |
BU20,RU20..WT 10-LEAF SPRING |
4 | ||
| 48281 - CLIP, REAR HELPER SPRING, NO.1 | ||||
| 48242-36190 |
BU20,RU20..WT 10-LEAF SPRING |
4 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00822 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
BU20,RU20..V W/5-LEAF SPRING |
4 | ||
| 90389-16002 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 90389-16002 |
BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
BU20,RU20..V W/5-LEAF SPRING |
4 | ||
| 90389-16002 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 90389-16002 |
BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48204-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48204-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
2 | ||
| 48242-36190 |
BU2#,30,HU30,RU2#,30..WT |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
2 | ||
| 48242-36190 |
BU2#,30,HU30,RU2#,30..WT |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-36190 |
BU2#,30,HU30,RU2#,30..WT |
4 | ||
| 48241-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-36190 |
BU2#,30,HU30,RU2#,30..WT |
4 | ||
| 48241-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48281 - CLIP, REAR HELPER SPRING, NO.1 | ||||
| 48242-36190 |
BU20,RU20..WT 10-LEAF SPRING |
4 | ||
| 48281 - CLIP, REAR HELPER SPRING, NO.1 | ||||
| 48242-36190 |
BU20,RU20..WT 10-LEAF SPRING |
4 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00822 | ||||
(7910- )BU20,RU20..TS..WT..GEN ; (8207-8408)RU20..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
BU20,RU20..V W/5-LEAF SPRING |
4 | ||
| 90389-16002 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 90389-16002 |
BU25,3#,HU30,RU25;BU20,RU20,30..(TR,V)..(ARL,GEN) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48204-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36190 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48210-36311 |
BU20,RU20..V 5-LEAF,5-LEAF SPRING |
1 | ||
| 48210-36191 |
BU20,RU20..WT 10-LEAF SPRING |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
2 | ||
| 48242-36190 |
BU2#,30,HU30,RU2#,30..WT |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-36190 |
BU2#,30,HU30,RU2#,30..WT |
4 | ||
| 48241-36190 |
BU25,30,HU30,RU25;BU20,RU20,30..WT..(ARL,GEN) |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36270 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48219-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36190 |
BU20,RU20..WT 10-LEAF SPRING |
2 | ||
| 48281 - CLIP, REAR HELPER SPRING, NO.1 | ||||
| 48242-36190 |
BU20,RU20..WT 10-LEAF SPRING |
4 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00822 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
