BU20R-QRBT3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)B..BU20,30..GEN

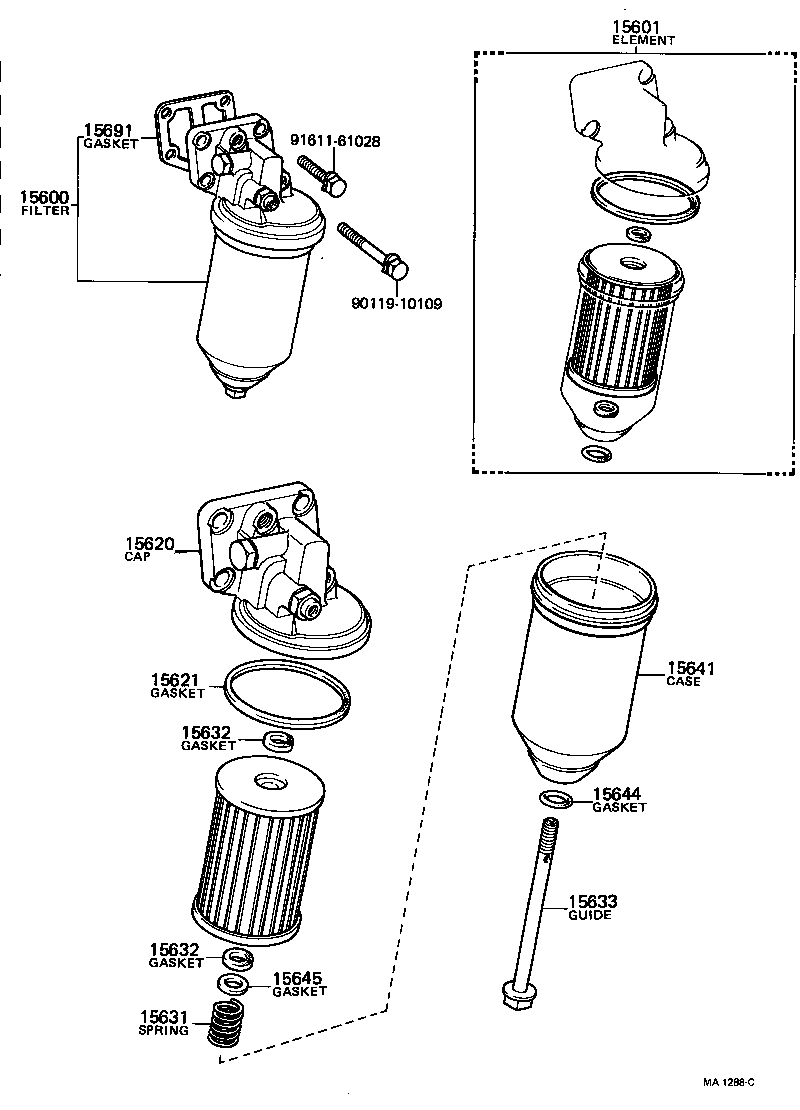

Click highlighted areas on diagram

diagram 15600 15601 15620 15621 15631 15632 15632 15633 15641 15644 15645 15691 9011910109 9161161028
Part # Description Qty Price
15600 - FILTER ASSY, OIL
15600-56060

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15600-59016

B..BU20,30..GEN

ELEMENT TYPE

 1
15601 - FILTER SUB-ASSY, OIL
15600-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
04152-46011

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15620 - CAP ASSY, OIL FILTER
15620-56060

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15621 - GASKET, OIL FILTER BODY
15621-60030

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15621-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
15631 - SPRING, OIL FILTER ELEMENT SUPPORT
15631-21010

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 2
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 2
15633 - GUIDE, OIL FILTER CARTRIDGE
15633-48010

B..BU20,30..GEN

 1
15633-47040

2B..BU31..IV3;B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15641 - CASE, OIL FILTER
15641-48010

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15644 - GASKET, OIL FILTER CARTRIDGE GUIDE
15644-60010

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15645 - WASHER, OIL FILTER CARTRIDGE GUIDE
90099-01093

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15691 - GASKET, OIL FILTER
15691-56020

B..BU2#,30

 1
Common parts
90119-10109
91611-61028

(7708-8104)H

Click highlighted areas on diagram

diagram 15600 15601 15620 15621 15631 15632 15632 15633 15641 15644 15645 15691 9161160825 9161160860
Part # Description Qty Price
15600 - FILTER ASSY, OIL
15600-56060

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15600-59016

B..BU20,30..GEN

ELEMENT TYPE

 1
15601 - FILTER SUB-ASSY, OIL
15600-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
04152-46011

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15620 - CAP ASSY, OIL FILTER
15620-56060

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15621 - GASKET, OIL FILTER BODY
15621-60030

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15621-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
15631 - SPRING, OIL FILTER ELEMENT SUPPORT
15631-21010

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 2
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 2
15633 - GUIDE, OIL FILTER CARTRIDGE
15633-48010

B..BU20,30..GEN

 1
15633-47040

2B..BU31..IV3;B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15641 - CASE, OIL FILTER
15641-48010

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15644 - GASKET, OIL FILTER CARTRIDGE GUIDE
15644-60010

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15645 - WASHER, OIL FILTER CARTRIDGE GUIDE
90099-01093

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15691 - GASKET, OIL FILTER
15691-56020

B..BU2#,30

 1
Common parts
91611-60825
91611-60860

(7708-8008)B

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9011910109 9161161028
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
04152-46011

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-56020

B..BU2#,30

CARTRIDGE

 1
15621 - GASKET, OIL FILTER BODY
15621-60030

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15621-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
15691 - GASKET, OIL FILTER
15691-56020

B..BU2#,30

 1
Common parts
90119-10109
91611-61028

(8008- )B,2B,3B

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9004119257 9011910278 9161161028
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
04152-46011

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-56020

B..BU2#,30

CARTRIDGE

 1
15621 - GASKET, OIL FILTER BODY
15621-60030

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15621-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
15691 - GASKET, OIL FILTER
15691-56020

B..BU2#,30

 1
Common parts
90041-19257
90119-10278
91611-61028

(8008-8204)B,3B..GEN,GHI ; (8204- )B,3B..BU2#,30,40..GEN,GHI

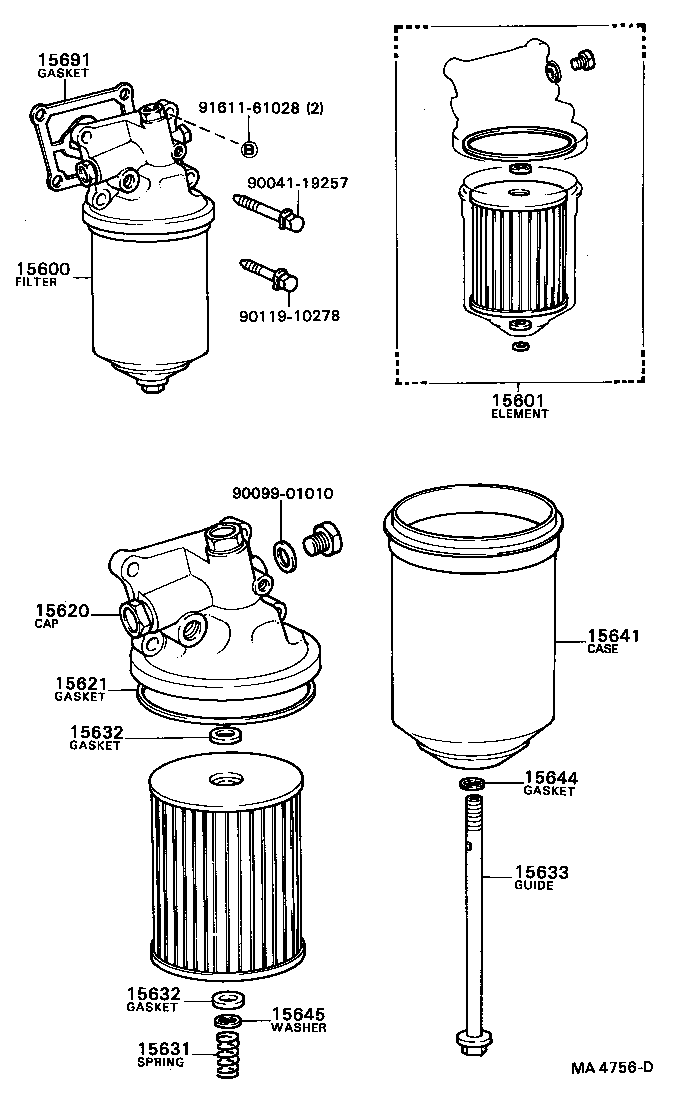

Click highlighted areas on diagram

diagram 15600 15601 15620 15621 15631 15632 15632 15633 15641 15644 15645 15691 9004119257 9009901010 9011910278 9161161028
Part # Description Qty Price
15600 - FILTER ASSY, OIL
15600-56060

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15600-59016

B..BU20,30..GEN

ELEMENT TYPE

 1
15601 - FILTER SUB-ASSY, OIL
15600-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
04152-46011

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15620 - CAP ASSY, OIL FILTER
15620-56060

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15621 - GASKET, OIL FILTER BODY
15621-60030

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15621-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
15631 - SPRING, OIL FILTER ELEMENT SUPPORT
15631-21010

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 2
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 2
15633 - GUIDE, OIL FILTER CARTRIDGE
15633-48010

B..BU20,30..GEN

 1
15633-47040

2B..BU31..IV3;B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15641 - CASE, OIL FILTER
15641-48010

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15644 - GASKET, OIL FILTER CARTRIDGE GUIDE
15644-60010

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15645 - WASHER, OIL FILTER CARTRIDGE GUIDE
90099-01093

B,3B..BU2#,30,32..GEN,GHI

ELEMENT TYPE

 1
15691 - GASKET, OIL FILTER
15691-56020

B..BU2#,30

 1
Common parts
90041-19257
90099-01010
90119-10278
91611-61028
