BU20R-QRB3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)RU20..T3 ; (7708-8408)BU20,HU30,JU20,RU30..T3,TW1..TS

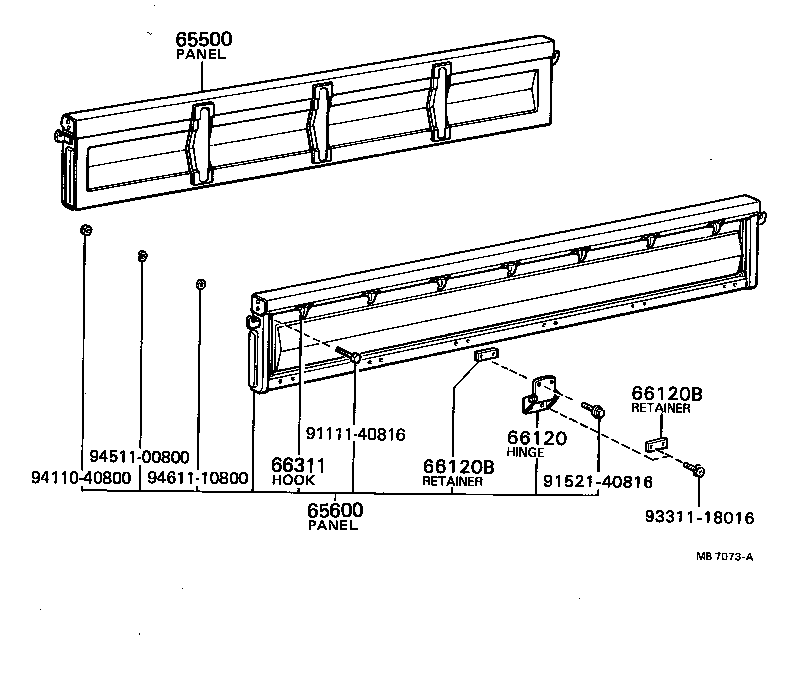

Click highlighted areas on diagram

diagram 65500 65600 66120 66120B 66120B 66311 9111140816 9152140816 9331118016 9411040800 9451100800 9461110800
Part # Description Qty Price
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95409

BU20,JU20,RU20..T3

 1
66120 - HINGE ASSY, SIDE GATE
66110-95409

BU20,JU20,RU20..T3

3RD,4TH

 4
66110-95407

BU20,JU20,RU20..T3

1ST,2ND,5TH,6TH

 8
66120B - RETAINER, SIDE GATE HINGE, LOWER
66115-95012

BU20,JU20,RU20..T3

30X70

 8
66115-95402

BU20,JU20,RU20..T3

80X22

 12
66120B - RETAINER, SIDE GATE HINGE, LOWER
66115-95012

BU20,JU20,RU20..T3

30X70

 8
66115-95402

BU20,JU20,RU20..T3

80X22

 12
66311 - HOOK, ROPE
66311-95400

BU20,JU20,RU20..T1,T3

 14
Common parts
91111-40816
91521-40816
93311-18016
94110-40800
94511-00800
94611-10800
